Delta VFD-V Series User Manual

VFD-V Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-36
5.5 Group 04: Multi-Step Speed and Process Control Operation (PCO)
04-00 The 1
st
Step Speed
a
Factory setting 0.00
04-01 The 2
nd
Step Speed
a
Factory setting 0.00
04-02 The 3
rd
Step Speed
a
Factory setting 0.00
04-03 The 4
th
Step Speed
a
Factory setting 0.00
04-04 The 5
th
Step Speed
a
Factory setting 0.00
04-05 The 6
th
Step Speed
a
Factory setting 0.00
04-06 The 7
th
Step Speed
a
Factory setting 0.00
04-07 The 8
th
Step Speed
a
Factory setting 0.00
04-08 The 9
th
Step Speed
a
Factory setting 0.00
04-09 The 10
th
Step Speed
a
Factory setting 0.00
04-10 The 11
th
Step Speed
a
Factory setting 0.00
04-11 The 12
th
Step Speed
a
Factory setting 0.00
04-12 The 13
th
Step Speed
a
Factory setting 0.00
04-13 The 14
th
Step Speed
a
Factory setting 0.00
04-14 The 15
th
Step Speed
a
Factory setting 0.00
Settings 0.00~400.00Hz
 The multi-function input terminals (refer to Pr. 02-01 to 02-06) are used to select one of
the AC drive Multi-Step Speeds above. These speeds may also be used in conjunction
with Pr. 04-15 - 04-32 to run the process control operation.
04-05
Frequency
Master Speed
04-00
04-01
04-02
04-03
04-04
04-06
04-07
04-08
04-09
04-10
04-11
04-12
04-13
04-14
01-22
JOG Freq.
234 56789101112131415
OFF
OFF
OFF
OFF
OFF
ON
ON
ON
ON
ON
ON
ON ON ON
ON
ON
ON
ON
ON ON
ON
Run Signal
2nd step speed
Multi-function Terminal
Pr.02-01 to Pr.02-06
(Mi1 to MI6 2)
1st step speed
Multi-function Terminal
Pr.02-01 to Pr.02-06
(Mi1 to MI6 1)
3rd step speed
Multi-function Terminal
Pr.02-01 to Pr.02-06
(MI1 to MI6 3)
4th step speed
Multi-function Terminal
Pr.02-01 to Pr.02-06
(MI1 to MI6 4)
Jog Freq.

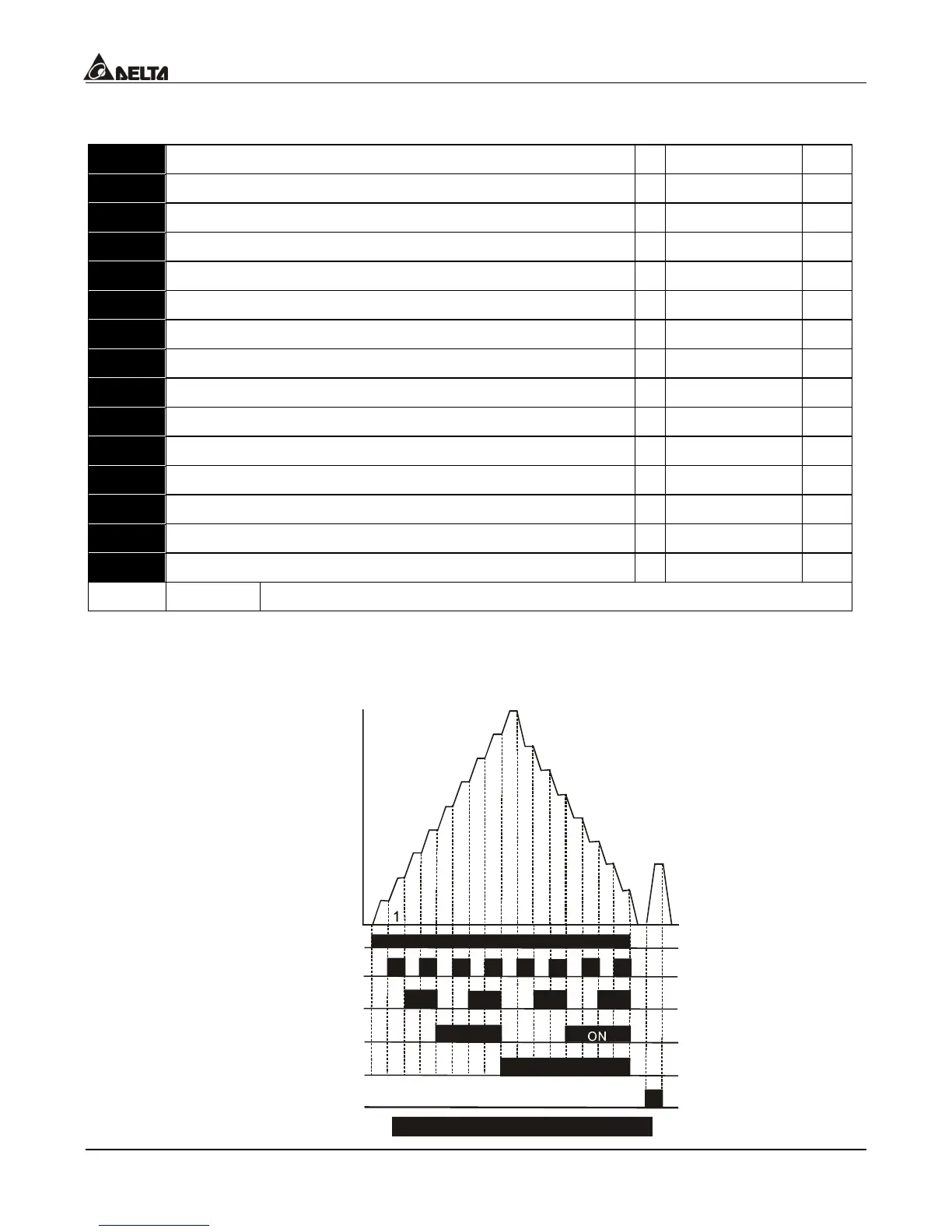

Multi-Step Speed via External Terminals
