- 115
-
W
ater T
emperature Sender
Remove & Install W
ater T
emperature
Sender

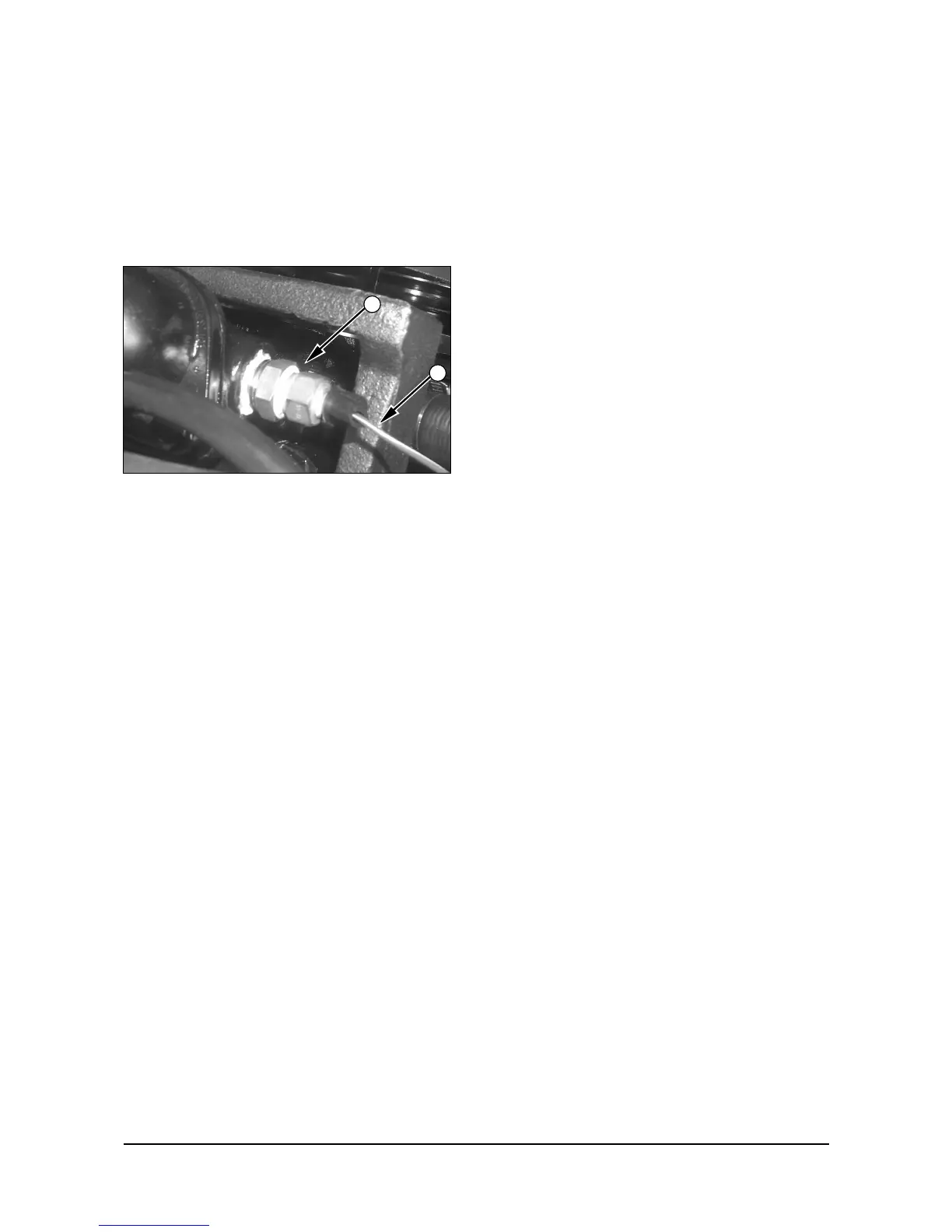

1.
Disconnect one wire connection (1).
2.
Remove water temperature sender (2).
NOTE:
For the installation of the water temperature
sender
, reverse the removal steps.
3.
Use thread sealant on the water temperature
sender threads.
2
1
LP
Engine G430
(3.0L)
Cooling System
115
