Doosan GC25P-3 User Manual

- 117 -

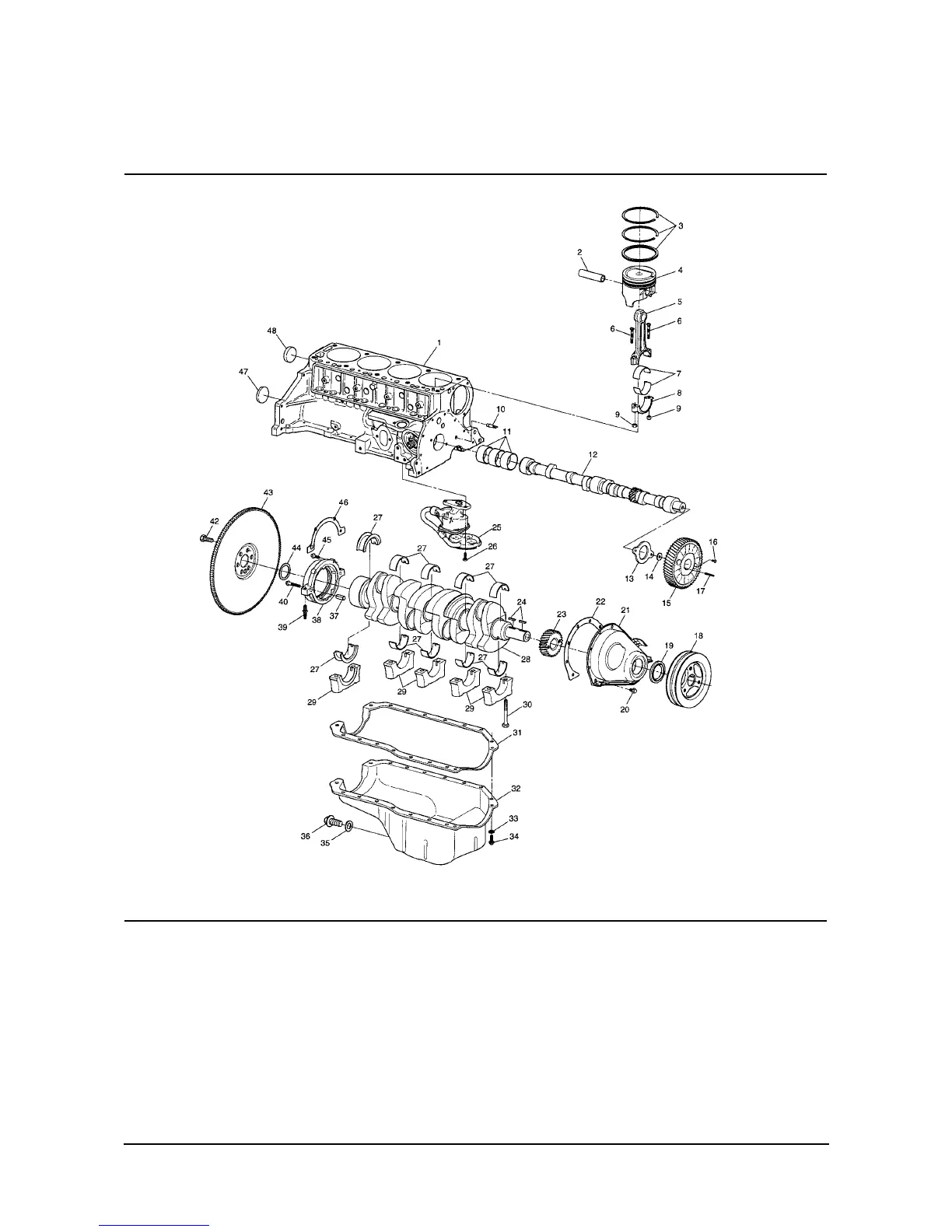

(1) Engine Block. (2) Piston Pin. (3) Piston Ring Kit. (4) Piston. (5) Connecting Rod. (6) Connecting Rod Bolt.
(7) Connecting Rod Bearing Kit. (8) Connecting Rod Cap. (9) Connecting Rod Nut. (10) Oil Nozzle. (11) Camshaft Bearings.
(12) Camshaft. (13) Camshaft Retainer. (14) Camshaft Retainer Washer. (15) Camshaft Sprocket. (16) Camshaft Retainer Bolt.
(17) Camshaft Woodruff Key. (18) Crankshaft Pulley. (19) Engine Front Cover Seal. (20) Engine Front Cover Bolt. (21) Engine Front Cover.
(22) Engine Front Cover Gasket. (23) Crankshaft Sprocket. (24) Crankshaft Keyway. (25) Oil Pump. (26) Oil Pump Bolt.
(27) Crankshaft Bearing Kit. (28) Crankshaft. (29) Crankshaft Bearing Cap. (30) Crankshaft Bearing Cap Bolt. (31) Oil Pan Gasket.
(32) Oil Pan. (33) Oil Pan Washer. (34) Oil Pan Bolt. (35) Oil Drain Plug Washer. (36) Oil Drain Plug.
(37) Crankshaft Rear Oil Seal Housing Pin. (38) Crankshaft Rear Oil Seal Housing. (39) Crankshaft Rear Oil Seal Housing Stud.
(40) Crankshaft Rear Oil Seal Housing Bolt. (42) Engine Flywheel Bolt. (43) Engine Flywheel. (44) Crankshaft Rear Oil Seal.
(45) Crankshaft Rear Oil Seal Housing Bolt. (46) Crankshaft Rear Oil Seal Housing Gasket. (47) Camshaft Rear Bearing Hole Plug.
(48) Engine Block Core Plug.
VE002-3L
Disassembled View (2 Of 4)
LP Engine G430(3.0L) Base Engine Service Procedure
