- 162 -
LP Engine G430(3.0L) Base Engine Service Procedure
Rocker Arm Stud Removal and
Installation
Tools Required
• J 5802-01 Rocker Arm Stud Remover
• J 6880 Rocker Arm Stud Installer
Rocker arm studs with damaged threads or with loose
fit in cylinder head should be replaced with new,
oversize studs.

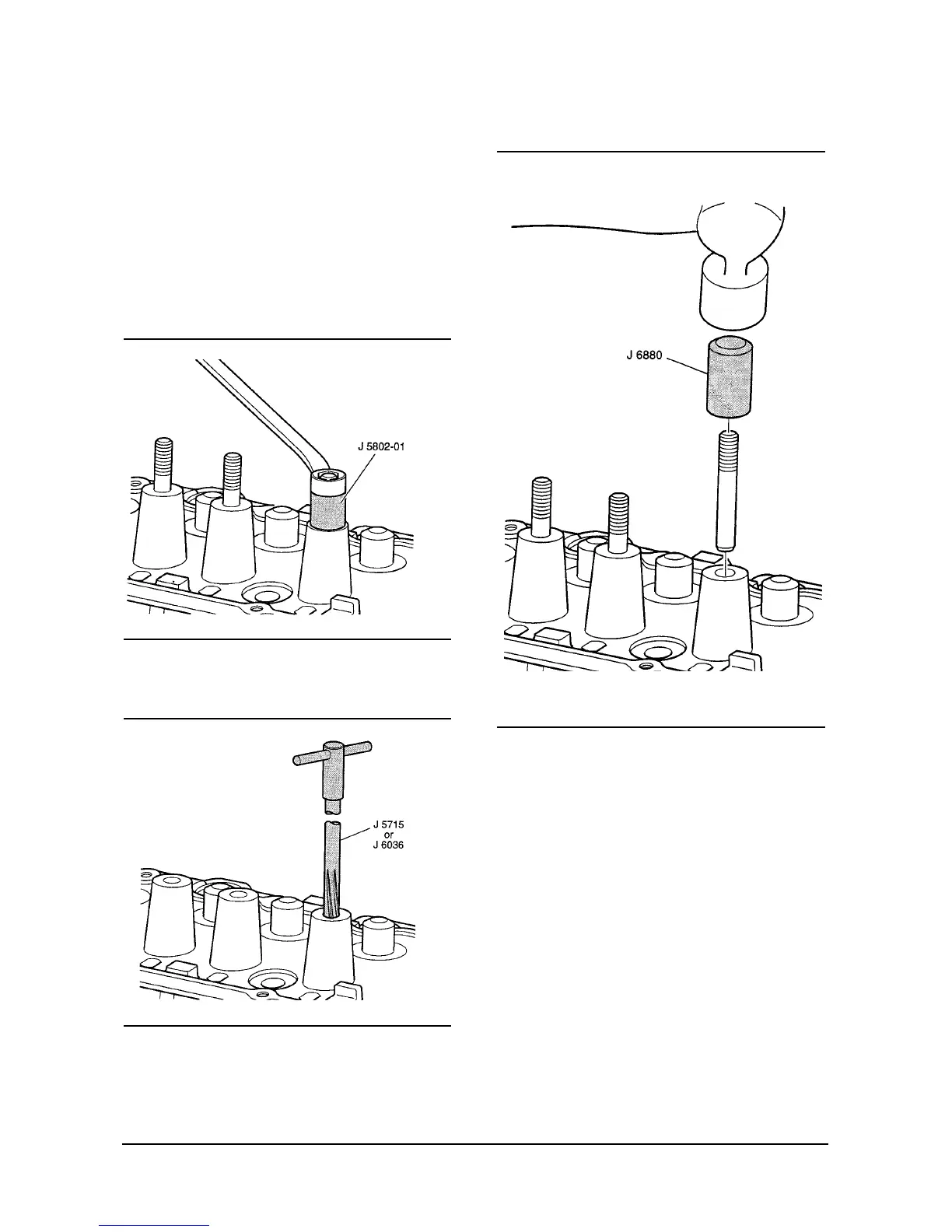

1. Remove the old stud by placing J 5802-01 over the
stud, installing nut and flat washer and removing the
stud by turning out.
2. Ream the hole for the oversize stud.
IMPORTANT:
Do not attempt to install an oversize stud
without reaming the stud hole.
3. Coat the press-fit area of the stud with Perfect Seal.
4. Install the new stud, using J 6880 as a guide.
VE102-3L
VE101-3L
VE100-3L
