- 131 -
LP Engine G430(3.0L) Base Engine Service Procedure

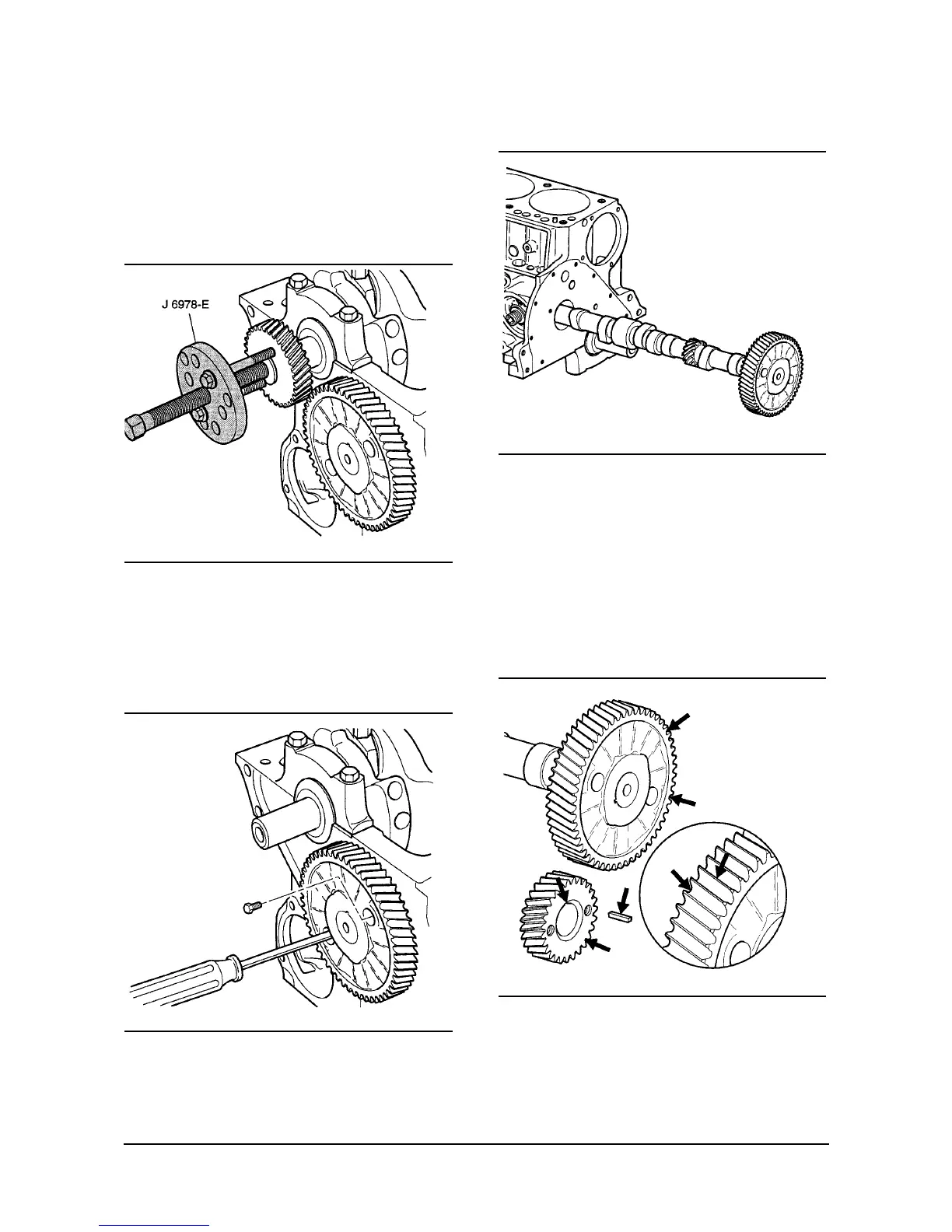

Crankshaft Sprocket Removal
Tools Required
• J 6978-E Crankshaft Sprocket Puller
1. Use the J 6978-E in order to remove the crankshaft
sprocket.
2. If necessary, remove the crankshaft keys.
Camshaft Removal
1. Remove the two camshaft retainer bolts, working
through the holes in the camshaft sprocket.
IMPORTANT: All camshaft journals are the same
diameter, so care must be used in removing the
camshaft to avoid damage to the bearings.
2. Carefully rotate and pull the camshaft out of the
bearings.
Crankshaft and Camshaft
Sprocket Inspect
• The camshaft and crankshaft sprockets for wear.
• One edge of worn teeth or that are no longer
concentric.
• The valley between worn teeth.
• The keys and crankshaft keyways for wear.
VE126-3L
VE125-3L
VE035-3L
VE034-3L
