Doosan GC25P-3 User Manual

- 116 -
LP Engine G430(3.0L) Base Engine Service Procedure

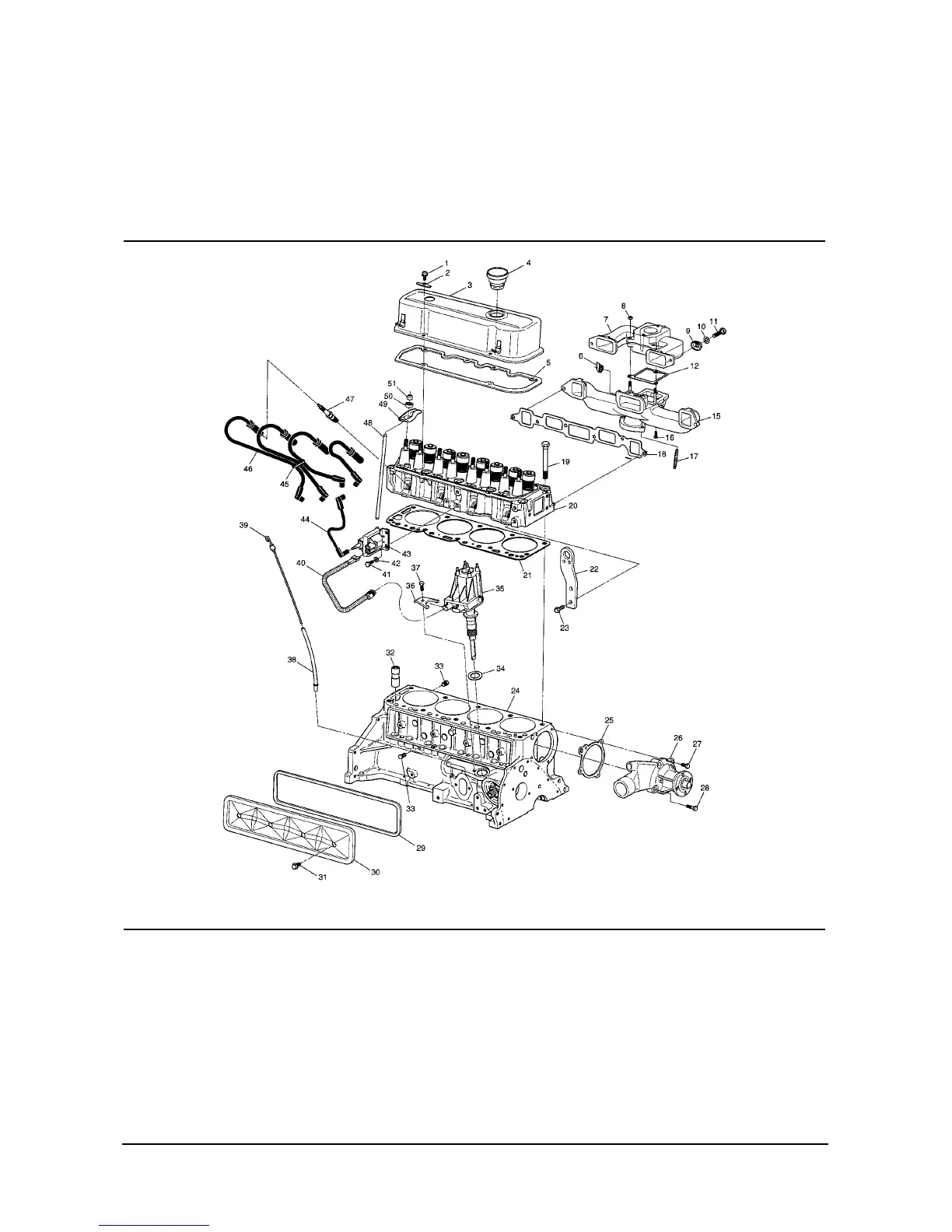

(1) Valve Rocker Arm Cover Bolt. (2) Valve Rocker Arm Cover Reinforcement. (3) Valve Rocker Arm Cover. (4) Oil Filler Cap.
(5) Valve Rocker Arm Cover Gasket. (6) Efe Valve Thermostat. (7) Intake Manifold. (8) Intake Manifold Nut. (9) Intake/Exhaust Manifold Clamp.
(10) Intake/Exhaust Manifold Washer. (11) Intake/Exhaust Manifold Bolt. (12) Intake/Exhaust Manifold Gasket. (15) Exhaust Manifold.
(16) Intake/Exhaust Manifold Bolt. (17) Exhaust Manifold Stud. (18) Intake/Exhaust Manifold Gasket. (19) Cylinder Head Bolt.
(20) Cylinder Head. (21) Cylinder Head Gasket. (22) Lift Bracket. (23) Lift Bracket Bolt. (24) Engine Block. (25) Water Pump Gasket.
(26) Water Pump. (27) Water Pump Bolt. (28) Water Pump Bolt. (29) Pushrod Cover Gasket. (30) Pushrod Cover.
(31) Pushrod Cover Bolt. (32) Valve Lifter. (33) Engine Block Coolant Plug. (34) Distributor Gasket. (35) Distributor.
(36) Distributor Hold Down. (37) Distributor Hold Down Bolt. (38) Oil Level Indicator Tube. (39) Oil Level Indicator.
(40) Primary Ignition Harness. (41) Ignition Coil Bolt. (42) Ignition Coil Washer. (43) Ignition Coil. (44) Ignition Coil Wire.
(45) Spark Plug Wire Retainer. (46) Spark Plug Wire Harness. (47) Spark Plug. (48) Valve Pushrod. (49) Valve Rocker Arm.
(50) Valve Rocker Arm Ball. (51) Valve Rocker Arm Nut.
VE001-3L
BASE ENGINE SERVICE PROCEDURE
Disassembled View (1 of 4)
