- 177
-

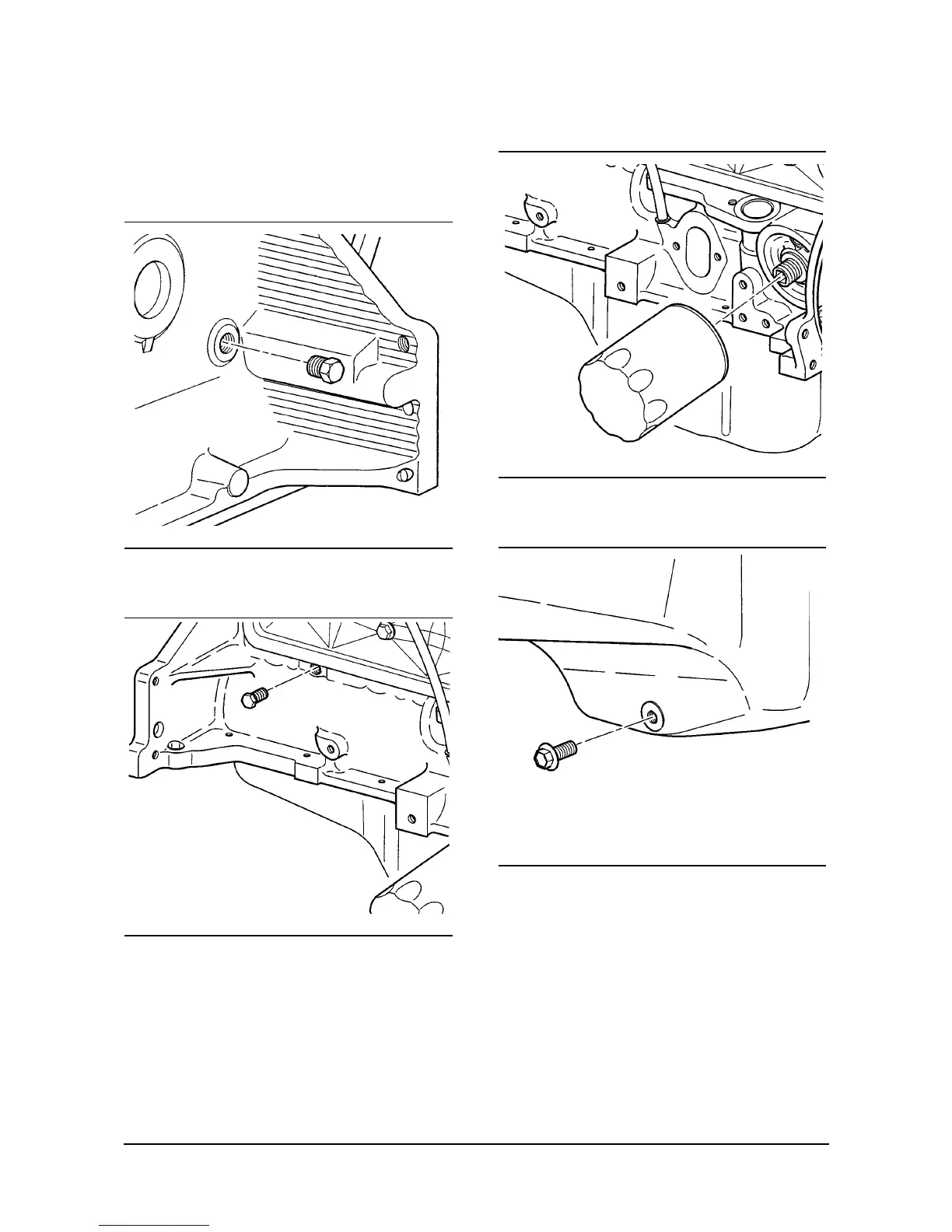

Engine Block Coolant Plug/Oil
Filter Installation
1.
Install the left rear engine block coolant plug.
2.
Install the right rear engine block coolant plug.
3.
Install the oil filter
.
4.
Install the oil pan drain plug.
VE005-3L
VE006-3L
VE007-3L
VE008-3L
LP
Engine G430
(3.0L)
Base Engine Service Procedure
177
