6.2 Electrical Connection
The LMI 02 is connected with a plug-in type screw terminal. The area of the mains voltage
connections is physically separate from the low-tension signals.
6.2.1 Connection plan

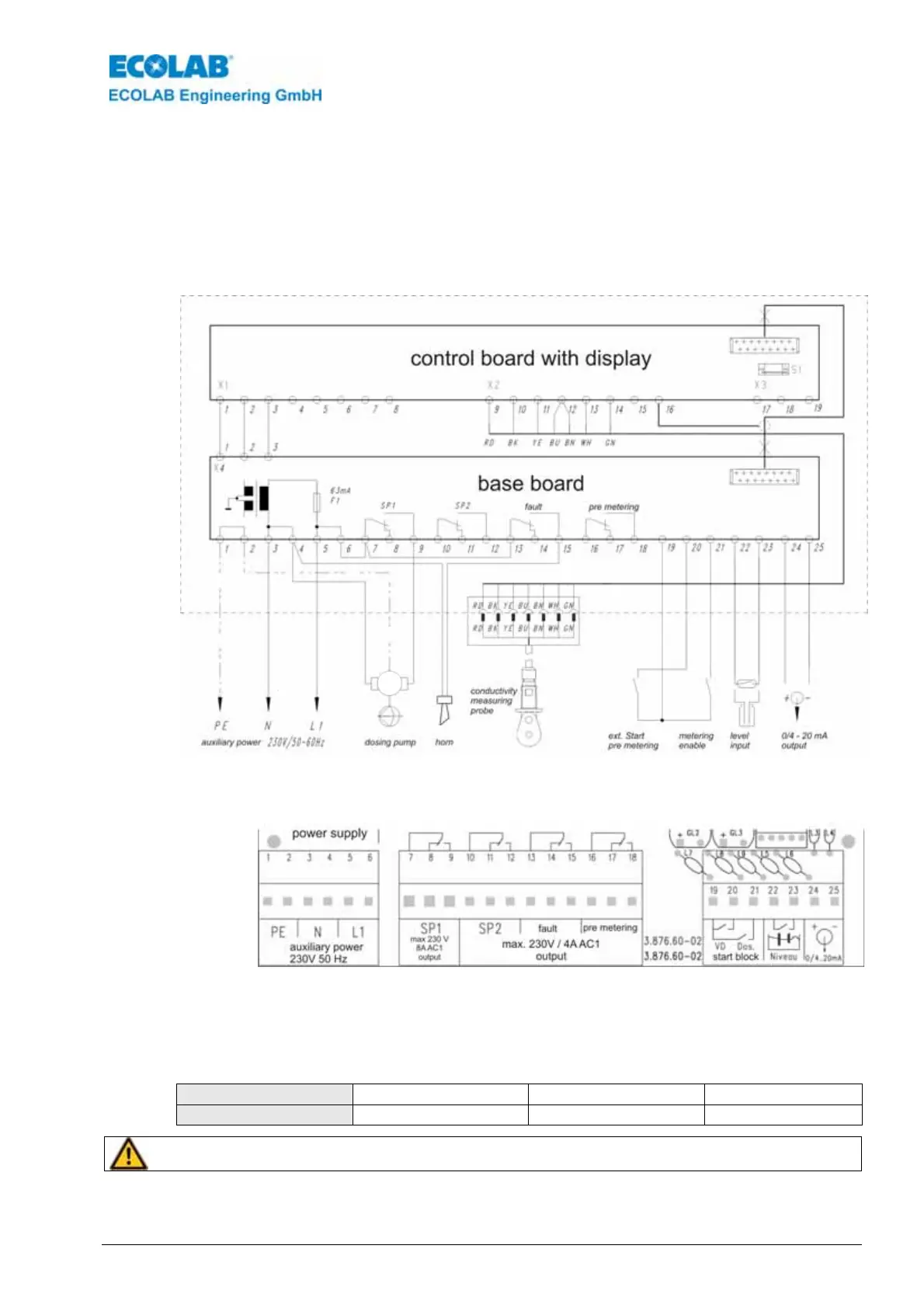

fig 6.4
6.2.2 Terminal plan
fig 6.5
6.2.3 Auxiliary power connection
Depending upon the model, the LMI 02 can be o
perated with three different types of supply
voltage.
Item no. 187601 187602 187603
Auxiliary power 230 V / 50-60 Hz 115 V / 50-60 Hz 24 V / 50-60 Hz
CAUTION
All versions of the instrument with mains voltage must have a protective conductor
connected. The guidelines of the local Electricity Board must also be complied with.
