417102012_LMI02.doc - 69 - Rev. 9-07.08

7.1.2 Displays during operation

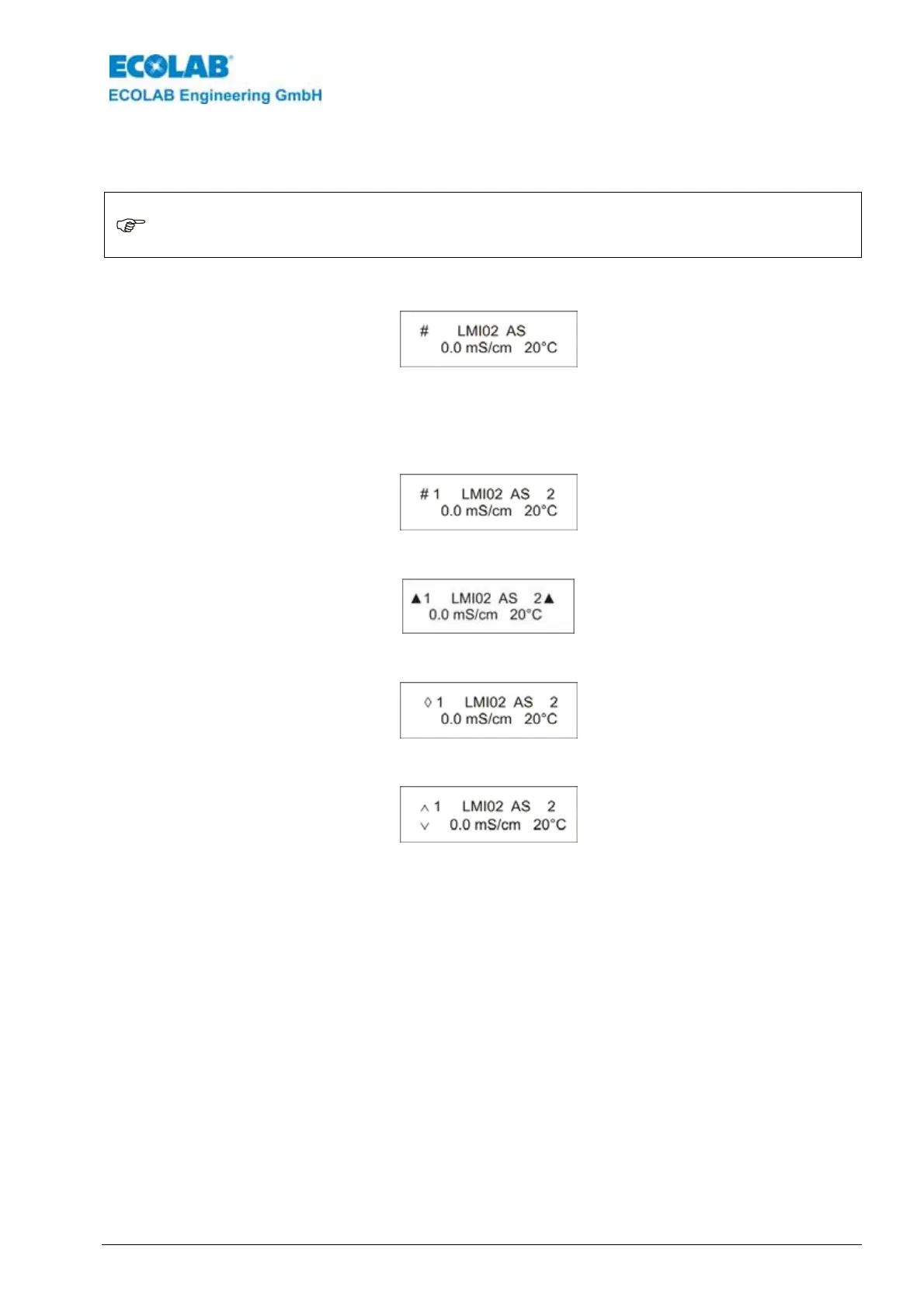

7.1.2.1 Displays in AS mode (priming mode)

NOTE

The conductivity display flashes for conductivity values > 200mS/cm (conductivity value

is outside the selected limit of rated value.

If the conductivity and temperature measuring ranges are exceeded, this is indicated by

flashing bars ( - - - )

Without activation of limit values for SP1 and SP2 (for concentration setting “OFF”) and for

open metering enable contact (SP1 is blocked).

The activation of limit values SP1 and/or SP2 is displayed with the respective number (SP1

above left, SP2 above right)

The hash symbol (#) indicates that SP1 has been blocked with the help of metering enable

input (open contact). SP1 is released when metering enable contact is switched off and the

hash symbol ((#) is no longer displayed.

The switching on of relay SP1/SP2 is indicated by a triangle (▲) before or behind the

respective number.

If the pre-metering is activated, a rhombus is displayed instead of the hash symbol (#), or a

triangle (▲) (depending upon the configuration) during the pre-metering period.

If a pre-metering delay time has been set, an upward arrow ٨ and a downward arrow ٧ is

displayed instead of the rhombus (◊) for the duration of the delay time.
