Ecolab LMI 02 User Manual

417102012_LMI02.doc - 84 - Rev. 9-07.08

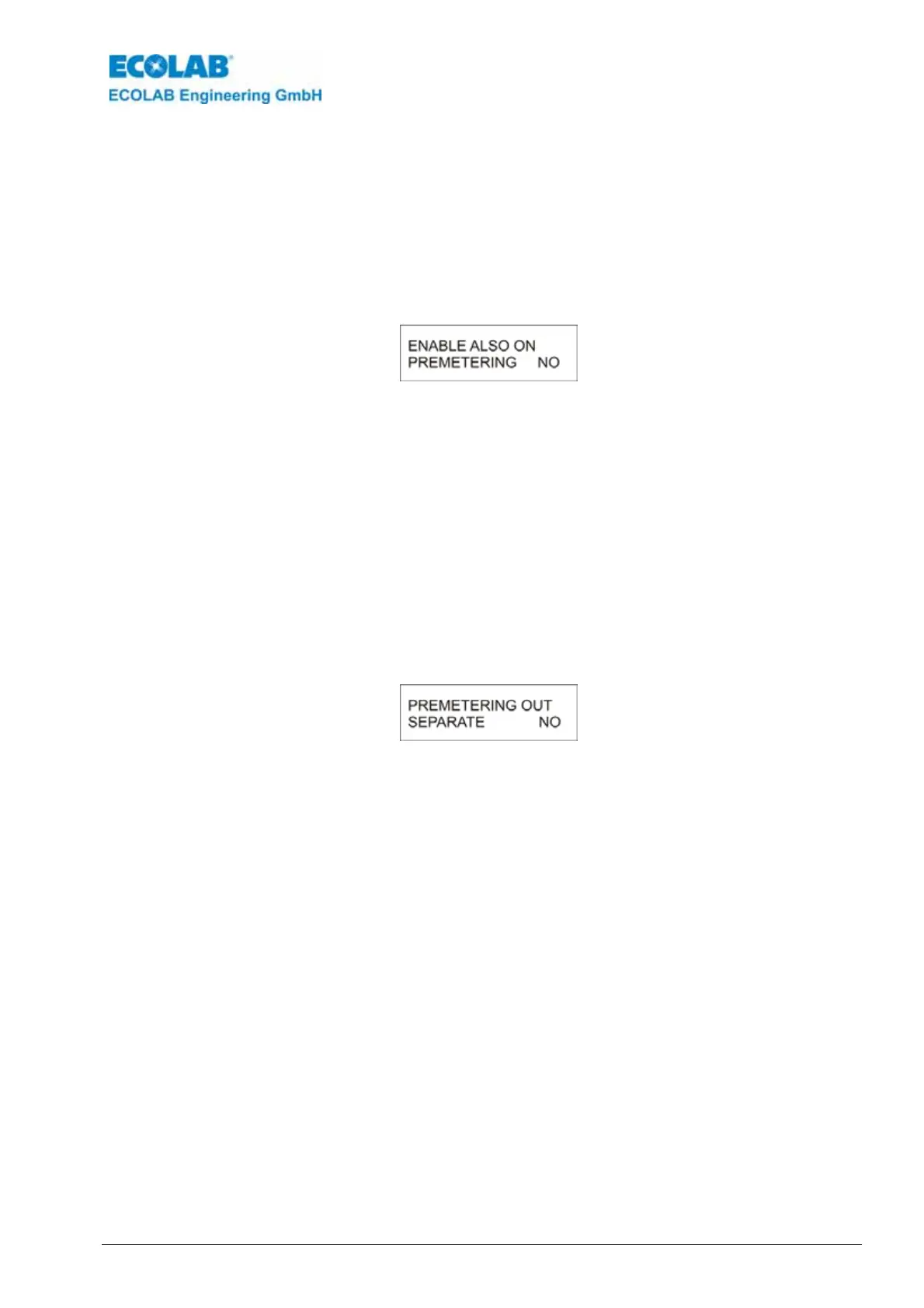

7.4.6 Assignment of metering enable
If the metering enable should also b
e active during the pre-metering, the menu ENABLE
ALSO ON PREMETERING must be set to YES in the CONFIGURATION FUNCTION (set
to NO ex-works)
To select the assignment for metering enable, proceed as follows:
1. Activate the CONFIGURATION FUNCTIONS menu.
2. Press the ↵ key.
3. Scroll with the NEXT key until the next menu is displayed.
4. Switch over from NO to YES by pressing one of the  or  keys.
5. Press the NEXT key to confirm.
7.4.7 Activate separate pre-metering output
If an additio
nal relay output is required for activating a pre-metering pump, this must be
activated by selecting YES under PREMETERING OUT SEPARATE in the
CONFIGURATION FUNCTIONS menu (ex-works setting is NO).
This means the relay output will be activated with the output SP1 during the pre-metering.
To select the separate pre-metering output, proceed as follows:
1. Activate the CONFIGURATION FUNCTIONS menu.
2. Press the ↵ key.
3. Scroll with the NEXT key until the next menu is displayed.
4. Switch over from NO to YES by pressing one of the  or keys.
5. Press the NEXT key to confirm.
