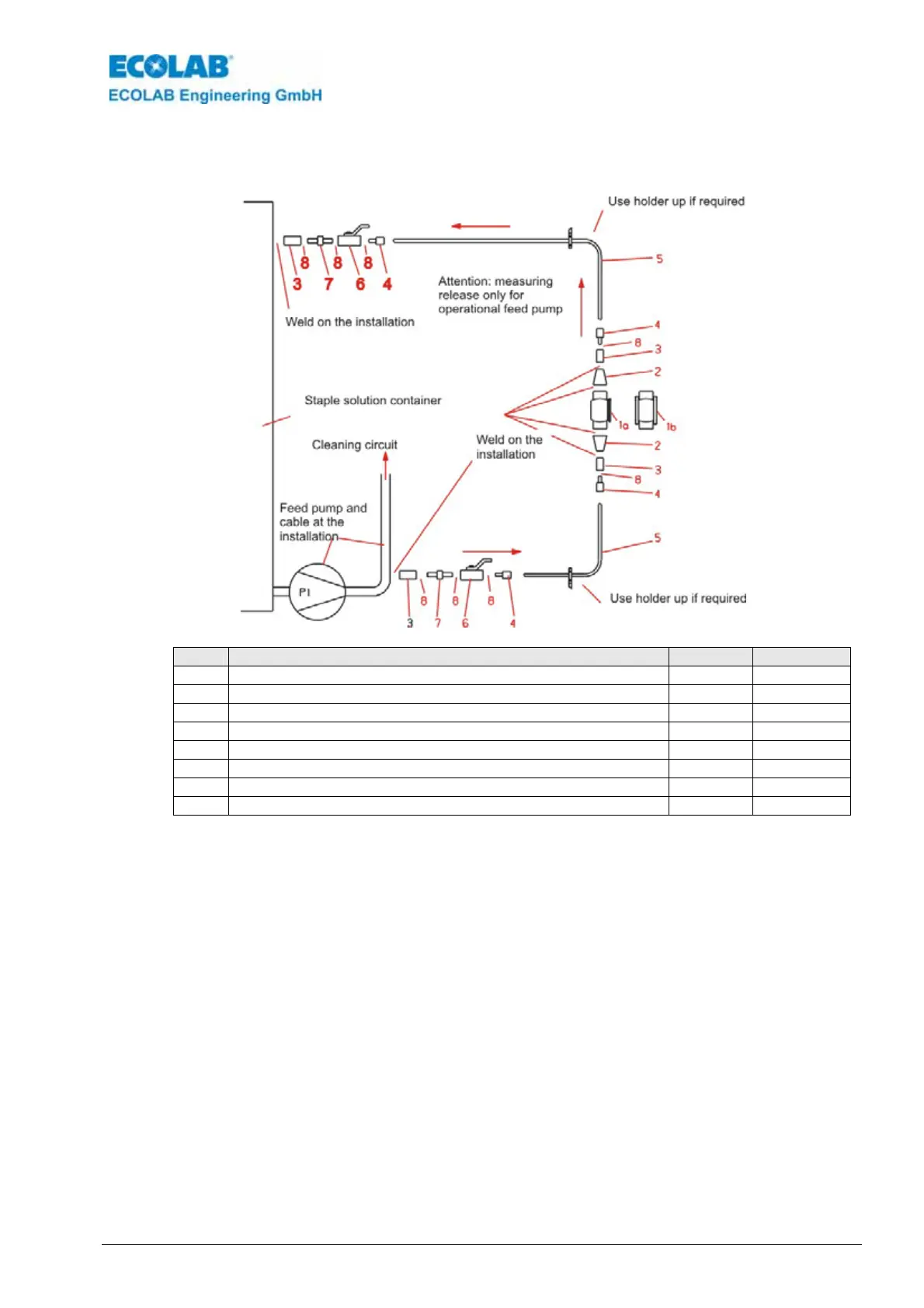

Measuring point installation in bypass, consisting of:
Fig. 12.1
Pos. Designation Part Item no.
1a Flow-through housing DN 50 1 287507
2 Reduction d 50 25 mm concentric, V2A seamless 2 415508873
3 Weld-on sleeve G ½, stainless steel 4 415203424
4 Cutting ring screw coupling G ½ for pipe 12 x 1.5 mm 4 415101885
5 Pipe 12 x 1.5 mm, stainless steel 4 415031164
6 Spherical stop valve G ½, stainless steel 2 415502024
7 Double nipple G ½, stainless steel 2 415203604
8 Teflon sealing tape (roll) 1 417100813
