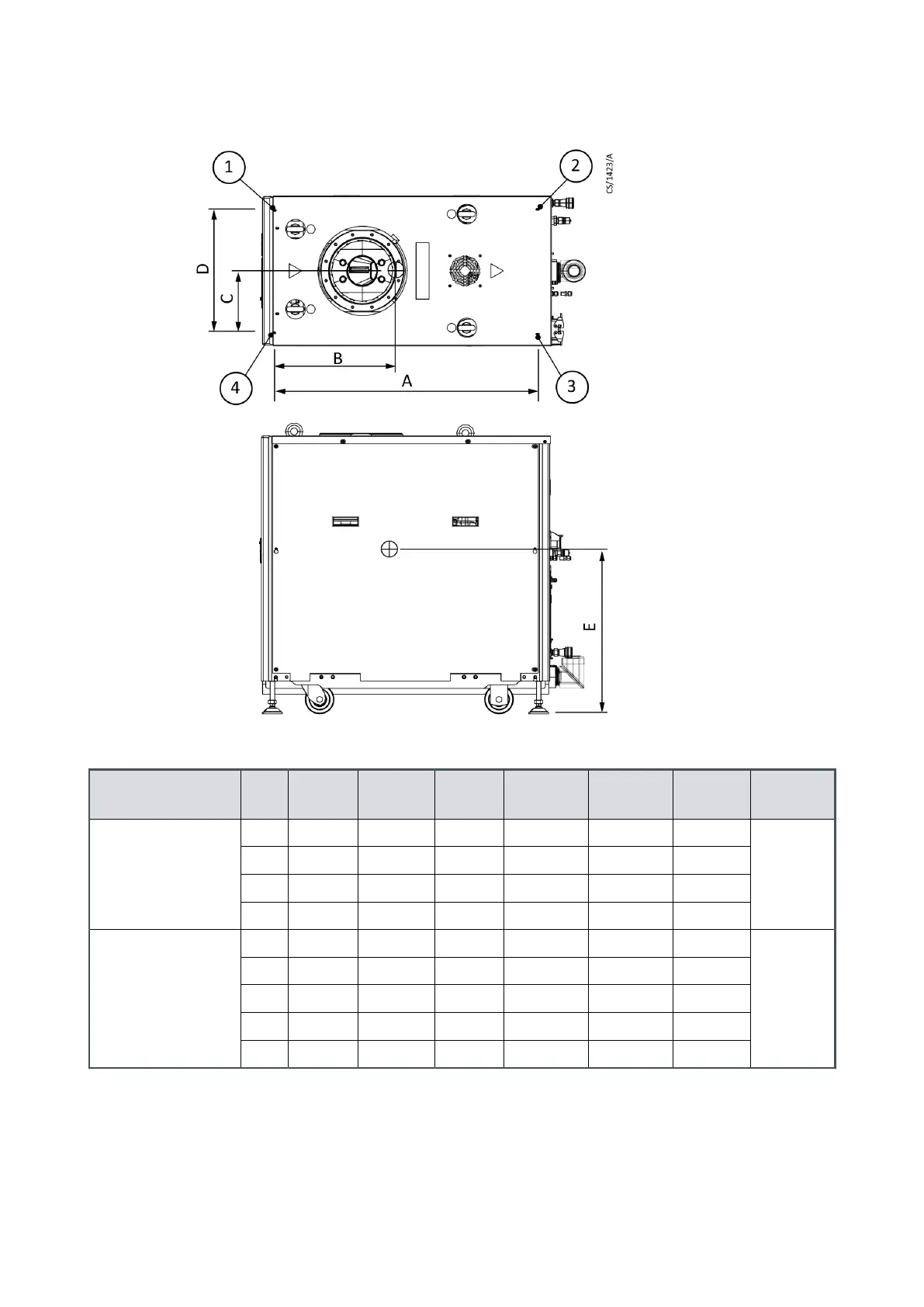

Figure 6 Centre of gravity and levelling foot loads iXM3000
Table 4
Loading data
Pump
3000 1200 1200T 1200TX
600
600T
200
200T
Units
Levelling foot
loads
*
1 156.8 57.5 56.6 57 57.5 39.9
kg
2 131.1 51.7 60 61.3 51.7 34.1
3 124.8 64.3 65.1 66.1 64.3 32.8
4 157.3 71.5 65 65.2 71.5 38.3
Centre of gravity
*
A 924 588.6 588.6 588.6 588.6 575
mm
B 415 278.7 298.4 300.4 278.7 266.5
C 216 81.8 86.8 87 81.8 111.2
D 427 183.6 183.6 183.6 183.6 218
E 573 322.1 326 326.9 322.1 214.1
* See also Figure: Centre of gravity and le
velling foot loads iXM200, Figure: Centre of
gravity and levelling foot loads iXM600 and iXM1200 and Figure: Centre of gravity and
levelling foot loads iXM3000.
10/2020 - ©Edwards Limited
Page 17M56635880_D
M56635880_D - Technical data
