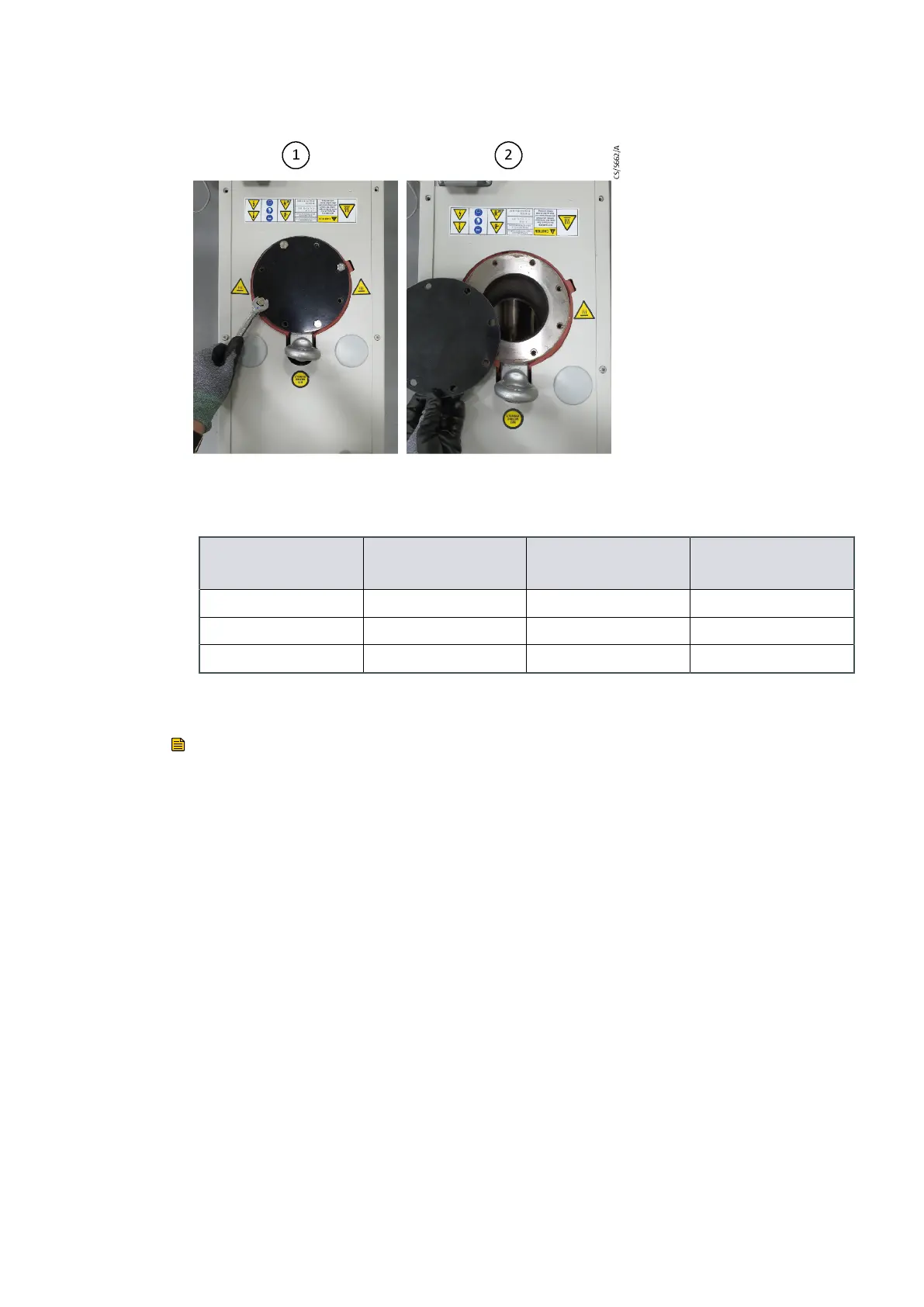

Figure 10 Connect the pump inlet (iXM600 and iXM1200)
1. Remove screws 2. Remove cover1. Remove screws 2. Remove cover
Table 17 Half claw clamps
Flange diameter
Half claw clamp
part number
Quanty required
Tightening torque
(Nm)
ISO63 C10007093 4 5
ISO100 C10007093 8 5
ISO200 C10011093 12 5
4.6.3 Connect the pump exhaust
Note:
The sys
tem is supplied with a trapped O ‑ ring or a metal seal based on the pump type and
expected exhaust temperatures. Make sure that the seals are always replaced with the
same type.
Use the trapped O-ring seal and clamp supplied to connect the exhaust outlet on the
exhaust pipe, to the exhaust ex tracon system. Refer to Figure: Controls/connectors on
the rear of the system
4.6.4 Connect to the factory extracon system (oponal)
An extracon port is given to allow secondary exhaust venlaon. When connected, the
airow operates connuously and will extract substances of concern that can be
released during a failure.
Refer to Tracer gas analysis on page 23 for the necessary extracon rates. Refer to
Accessories on page 93 for the necessary exhaust extracon cover kit.
Refer to Figure: Front view of the system for locaon of the extracon port.
