5.2 Leak test the system
WARNING: GAS LEAKAGE
Risk of injury or damag
e to equipment. Leak test the system aer installaon and
seal any leaks found to prevent leakage of dangerous substances out of the system
and leakage of air into the system.
Note:
If more informaon on leak
-tesng is necessary, contact supplier or us.
5.3 Congure the system through a PDT
5.3.1 Pump display terminal
The PDT accessory provides pump on or o and status reporng. Warnings and alarms
are also indicated to the user. Up to two PDTs can be installed on the pump.

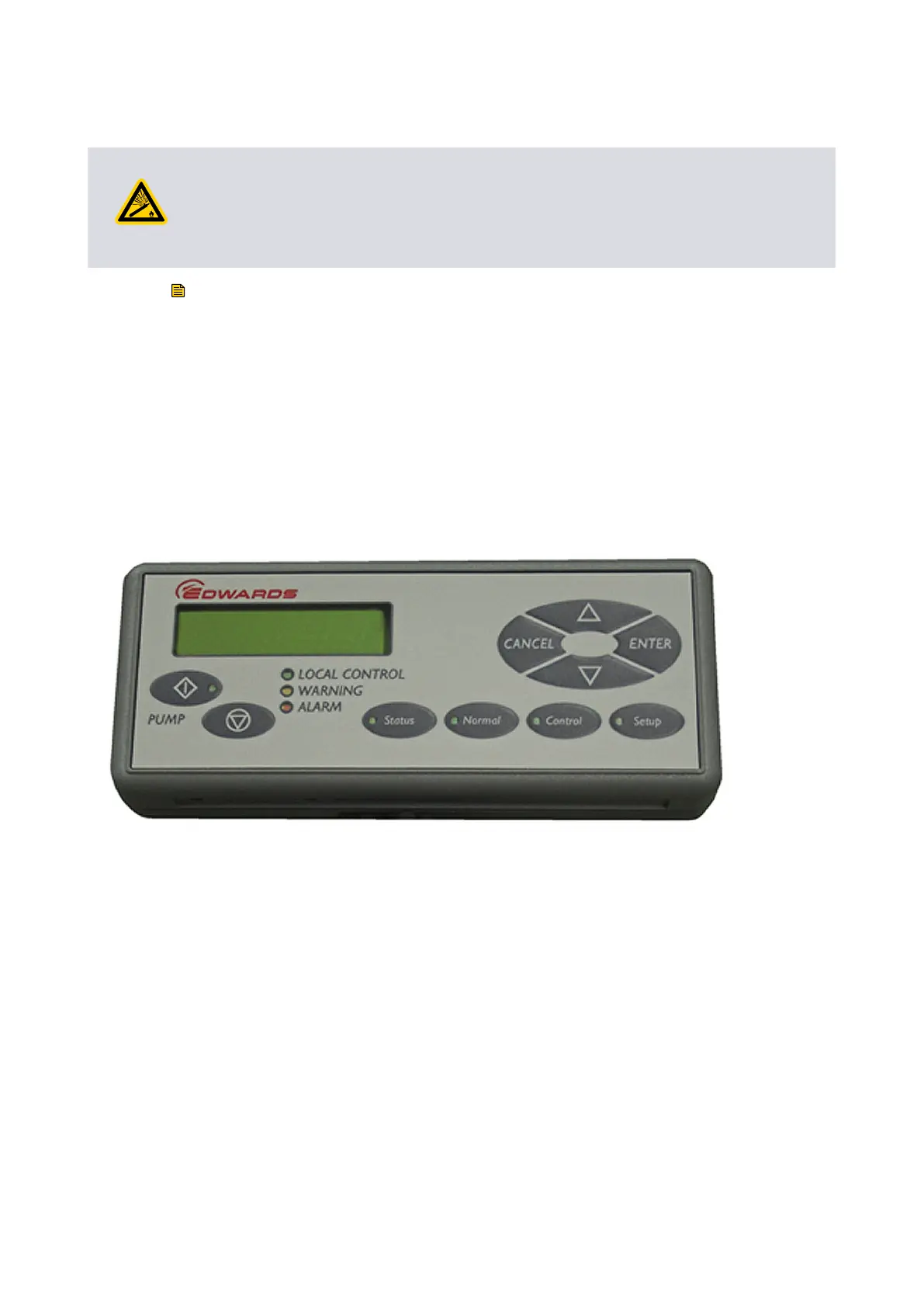

Figure 19 Pump display terminal
LEDs
Local Con
trol: Illuminates green connuously when the PDT has control of the pump.
Pump On (in the Pump Start Buon): Illuminates (green) to indicate that the pump is in
operaon.
Warning: Illuminates yellow to indicate that a pump warning is present. It ashes when a
new warning occurs unl it is acknowledged by pressing Enter. It then illuminates
connuously unl the warning clears.
Alarm: Illuminates red to indicate that a pump alarm is present. It ashes when a new
alarm occurs unl it is acknowledged by pressing Enter. It then illuminates connuously
unl the alarm clears.
