INSTALLING HARDWARE 22

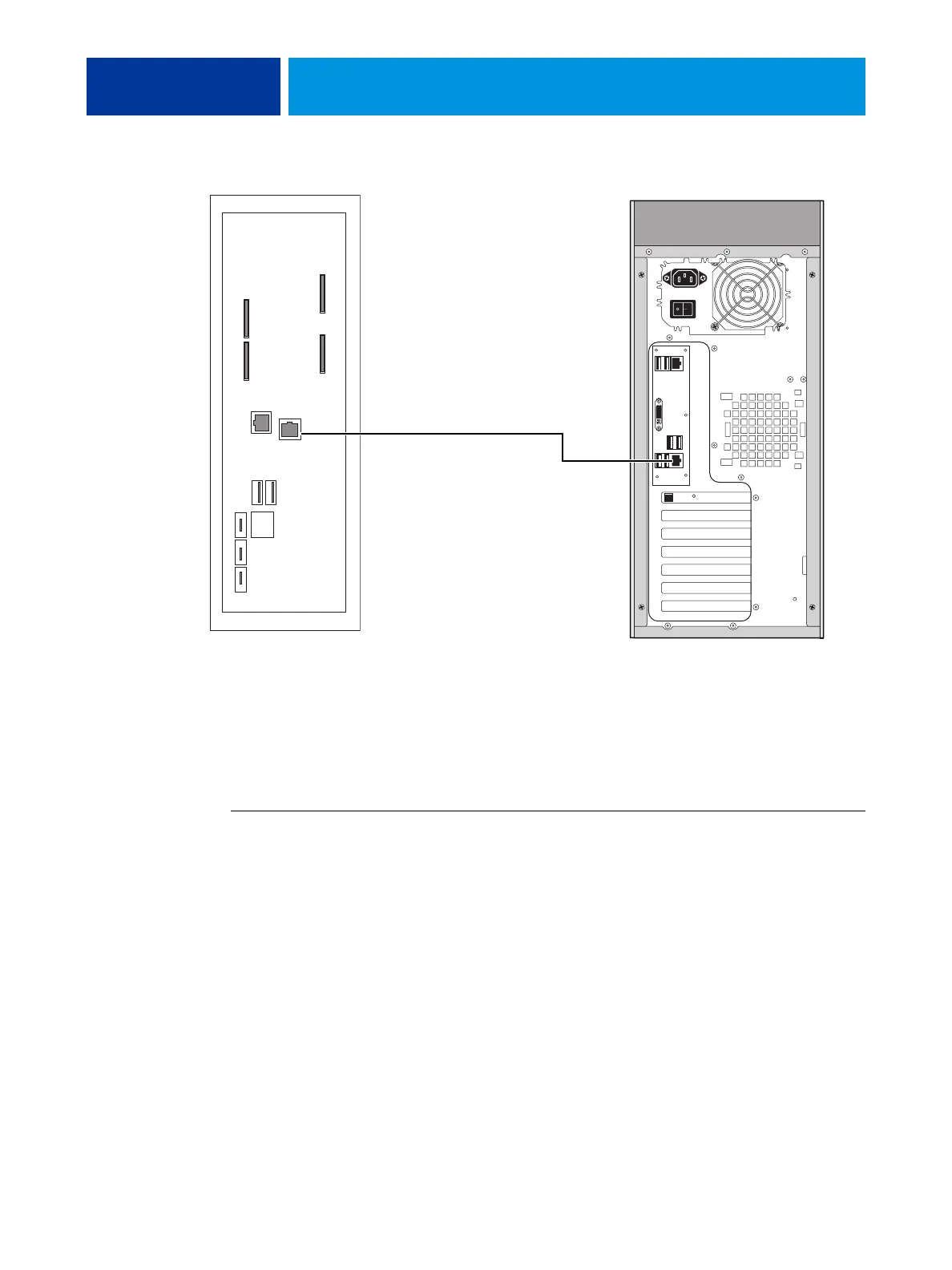

FIGURE 6: Printer and E-43A cable connection
3 (Optional) If you enable the power synchronization feature, connect the E-43A and the
copier/printer using the USB cable.
See “Power synchronization” on page 35 for more information.
TO CONNECT TO THE NETWORK
1 Make sure that the E-43A is powered off.
2 Make sure that the network cable is connected to the customer site network.
3 Connect the network cable to the upper RJ-45 network port on the back of the E-43A.
The E-43A provides twisted pair connectivity to an Ethernet network. When the network
cable is connected, the Ethernet interface automatically detects the speed of the network
environment. Depending on your network speed, the following unshielded twisted pair
(UTP) network cables are supported:
• 10BaseT: Category 3 or higher
• 100BaseTX: Category 5 or higher (4-pair/8-wire, short-length)
• 1000BaseT: Category 5e or higher (4-pair/8-wire, short-length)
copier/printer connector panel E-43A connector panel
