R
EPLACING
PARTS
51
The UIB cable is routed from a connector on
the back of the user interface board to
connector J27 on the motherboar
d (see
Figure
23 on page
57
).
F
IGURE
20:

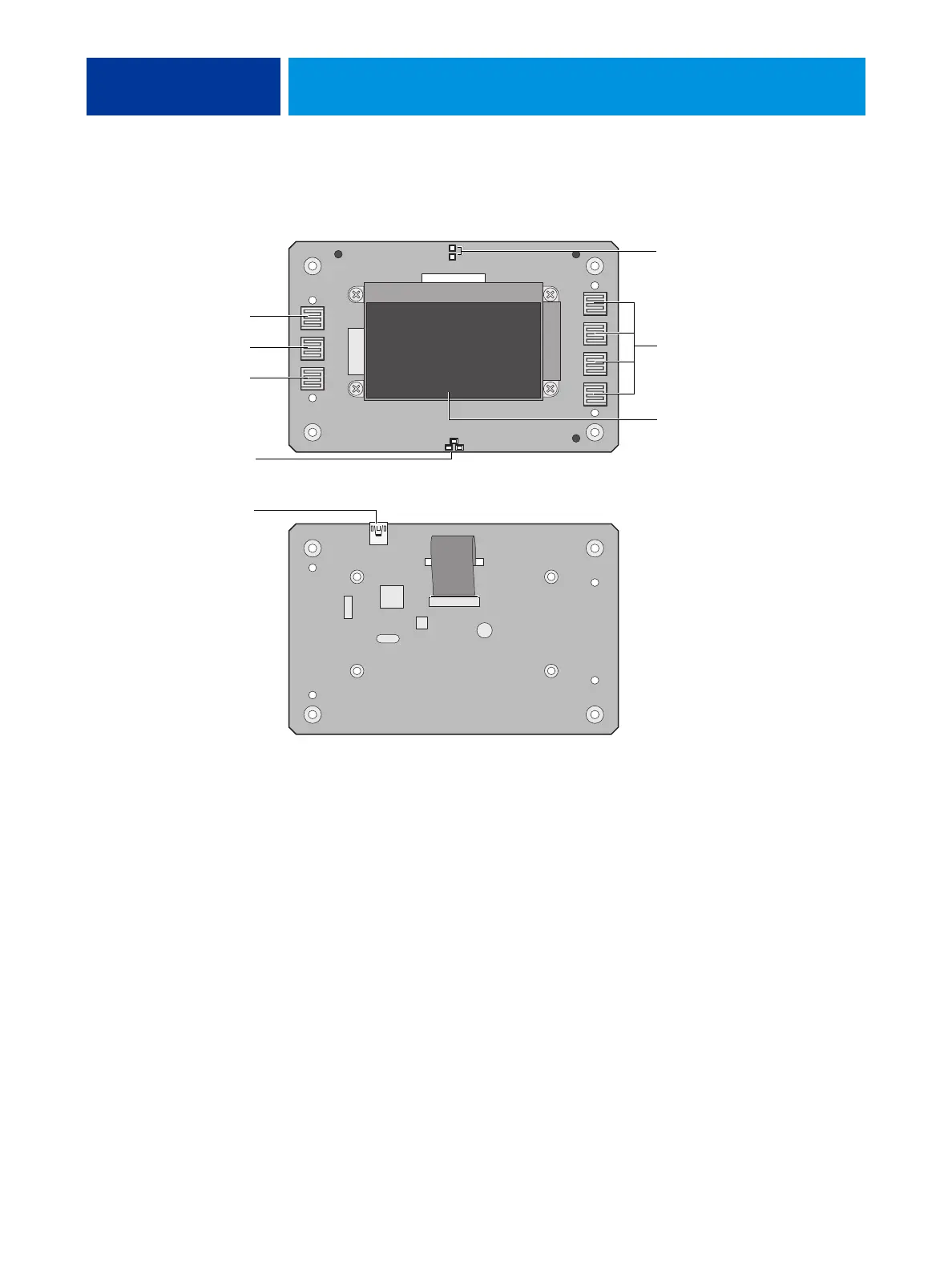

Diagram of the user interface board (front and
back)
Back
Front
Line selection
button pads
UIB cable connector
USB_A
Activity lights
(LEDs)
Display window
Up button pad
Menu button pad
Down button pad
Jew
el light
s
50
52
