REPLACING PARTS 80

Switch bank assembly

The switch bank assembly attaches to the component sled. The switch bank assembly

includes the following components:

•DVD drive

• Power button and cable

• Reset button and cable

•Speaker and cable

• Front USB ports and cables

NOTE: For more information about servicing the DVD drive, see page 84.

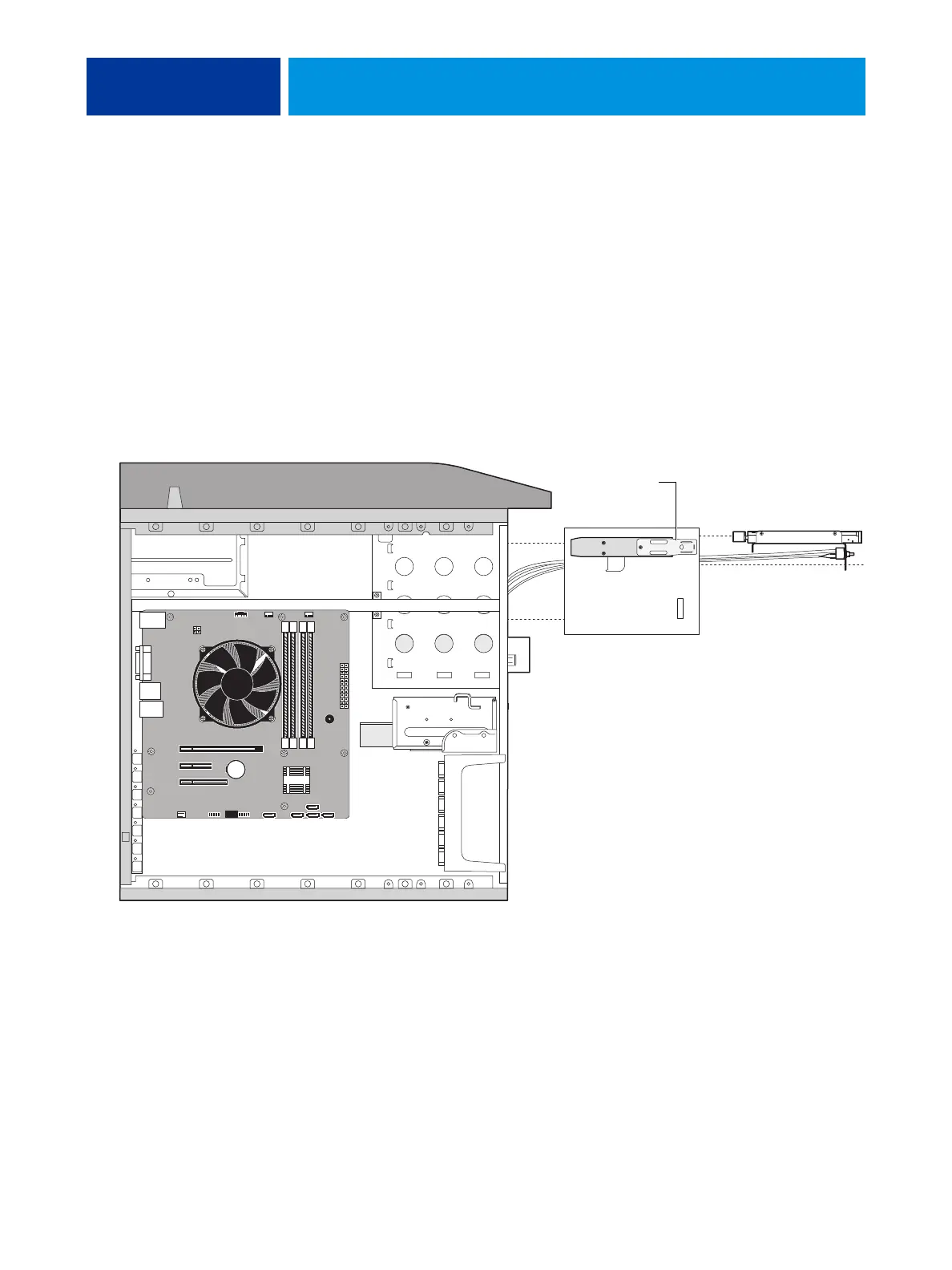

FIGURE 31: Component sled with switch bank assembly

Switch bank

assembly with

DVD drive

Component sled

Guide latch

(1 of 2)

NOTE: Printer interface board

and internal cables are not shown.
