R
EPLACING
PARTS
40

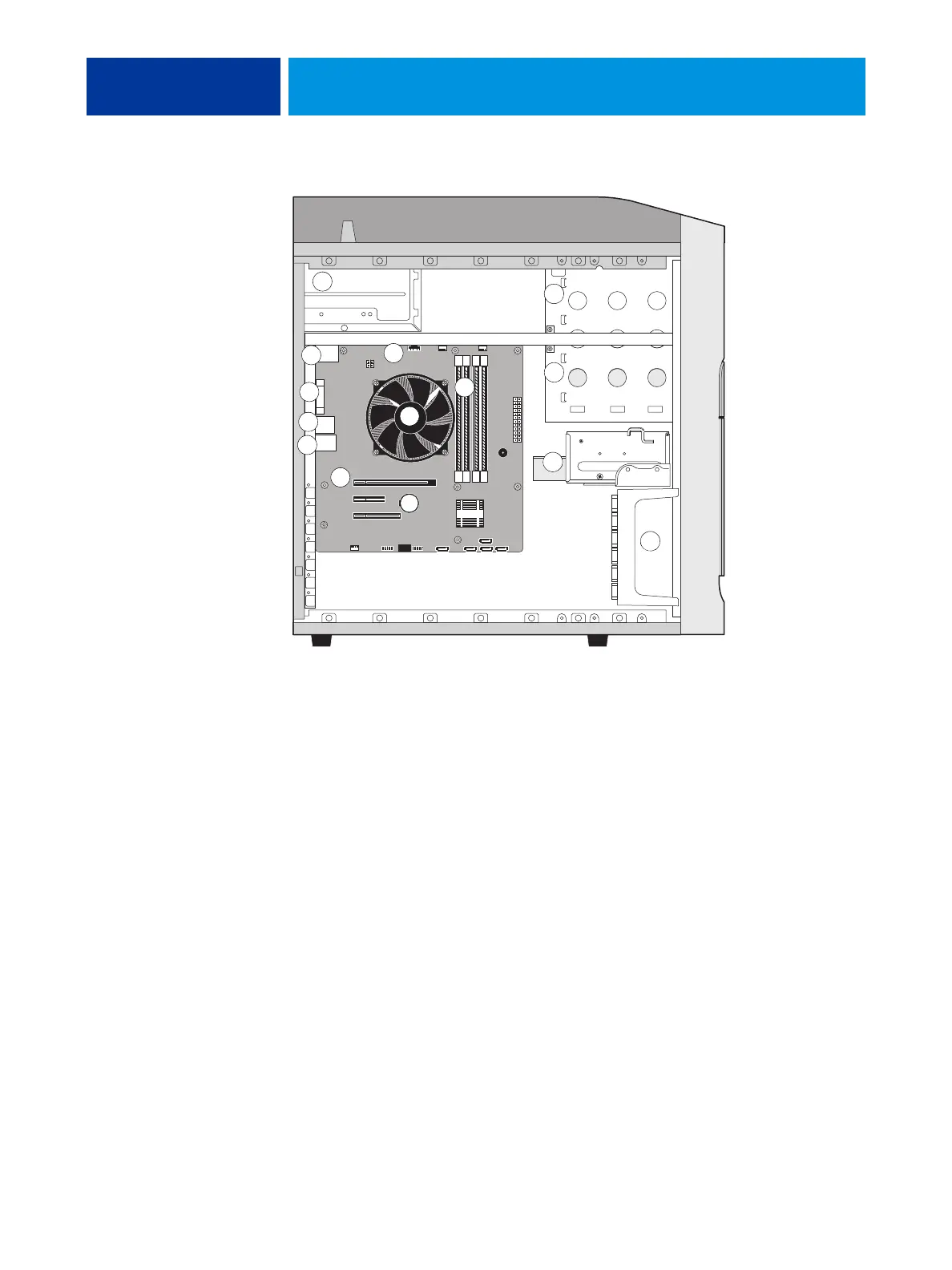

F
IGURE
12:
Internal side view
Key
1
Po
wer supply
2
Motherboard
3
Network port
4
Monitor (DVI) port
5
USB ports
6
USB ports and crossov
er
Ethernet port
7
Printer interface board
8
CPU cooling assembly
9
DIMM slots
10
DVD drive
11
Removable drive
12
Hard disk drive in br
acket
13
Front fan
N
OTE
:
The hard disk drive
cover
is not shown.
9
1
4
8
2
6
7
3
5
10
11
12
13
39
41
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
9
Document Conventions
9
About the E-43A
9
How the E-43A Operates
9
Before You Service the E-43A
10
FIGURE 1: E-43A Functional Diagram
10
Tools You will Need
11
Precautions
11
Installing Hardware
15
Installation Sequence
15
Checking the Customer Site
16
Copier/Printer Readiness
16
FIGURE 2: Space Requirement for the E-43A
16
Setting Customer Expectations
17
Unpacking the E-43A
18
Connecting the E-43A
19
FIGURE 3: Affixing the Decal to the Copier/Printer
19
Connecting the Monitor, Keyboard, Mouse, and Power
20
FIGURE 4: Front and Connector Panel
20
Connecting to the Copier/Printer and the Network
21
FIGURE 5: Straight-Through and Crossover Ethernet Cables
21
FIGURE 6: Printer and E-43A Cable Connection
22
Configuring a Static IP Address for the E-43A
23
Completing Installation and Starting up
24
Using the E-43A
25
Using the E-43A Control Panel
25
FIGURE 7: E-43A Control Panel
25
Activity Light
26
Buttons
26
E-43A Functions Menu
27
FIGURE 8: E-43A Functions Menu
27
Using the Copier/Printer Touch Panel
28
Main Tab
28
FIGURE 9: the Copier/Printer Touch Panel
28
Printme Tab
29
Job List Tab
29
Tools Tab
29
Scan Tab
29
Fiery Tab
30
Printable Info Menu
31
Network Status Leds
32
Starting, Shutting Down, Restarting, and Rebooting
32
Power Synchronization
35
FIGURE 10: USB Connection between Copier/Printer and E-43A
36
Replacing Parts
38
Overview
38
E-43A Overview Diagrams
39
FIGURE 11: Front and Connector Panel
39
FIGURE 12: Internal Side View
40
FIGURE 13: Exploded View of Components
41
Accessing Internal Components
43
Shutting down the System
43
FIGURE 14: Power and Data Cable Connections
43
Opening the E-43A
44
FIGURE 15: Removing/Replacing the Side Panels
45
FIGURE 16: Removing/Replacing the Front Panel
46
FIGURE 17: Removing/Replacing the Top Panel
47
Removing and Replacing Boards
48
Printer Interface Board
49
FIGURE 18: Printer Interface Board (Component Side)
49
User Interface Board Assembly
50
FIGURE 19: J102 Connector on the Printer Interface Board
50
FIGURE 20: Diagram of the User Interface Board (Front and Back)
51
FIGURE 21: Removing/Replacing the User Interface Board
52
FIGURE 22: Removing/Replacing the UIB Buttons
53
Motherboard
54
Motherboard Replacement Overview
55
Removing the Motherboard
56
FIGURE 23: Motherboard
57
CPU Power (J18)
58
Replacing the Motherboard
59
Printer Interface Board
62
UIB Cable (J27)
62
Verifying New Motherboard Installation, and Transferring Options and BIOS Information
63
Replacing Parts on the Motherboard
65
Dimms
65
Cpu
66
FIGURE 24: CPU Cooling Assembly
67
CPU Fan Power (J16)
67
FIGURE 25: Removing/Replacing the CPU
69
Battery
70
Jumpers
71
FIGURE 26: Motherboard Battery
71
Fan
72
FIGURE 27: Removing the Fan
72
Power Supply
73
FIGURE 28: Removing/Replacing the Power Supply
74
Hard Disk Drive
75
FIGURE 29: Removing/Replacing the Hard Disk Drive Bracket
77
FIGURE 30: Removing/Replacing the Hard Disk Drive From/In the Hard Disk Drive Bracket
78
Switch Bank Assembly
80
FIGURE 31: Component Sled with Switch Bank Assembly
80
FIGURE 32: Removing/Replacing the Component Sled from the Chassis
81
FIGURE 33: Removing/Replacing the Switch Bank Assembly
82
DVD Drive
84
FIGURE 34: Removing/Replacing the DVD Drive
85
Restoring and Verifying Functionality after Service
86
System Software Installation
87
Before Installing System Software
87
Using the Fiery System Installer
89
Back up with Fiery System Installer
89
Restore with Fiery System Installer
90
Restore with Bootable Media
91
Platform Utilities
91
Changing the Factory Default Language
92
Installing System Software
92
System Updates
95
Check for Product Updates (Software Downloads Site)
96
Troubleshooting
98
Preliminary On-Site Checkout
98
Checking External Connections
99
Checking Internal Components
99
Inspecting the System
100
Front Panel Fan (J20)
102
Normal Startup Sequence
103
FIGURE 35: Normal Startup Sequence
103
Error Messages and Conditions
104
Specifications
115
Hardware Features
115
Physical Specifications
115
Networking and Connectivity
115
Note
115
Safety and Emissions Compliance
116
Safety Approvals
116
EMI/EMC Approvals
116
Servicing the E-43A with Furniture
117
Procedures
117
Figures
117
IGURE E-43A Installed on the Furniture
117
Index
127
