EFI E-43A User Manual

REPLACING PARTS 45
TO REMOVE AND REPLACE THE LEFT OR RIGHT PANEL
1 Remove the screws that secure the panel to the back of the chassis.
Set aside the screws so that you can replace them later.
2 Pull the back edge of the panel away from the chassis and lift the panel off the chassis.

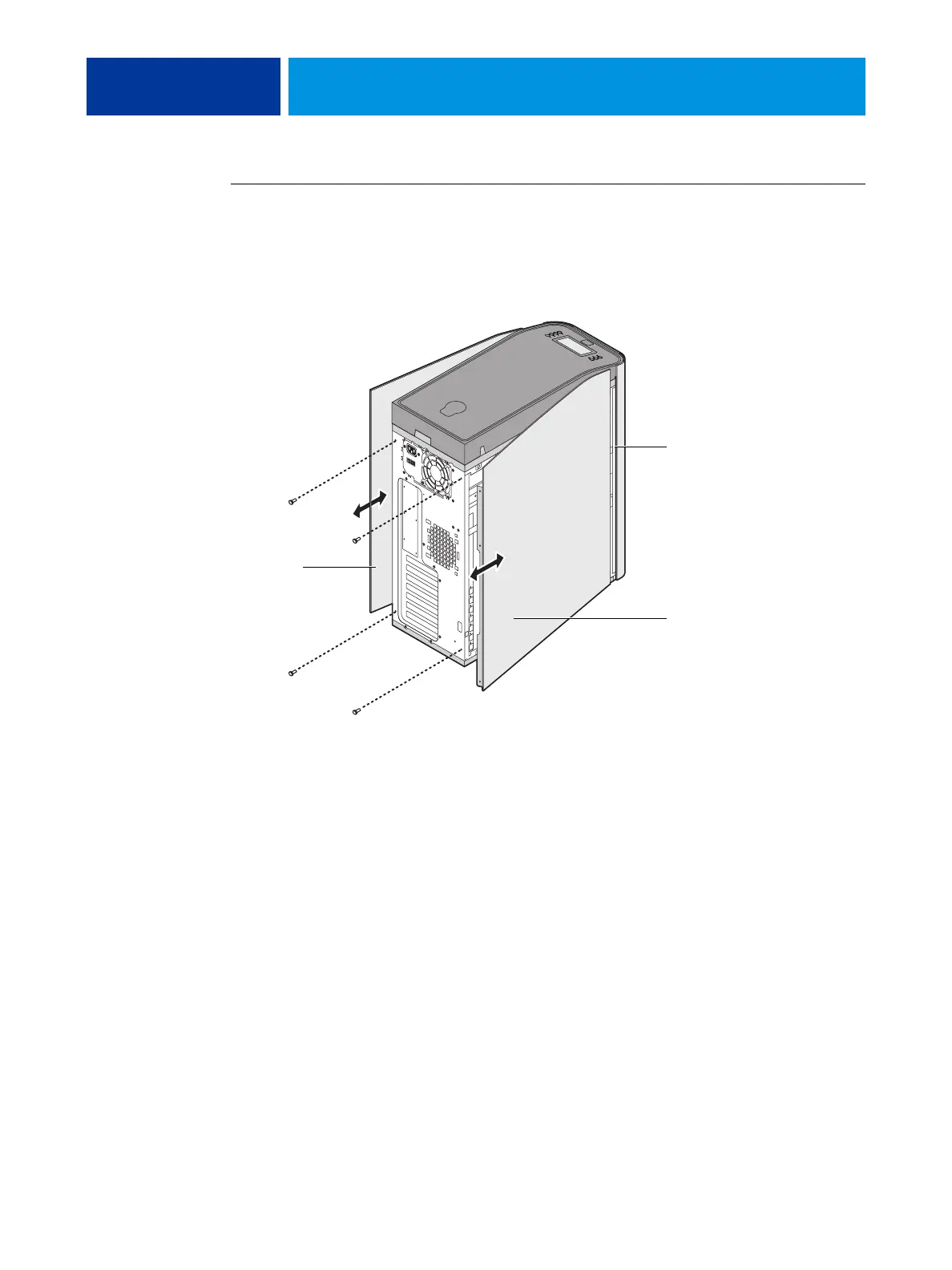

FIGURE 15: Removing/replacing the side panels
3 To replace the panel, fit the front edge of the panel on the pivot post in the chassis.
4 Rotate the panel closed against the back of the chassis and replace the screws that you
removed earlier.
Make sure not to damage cables as you replace the panel. Fold all cables inside the chassis
before closing the panel against the chassis.
Pivot post inside chassis
Left side panel
Right side panel
