EFI E-43A User Manual

REPLACING PARTS 67
NOTE: Do not remove the CPU fan from the heatsink.

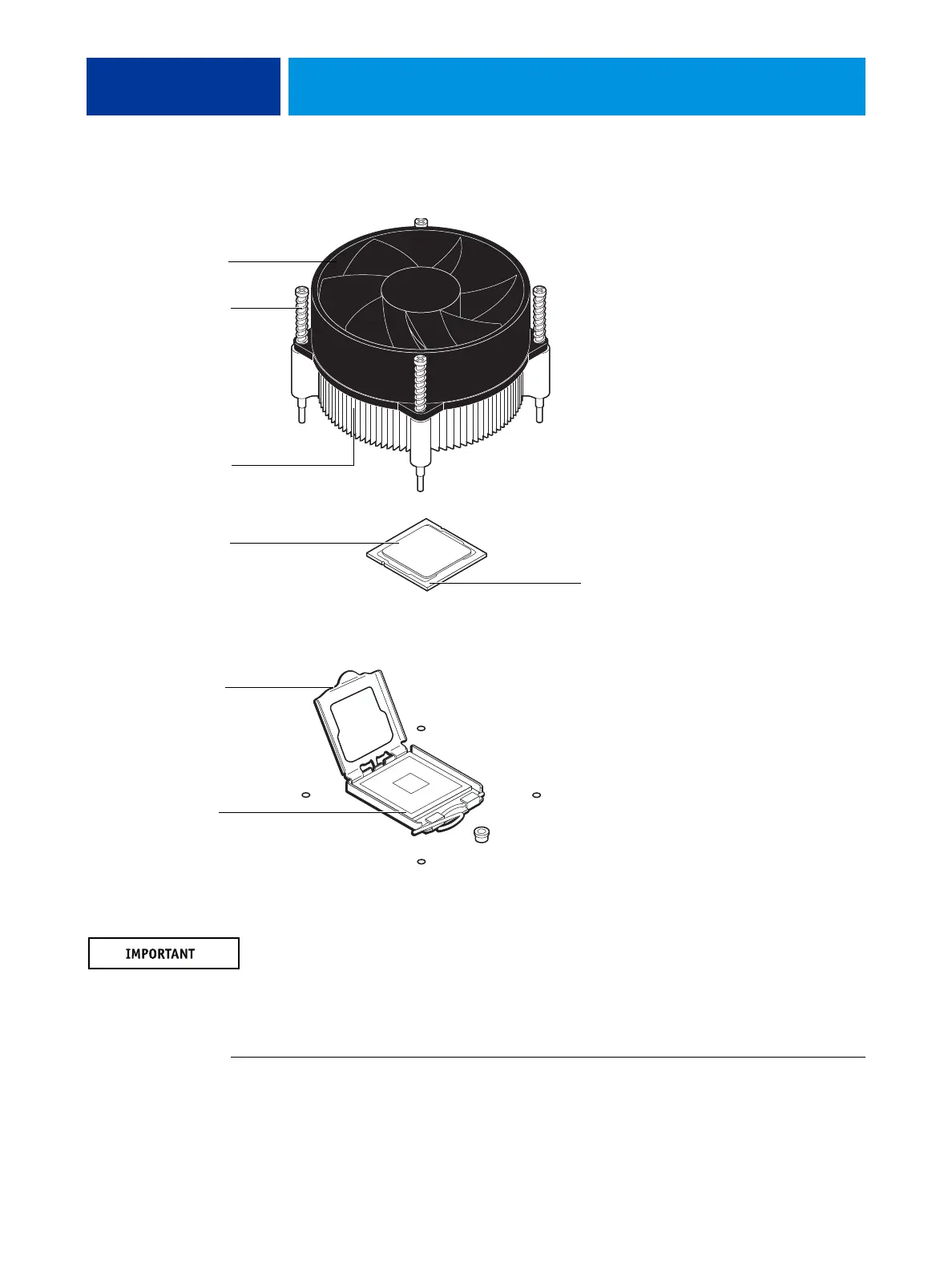

FIGURE 24: CPU cooling assembly
If you remove the CPU from the motherboard in order to install it on a new motherboard,
unpack the new motherboard and remove the protective plastic cover on the CPU socket.
Transfer the protective cover to the CPU socket of the old motherboard to protect the
circuitry. Follow standard ESD precautions while handling the motherboard and all
components.
TO REMOVE THE COOLING ASSEMBLY
1 Shut down, and then open the E-43A (see pages 43 and 44).
To access the CPU, you must remove the left panel.
Fastener
screw
(1 of 4)
CPU fan
Heatsink
CPU
Yellow triangle
Load plate open
Yellow triangle
