REPLACING PARTS 42

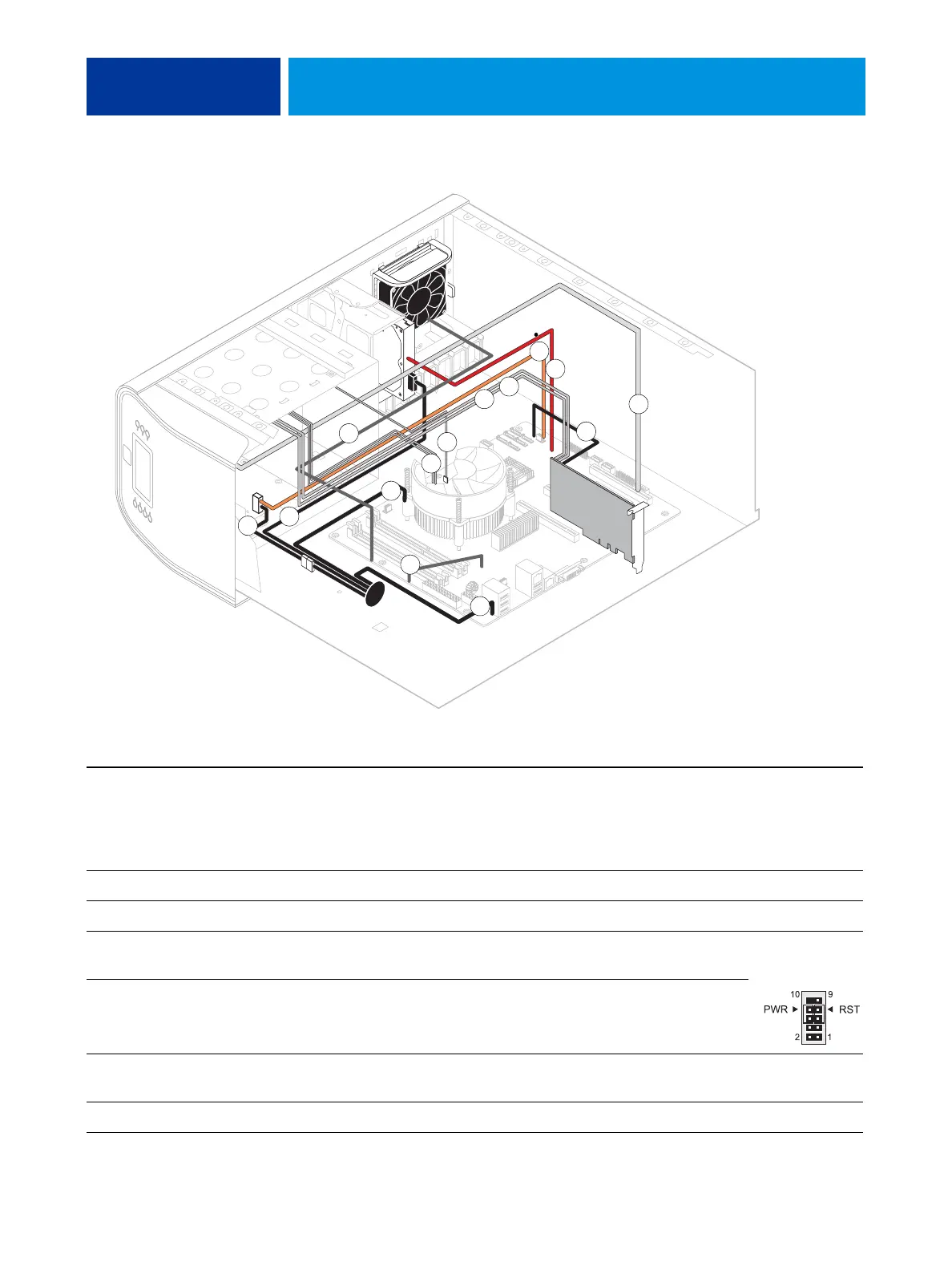

Cable key From To (on motherboard connector)
1. Power supply cable Power supply a. Motherboard power connector (ATX24P_1)
b. CPU power connector (J18)
c. DVD drive power connector (combined with data)
d. Hard disk drive power connector
2. Front panel USB port cables Front panel Motherboard connectors J24
3. UIB cable User interface board Motherboard connector J27
4. Reset cable (RESET SW -
Blue)
Front panel J102 connector (pin 5, 7) on the printer interface
board
Align triangle on
cable connector as
shown.
5. Power cable (POWER SW -
Green)
Front panel J102 connector (pin 6, 8) on the printer interface
board
6.10-pin power button cable J103 connector on the
printer interface board
Motherboard connector J15
7. Speaker cable Front panel Motherboard connector J83
1b
1c
11
7
NOTE: Power supply and DIMMs
are not shown.
1a
10
9
8
1d
3
2
4
See the connection label attached inside
the chassis.
5
6
