Safety and operating instructions
16 © Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
3 Overview
3.1 Equipment description

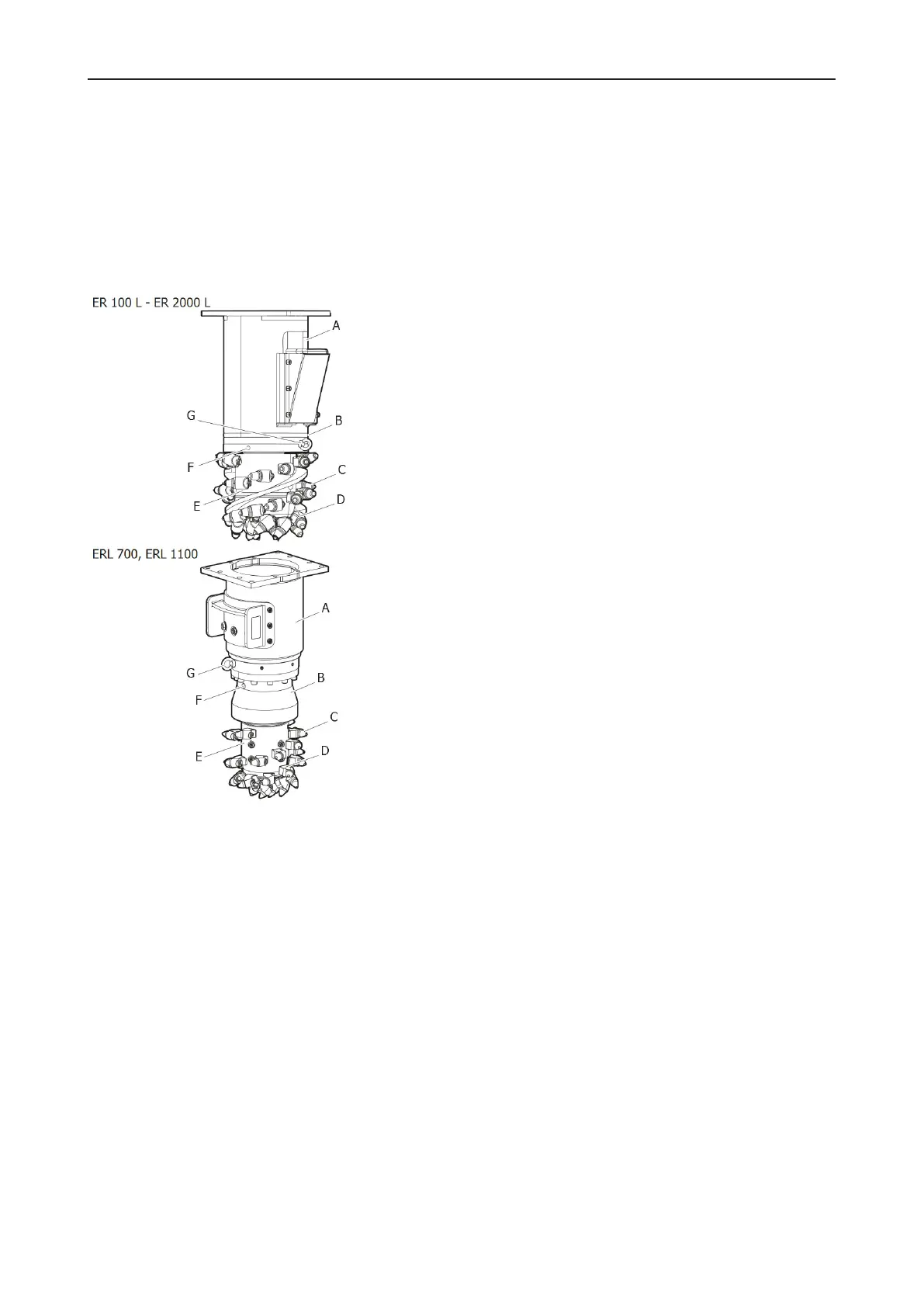

The illustration gives an overview of the main parts and
components of the hydraulic attachment. Actual details
may differ.
A. Intermediate bracket
B. Drive shaft with hydraulic motor
C. Round attack pick
D. Pick box
E. Cutter drum
F. Oil filler/drain screw
G. Transport lug
3.2 Function
The operation of a drum cutter is described in a simpli-
fied version below:
The drum cutter is an attachment for hydraulic carriers.
The cutter drum is powered by the hydraulic motor of the
drum cutter. The round attack picks are attached to the
cutter drum at a defined angle. A rotating motion of the
cutter drum facilitates the cutting process and thus re-
duces the size of the rock.
The longitudinal drum cutter can be reconfigured as a
drive for a drilling auger. This drilling auger is an optional
accessory part and is not contained within the scope of
deliverables.
