Epiroc ER-L Series User Manual

Safety and operating instructions
82 © Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions

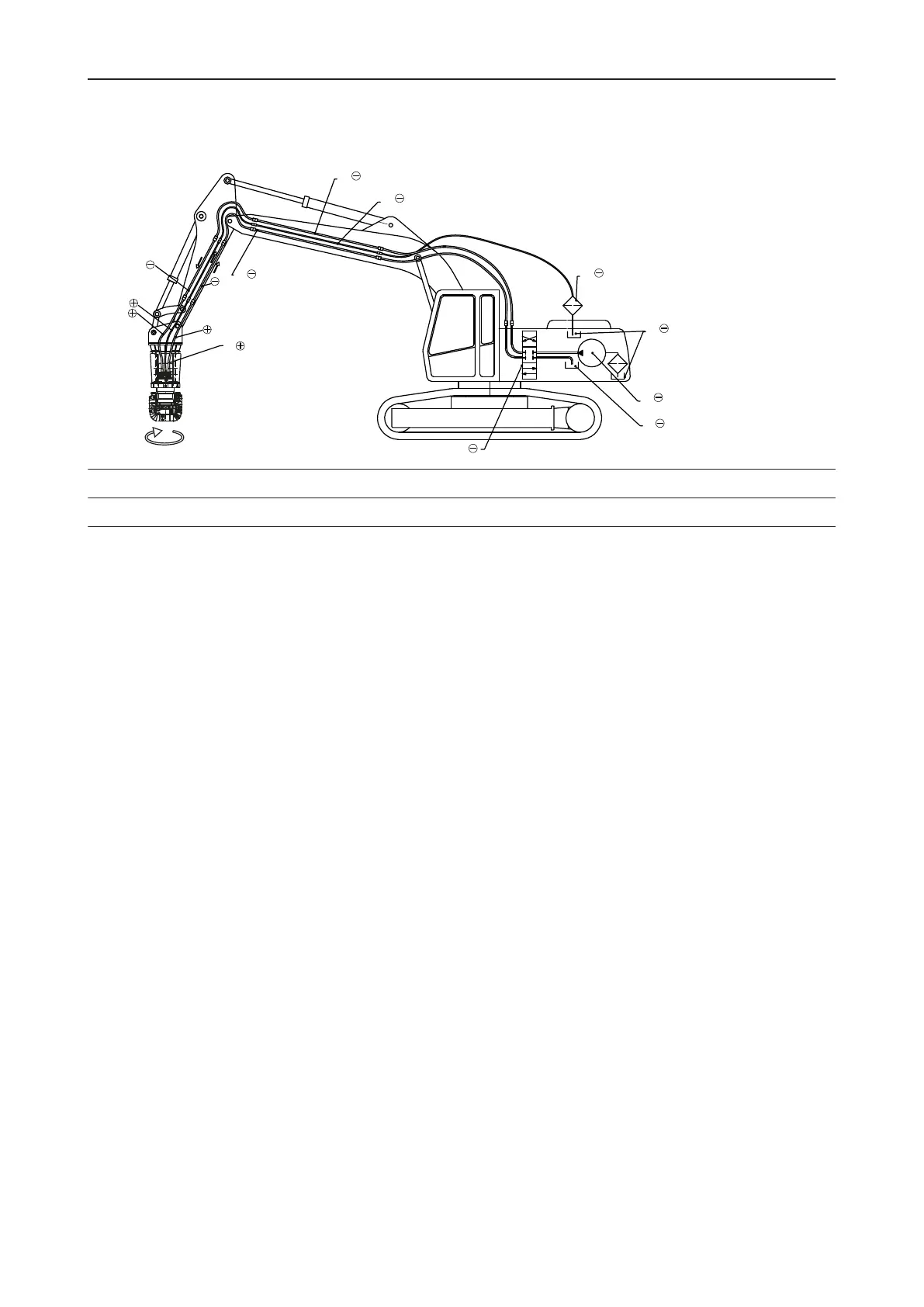

13.2 Hydraulic installation version 2 for hydraulic shear systems
A
C
D
E
F
G
I
B
H
- Parts not included in the scope of delivery
+ Parts included in the scope of delivery
A. Pressure line (High pressure HP) 350 bar (5075 psi) max., Q = X l/min (Y gal/min)
B. Leakage oil line, Leakage oil pressure 3 bar (43.5 psi) max.
C. Additional leakage oil filter
D. Oil tank
E. Oil pump
F. Tank
G. Valve block
H. Hydraulic motor
I. Tank line (Low pressure LP) 15 bar (217.5 psi) min.
