Epiroc ER-L Series - Disassemble Cutter Drum ERL 700, ERL 1100

Safety and operating instructions
56 © Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
n
Place the cutter drum(E) on a pallet for further use
and secure against rolling off.
n
Remove any clamping sleeves(F) that may remain in
the cutter drumusing a special extractor(G).
F
G

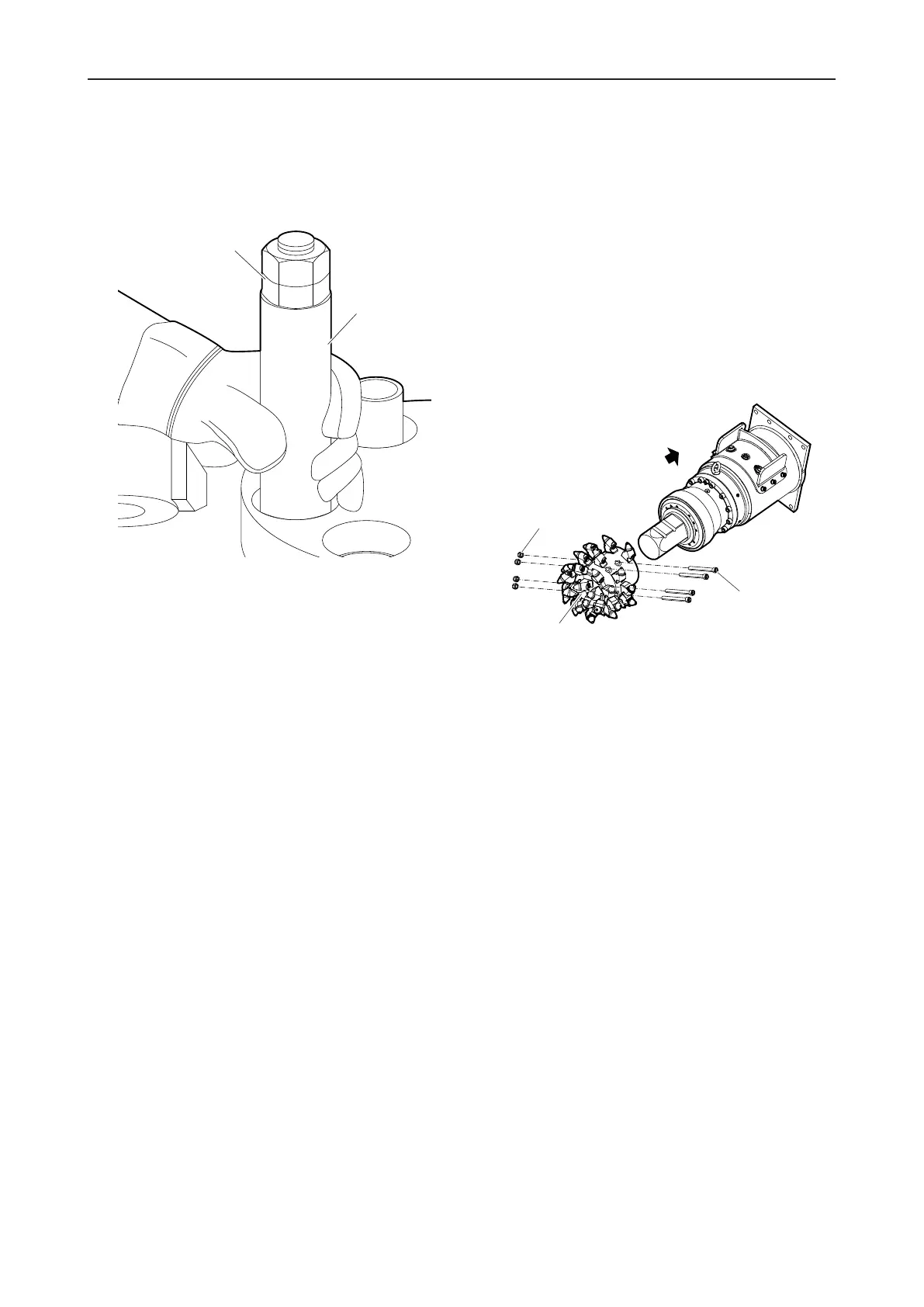

7.11.2 Disassemble cutter drum ERL700,
ERL1100
Actual details may differ.
n
Place the drum cutter on a level working area with
sufficient bearing strength.
Note: Do not remove the drum cutter from the carrier.
n
Switch off the carrier.
n
Secure the carrier such that it cannot move unexpect-
edly.
n
Remove the fastening screws(I) and nuts(H).
H
E
I
n
Place the cutter drum(E) on a pallet for further use
and secure against rolling off.
n
Switch on the carrier and pull the drum cutter slowly
out of the hexagonal connection with the cutter
drum(E).
