Type Size Tightening torque
ER 100 L M 20 415 Nm (306 ft lbs)
ER 250 L M 20 415 Nm (306 ft lbs)
ER 400 L M 20 415 Nm (306 ft lbs)
ER 450 L M 20 415 Nm (306 ft lbs)
ER 600 L M 20 415 Nm (306 ft lbs)
ERL 700 M 24 800 Nm (590 ft lbs)
ERL 1100 M 24 800 Nm (590 ft lbs)
ER 1500 L M 30 1428 Nm (1053 ft lbs)
ER 2000 L M 30 1428 Nm (1053 ft lbs)
n
Attach the mounted pivot adapter to the carrier (see
chapter Attaching the hydraulic attachment to the
carrier).

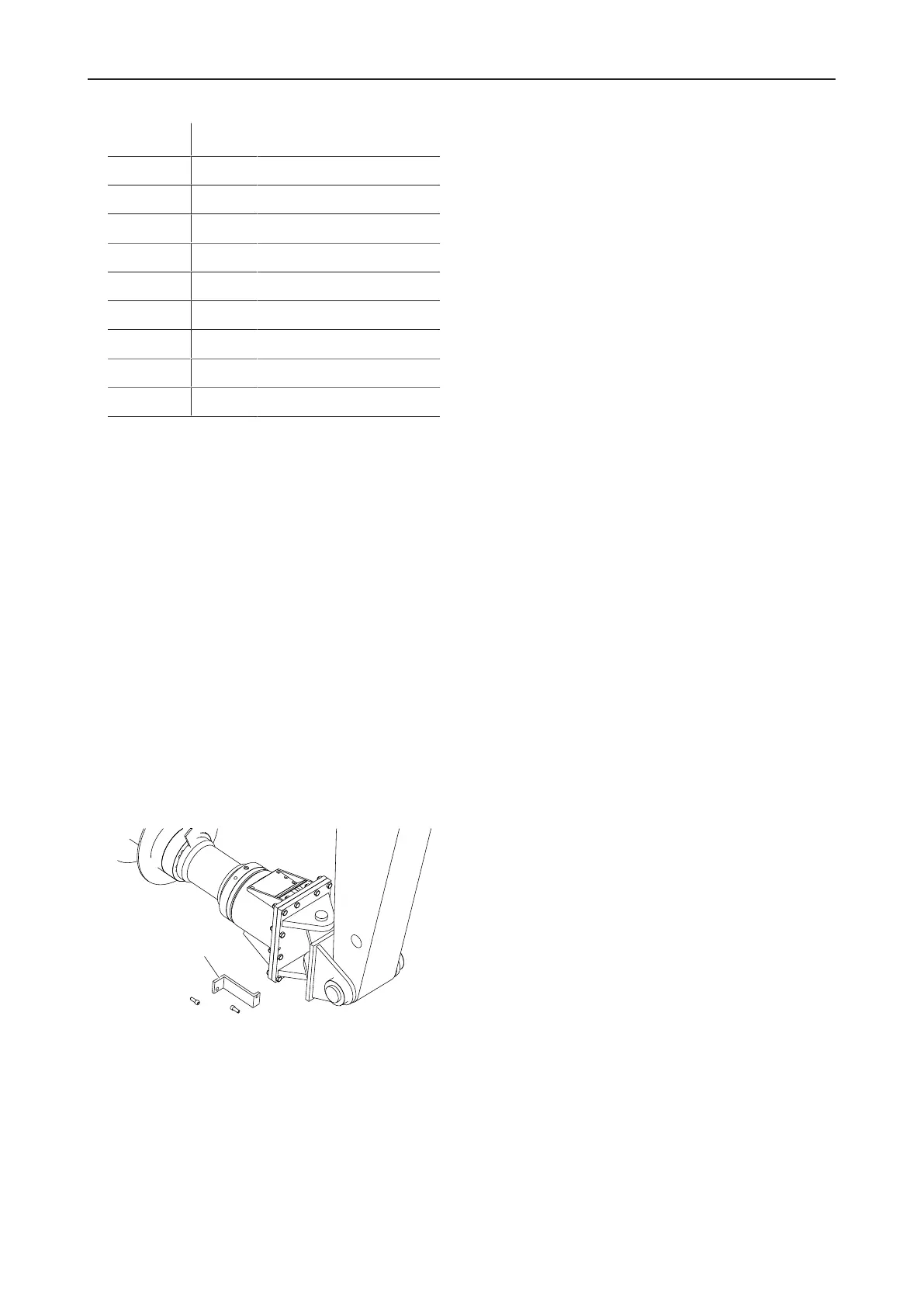

Note: Once the drum cutter with the drilling auger has
been attached to the carrier it is necessary to detach the
tipping safeguard(U) from the pivot adapter. This tipping
safeguard fixes the pivot adapter in place and serves to
prevent injuries from occurring due to the uncontrolled
movement during transportation and assembly.
n
Place the attached drilling auger on a level working
area with sufficient bearing strength.
n
Switch off the carrier.
n
Secure the carrier such that it cannot move unexpect-
edly.
n
Unscrew the two screw connections on the tipping
safeguard(U) and remove tipping safeguard(U).
5.6.4 Dismount pivot adapter
You need an assistant to remove the pivot adapter.
n
Place the drum cutter horizontal on a level working
area with sufficient bearing strength within the range
of the carrier.
n
Disassemble the drum cutter from the carrier (see
chapter Removing the hydraulic attachment from
the carrier).
n
Fit the tipping safeguard(U) to the pivot adapter and
fix with the two screws.
n
Remove the screws(S) and nuts(R).
n
Remove the pivot adapter(T).
n
Place the pivot adapter on a pallet for further use and
secure against falling off.
5.6.5 Dismount drilling auger
n
Remove the fastening screws(P) and nuts(O) and
keep them for further use.
n
Use a crane to lift the drilling auger slowly away from
the hexagonal receiver of the drum cutter.
n
Place the drilling auger on a pallet for further use and
secure against rolling off.
n
To reattach the cutter drum (see chapter Assemble
cutter drum).
