Epiroc ER-L Series User Manual

Safety and operating instructions
© Anbaufräsen PC GmbH | 3390 5221 01 | 2020-09-07
Original Instructions
53

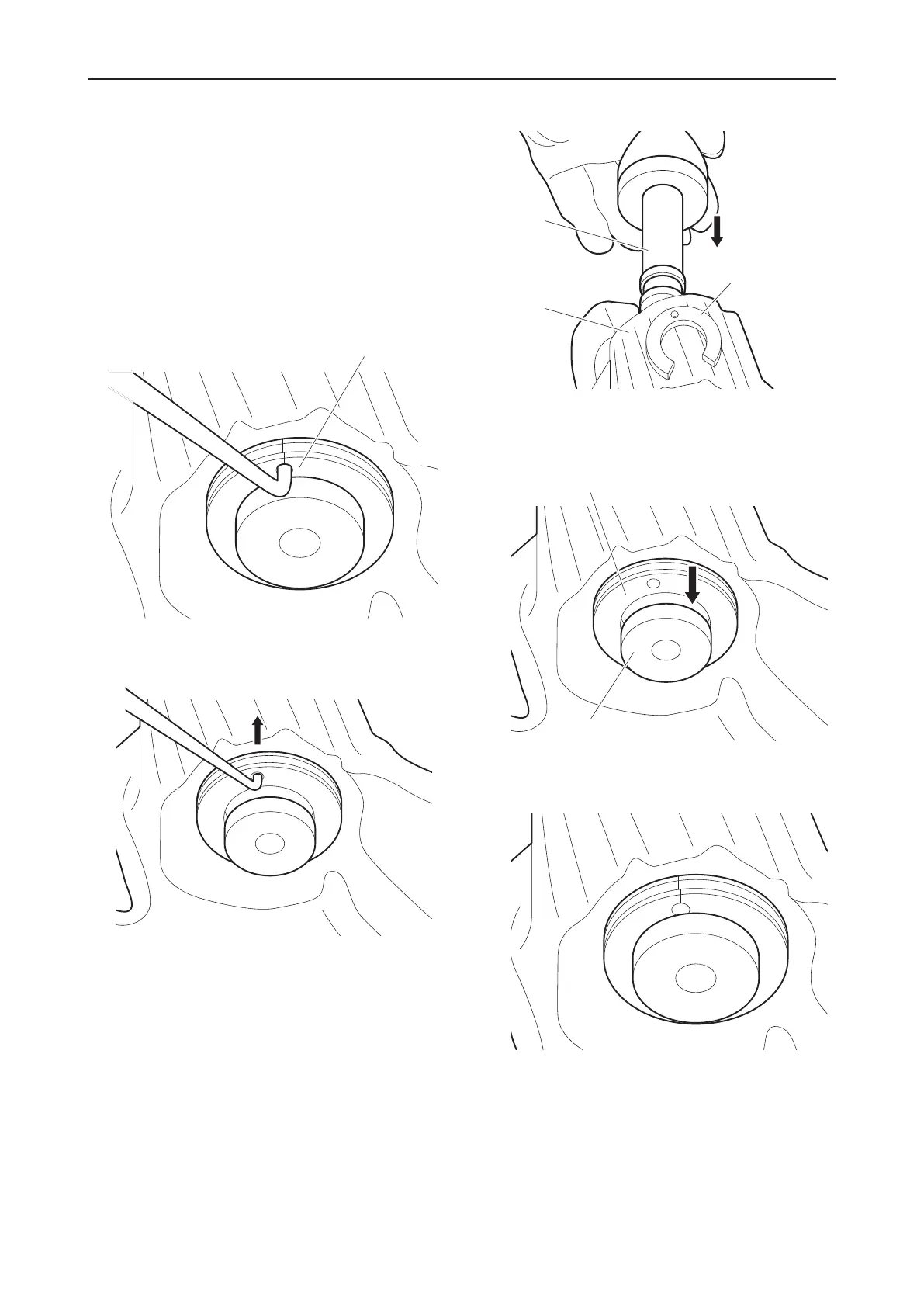

7.10.3 Replace round attack picks with
quick snap retainer
The following special equipment is required to replace
the round attack picks:
• Puller tool for pick with quick snap retainer
The special equipment is included in the scope of deliv-
ery.
1.
Place the curved tip of the puller tool into the hole in
the quick snap ring(I).
I
2.
Grip the puller tool firmly in the hand and pull it up-
wards (see arrow).>
The quick snap retainer loosens from the shaft of the
round attack pick.
3.
Pull round attack pick out of the pick box.
4.
Clean the pick box.
5.
Slide a new round attack pick(J) into the pick box(K)
(see arrow).
I
J
K
6.
Position the new quick snap retainer(I) with the
opening downwards on the shaft of the round attack
pick(J) and apply firm pressure (see arrow).
J
I
The quick snap retainer slides on to the pick shaft
and secures it.
