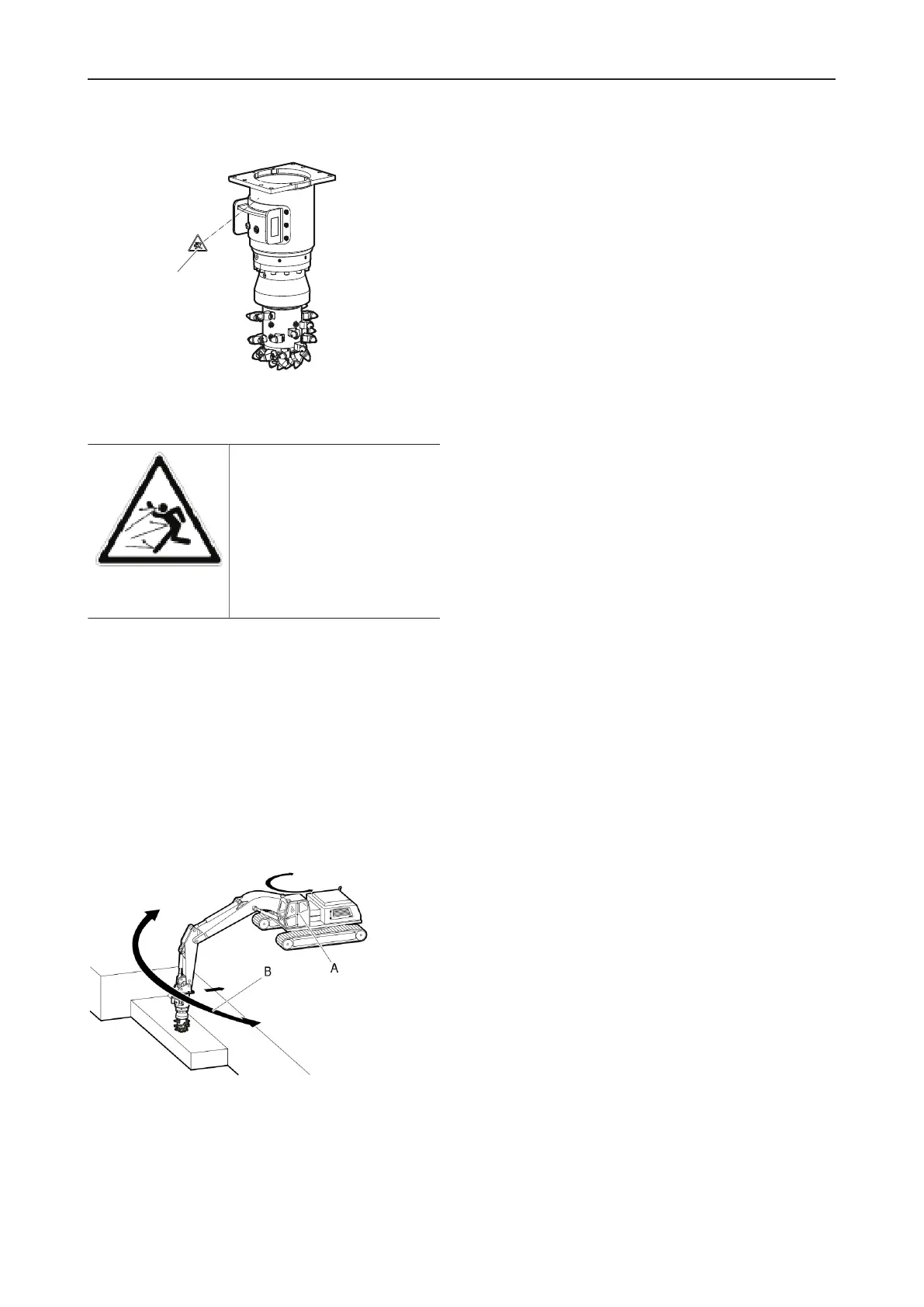

3.4.3 Labels
A. Danger zone
Danger zone
No persons should be within
the danger zone. Fragments of
material which come loose
while operating the hydraulic at-
tachment may be flung away
and can cause serious injury if
people are hit by them. Small
objects falling from a great
height can also cause serious
damage.
3.5 Applications
The drum cutter is suitable for use in trenching and tun-
nelling, for demolition and renovation works, quarrying
and in special underground engineering.
3.6 Working area and hazardous
area
A. Working area for operating personnel
B. Hazardous area when working with the drum cutter
• The working area for the operating personnel is in
the cabin of the carrier.
• The hazardous area is in the direct vicinity of the
drum cutter.
• Whilst operating the drum cutter, the minimum dis-
tance around the carrier is 15m (50ft).
• When cutting reinforced concrete, the minimum dis-
tance around the carrier is 50m (165ft).
3.7 Removing the packaging
n
Remove all the packaging material.
n
Dispose of it in accordance with the applicable provi-
sions.
n
Check that the delivery is complete.
n
Check the delivery for visual damage.
n
If any defects are found, consult the Epiroc Customer
Center / dealer in your area.
3.8 Scope of delivery
The drum cutter is delivered complete with:
• Drum cutter including rotatable upper part
• Safety and operating instructions
• Spare parts list
• EC Declaration of Conformity
• Hoses:
- Pressure line
- Tank line including precharge valve
- Leakage oil line
• Overpressure cover plate including O-ring and
screws
• Set of standard round attack picks including retain-
ers (see table below)
• Set of tools for round attack pick assembly and dis-
assembly (see table below)
