7.10.4 Replace round attack picks with
retaining ring
The following special equipment is required to replace
the round attack picks:
• Long nose pliers, curved

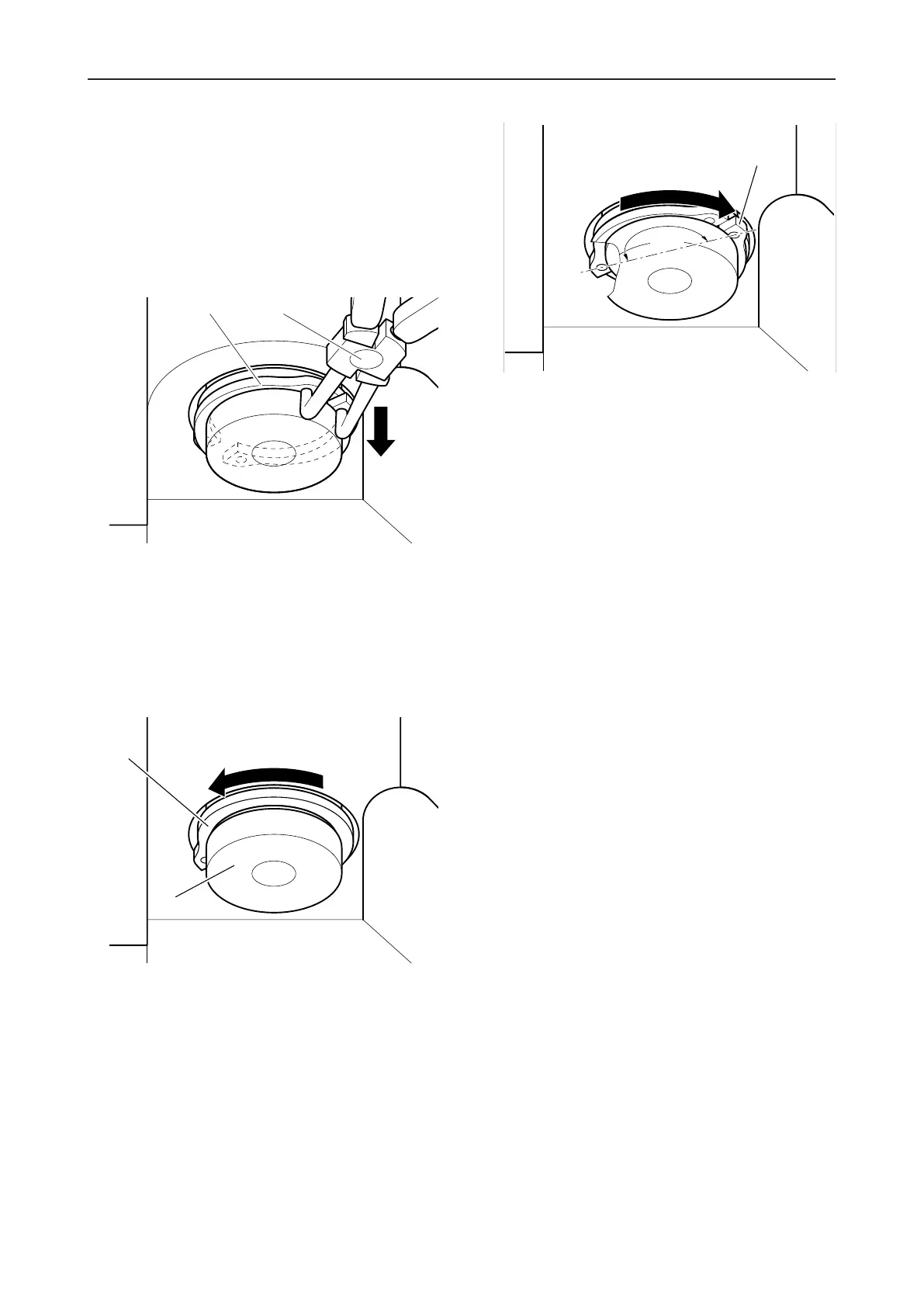

1.
Remove both retaining rings(L) from the pick shaft
one after another using long nose pliers(M).
L M
2.
Pull round attack pick out of the pick box.
3.
Clean the pick box.
4.
Insert a new round attack pick.
5.
Place a new retaining ring(L) on the pick shaft(N)
and rotate the retaining ring opening downwards (ar-
row).
L
N
6.
Attach the second retaining ring(L) and rotate the re-
taining ring opening upward.
180°
L
