Epson SC-F2100 SERIES User Manual

Table Showing the Scale on the Label and the Media
Thickness

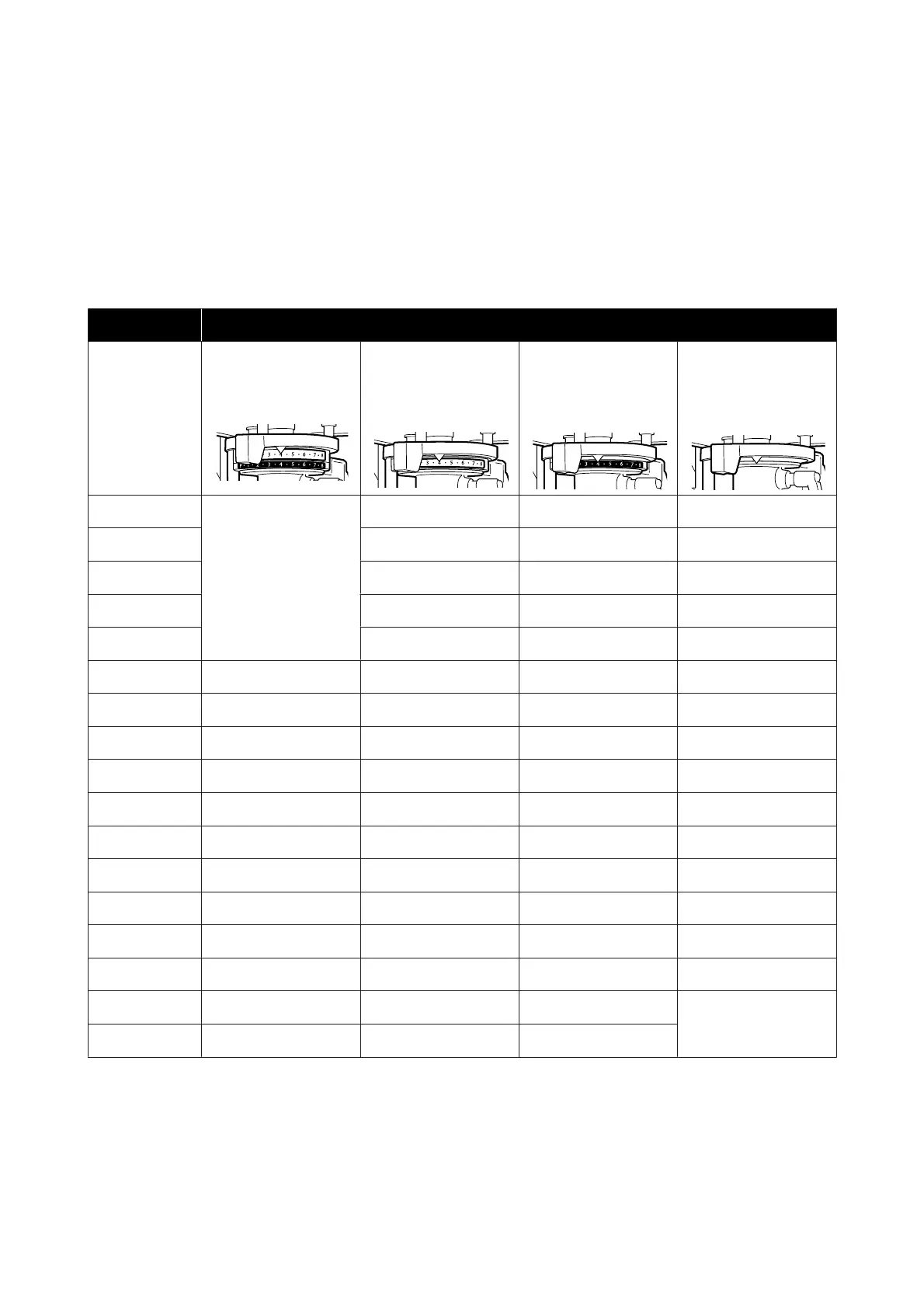

The following table shows the connection between the scale on the label and the approximate media thickness.
When an L, M, or S size grip pad covered platen is installed
Scale on label Spacers and media thickness (mm)
a+b a only
Supports media 6.0 mm
thicker than a + b
b only
Supports media 10.0
mm thicker than a + b
None
Supports media 16.0
mm thicker than a + b
P
<1.0
5.0 9.0 15.0
•
1 6.0 10.0 16.0
•
2 7.0 11.0 17.0
•
3 2.0 8.0 12.0 18.0
•
4 3.0 9.0 13.0 19.0
•
5 4.0 10.0 14.0 20.0
•
6 5.0 11.0 15.0 21.0
•
7 6.0 12.0 16.0 22.0
•
24.0
8 7.0 13.0 17.0
SC-F2100 Series User's Guide
Appendix
120
