3

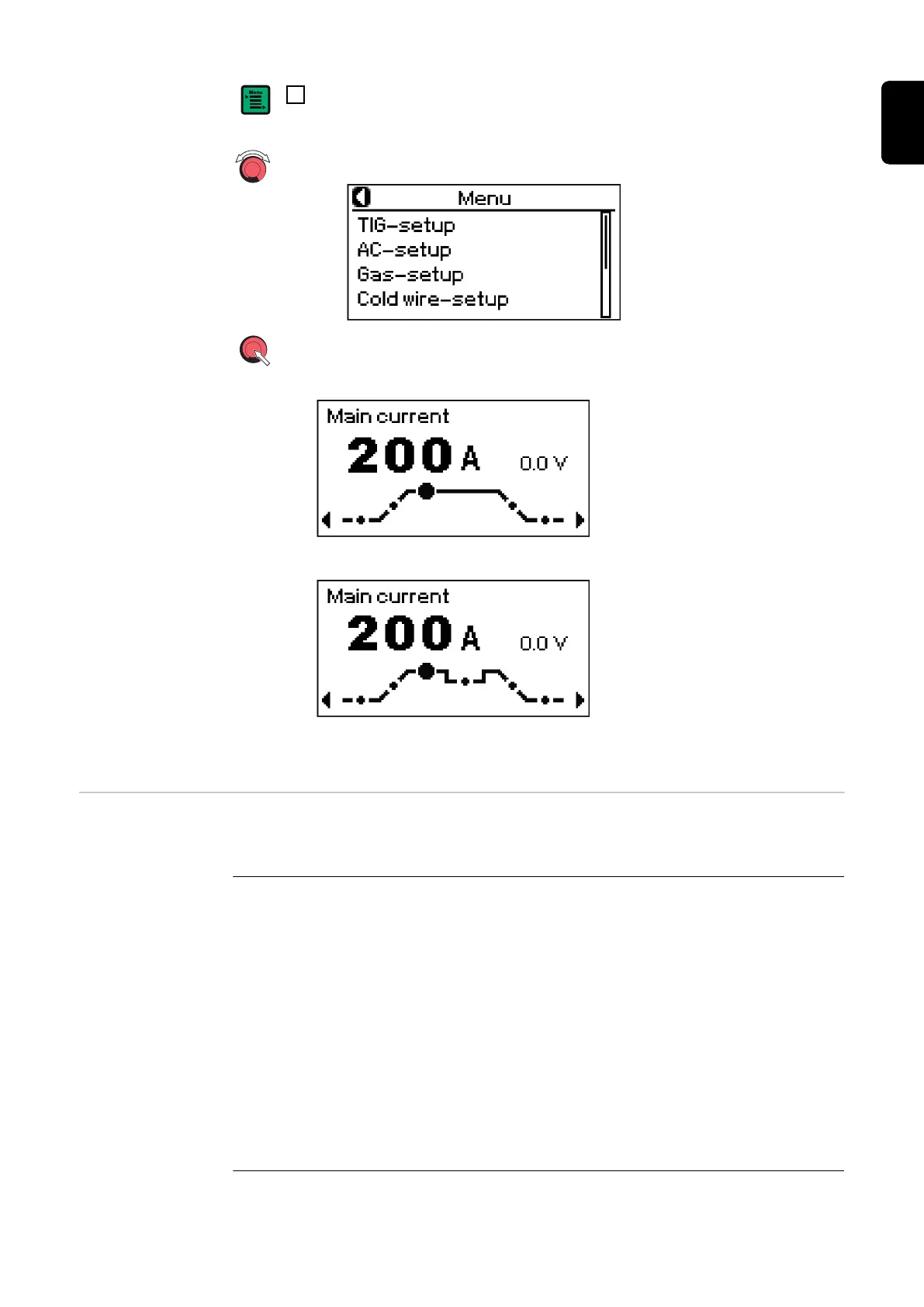

Press Menu key
or
- Select the arrow symbol by turning the adjusting dial
- Press the adjusting dial
The image for the TIG welding parameter is shown:
TIG welding parameters for 2-step mode
TIG welding parameters for 4-step mode
Welding paramet-
ers in AC setup
2nd
"Minimum" and "maximum" are used for setting ranges that differ according to power
source, wire-feed unit, welding program, etc.
Pos half-wave
positive half-wave
Unit -
Setting range Tri / Sin / Rec / Off
Factory setting Sin
Tri Triangular waveform
Sin Sine ... sinusoidal waveform (standard setting for a low-noise,
stable arc)
Rec Rectangular waveform with decreased edge steepness, for
reducing noise levels compared to those that occur with the
100% rectangular waveform
Off 100% rectangular waveform (stable but loud arc)
113
EN
