12.2 FlexLink-Gas Connection
The FlexLink gas connections consist of metal corrugated tubes
that are elastic to ensure that the connection of the gas couplings to
the pole columns is particularly easily possible.
The gas connections are firmly connected to the density monitor
unit on one side. The other side has a filling coupling with check
valve for connection to the pole columns.
FlexLink is available for the standard density monitor unit as well as
for the EasyCheck technology.

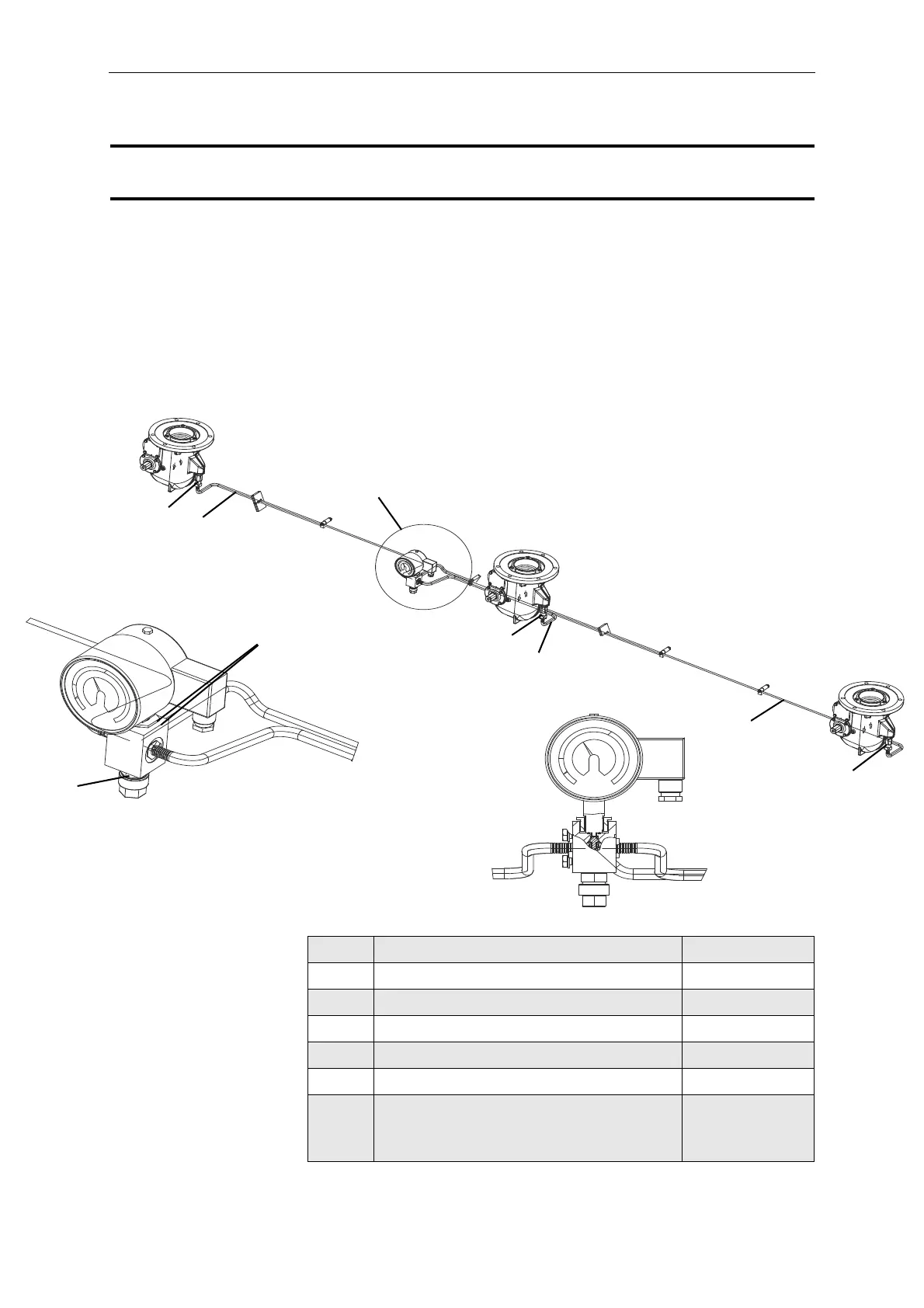

12.2.1 Setup of the FlexLink-Gas Connction
The FlexLink technology makes it particularly easy to couple the
gas connections to the pole columns.
B
1
A
B
2
3
B
D
Left-hand thread
flex_link_gasverrohrung
A
1 FlexLink gas piping pole A 1x
2 FlexLink gas piping pole B 1x
3 FlexLink gas piping pole C 1x
4 Density monitor 1x
B Gas pipe / filler coupling 30 Nm
D Central fill connection / filler block 30 Nm
E Threaded sleeve / filler block 30 Nm
Left-hand
thread
