GE GL 313 F3/4031 P/VR User Manual

RECONDITIONING
REV6 /REV6 OI 248 (EN) 89

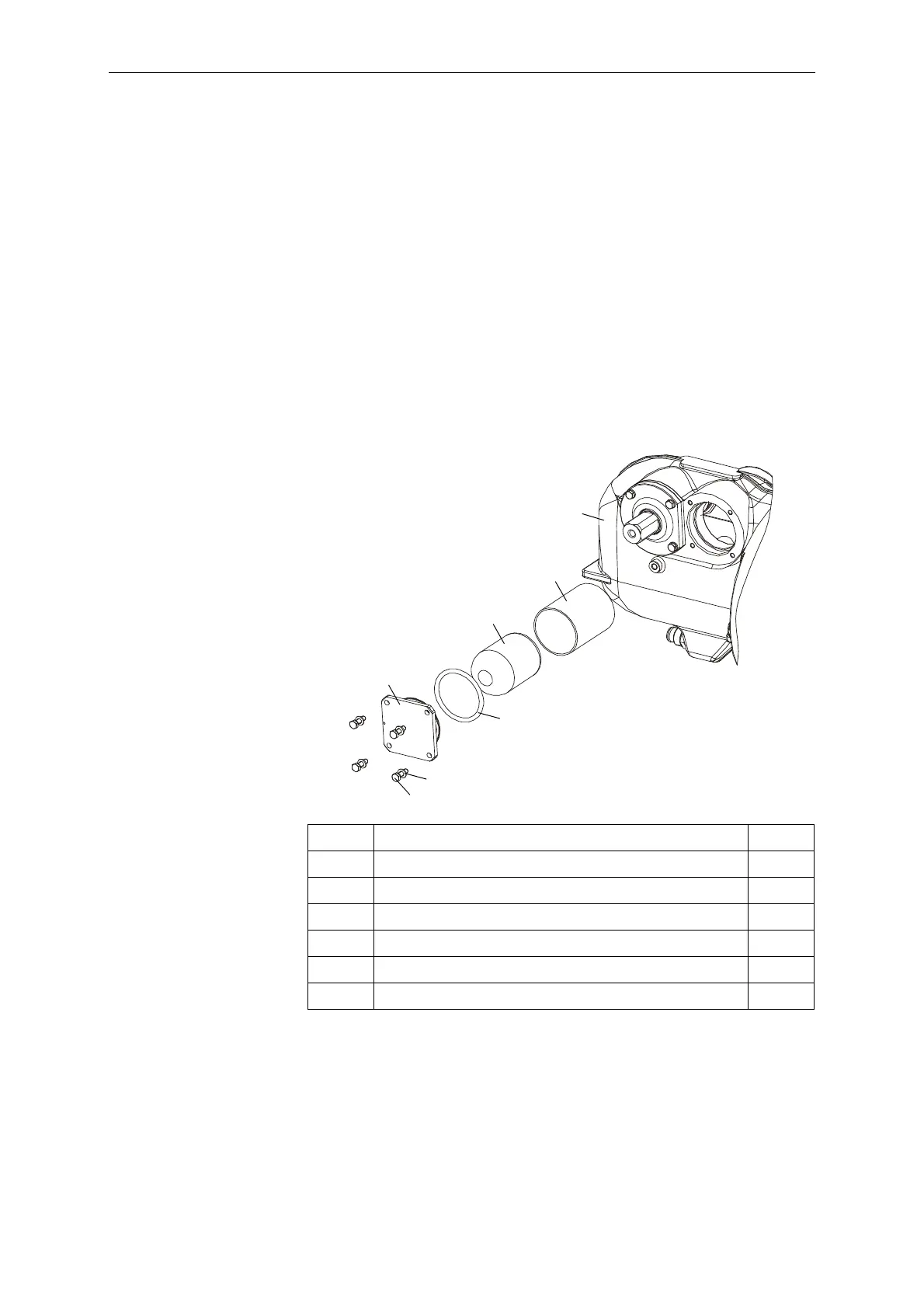

10.1.14 Replacing the Adsorption filter
In some cases, levers of the circuit breaker linkage may cover or
conceal the filter cover. If this is the case, the levers must be remo-
ved and remounted after the adsorption filter is replaced.
• Remove the four screws (62) and the filter cover (47).
• Remove the filter sleeve (48) and filter bag (65) from the
crankcase (37).
• Lubricate the sealing areas per L5.
• Replace the O-ring (59). Before installation, lubricate it per L5.
• Insert a new filter bag in the filter sleeve and slide both into the
crankcase.
• Coat the screws (62) as per L1.
• Replace the filter cover and fasten it with four screws (62).
Tighten to a torque of 7Nm.
37 Crankcase 1x
47 Filter cover 1x
48 Filter sleeve 1x
59 O-ring, 62.87x5.33 1x
62 Hexagon screw, M6x20 A2-70 4x
63 Washer, 6 A2 4x
65 Filter bag 1x
62
59
65
48
47
63
37
BA-P-FILTER
