IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
4-8 Section 4-3 - General Procedure
4-3-5-2 LOGIQ P3 SoftMenu Key Tour
In general, there are two types of NTPUI/SoftMenu keys: Paddle Switch and adjustable knobs.
1.) The Paddle Switch is used to access and adjust the Sub SoftMenu.
2.) Press the adjustable knobs to toggle option menu between line one and line two.
3.) Rotate the adjustable knobs to adjust the corresponding parameters.

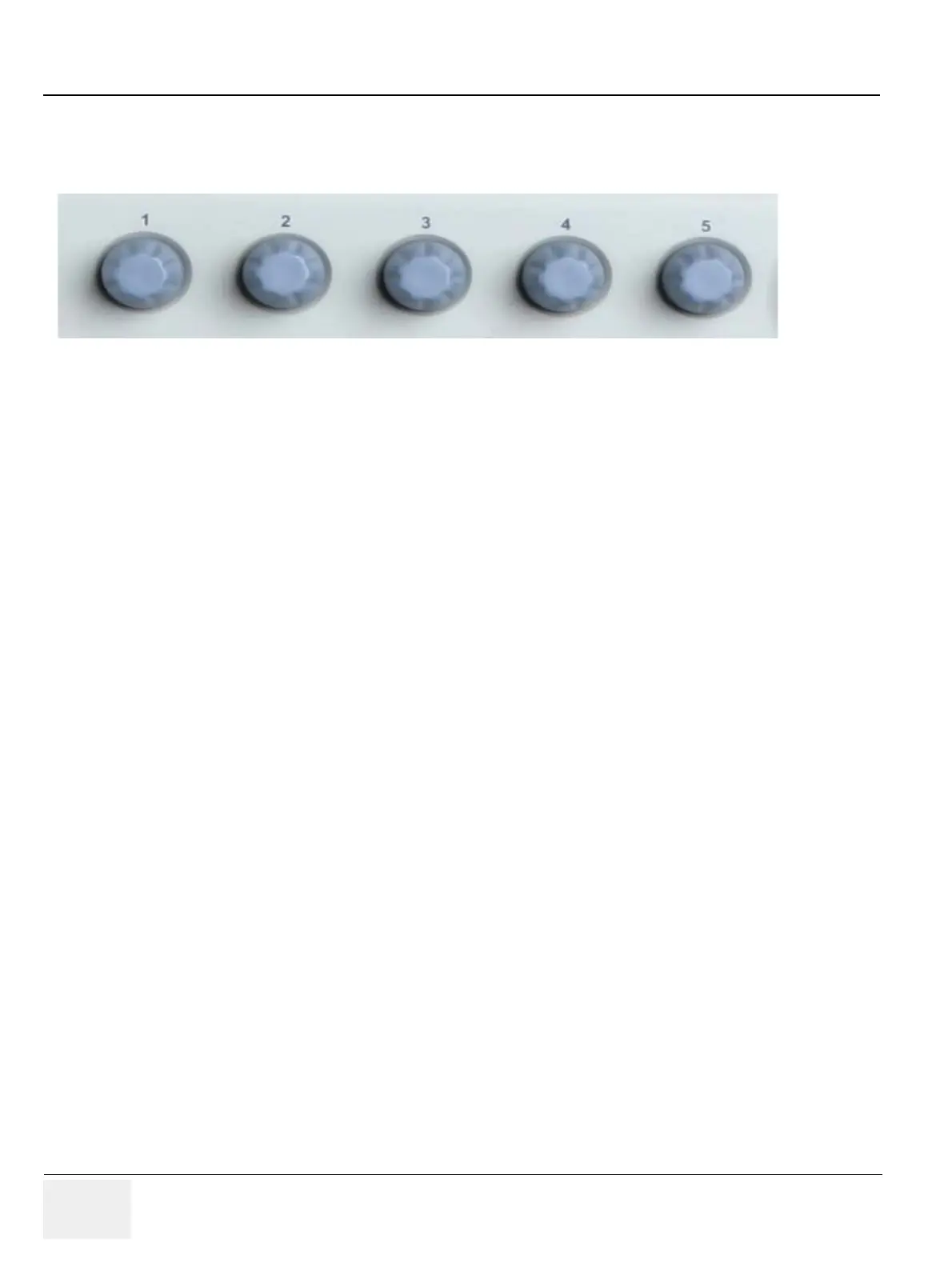

Figure 4-6 SoftMenu Key Tour

GE LOGIQ P3 EXPERT Specifications

General

Brand	GE
Model	LOGIQ P3 EXPERT
Category	Medical Equipment
Language	English
