IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 9 Renewal Parts 9-15
Table 9-6 Signal Cable Set
Section 9-10
USB Cable set

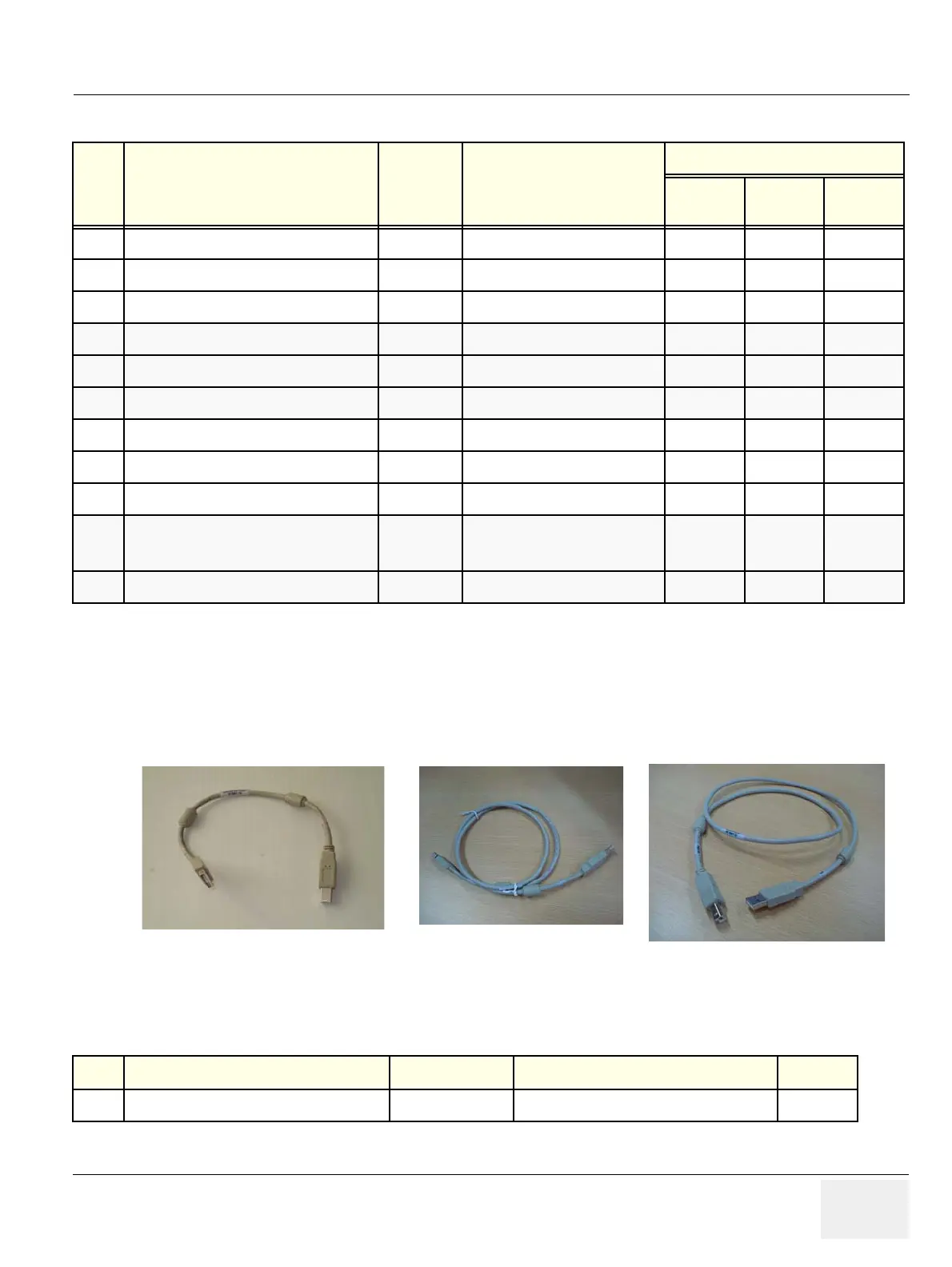

Figure 9-10 USB Cable set
Table 9-7 USB Cable Set
Item Part Name
Part
Number
Description
Compatibility
P3 -
R1.x.x
P3 BT10
R2.x.x
Qty
701 LCD signal Cable 5265925 LCD signal Cable
Yes Yes
1
702 Docking Brd to Speaker 5262402 Docking Board to Speaker
Yes Yes
1
703 SATA signal Cable 5273129 SATA signal Cable
Yes Yes
1
704 Keyboard Ground Cable 5266424 Keyboard Ground Cable
Yes Yes
1
705 TGC Interface Cable 5269755 TGC Interface Cable
Yes Yes
1
706 Track ball 4 pin interface 5268980 Track ball 4 pin interface
Yes Yes
1
707 Track ball 6 pin interface 5264458 Track ball 6 pin interface
Yes Yes
1
708 Encoder PCB 15 pin interface 5267353 Encoder PCB 15 pin interface
Yes Yes
1
709 VGA cable assembly 5342787 VGA cable assembly
No Yes
1
710
Video Interface to MST board Cable
assembly
5342788
Video Interface to MST board
Cable assembly
No Yes
1
711 Ethernet Cable assembly 5342786-1 Ethernet Cable assembly
No Yes
1
Item Part Name Part Number Description Quantity
801 USB cable 5315039 USB Cable 1
801
803
802
