IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-19
8-2-10 Keyboard controller board (FRU P/N: 5454860 - Includes 5402819 plus screws)

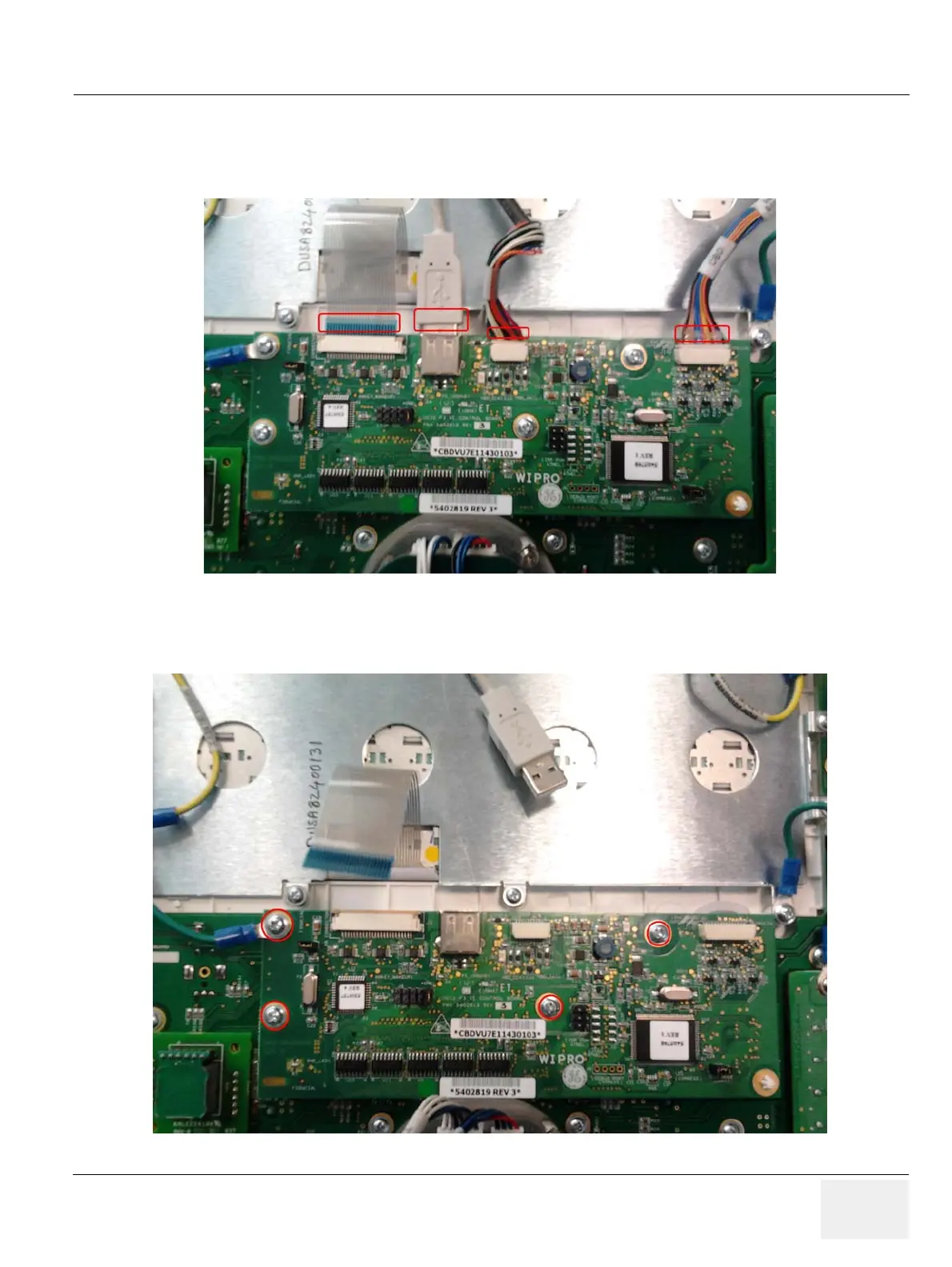

1.) Remove cable connectors shown in the figure below from the controller board (5402819) one after
the other slowly. Please take care while removing cables from the controller board.
Figure 8-19 Cable connectors
2.) Remove the 4 screws from the controller board shown in the figure below.
Figure 8-20 Controller board screws
