GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-31
8-3-2 Keyboard Knob Set (FRU P/N: 5315502 - P3, 5443870 - P3 BT) & Encoder set
(FRU P/N: 5262796 - P3, 5455710 - P3BT)
This is a description on how to remove and replace the Keyboard knob set Assembly.
8-3-2-1 Tools
• Common Torx screwdrivers
NOTE: B Mode Gain Knob Encoder is not a FRU.
8-3-2-2 Needed Manpower
• 1 person, 15 minutes
8-3-2-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-3-2-4 Removal procedure
1) Pull the knobs out with hands by slightly pushing it up from the bottom edge.Refer Figure 8-33 on
page 8-31

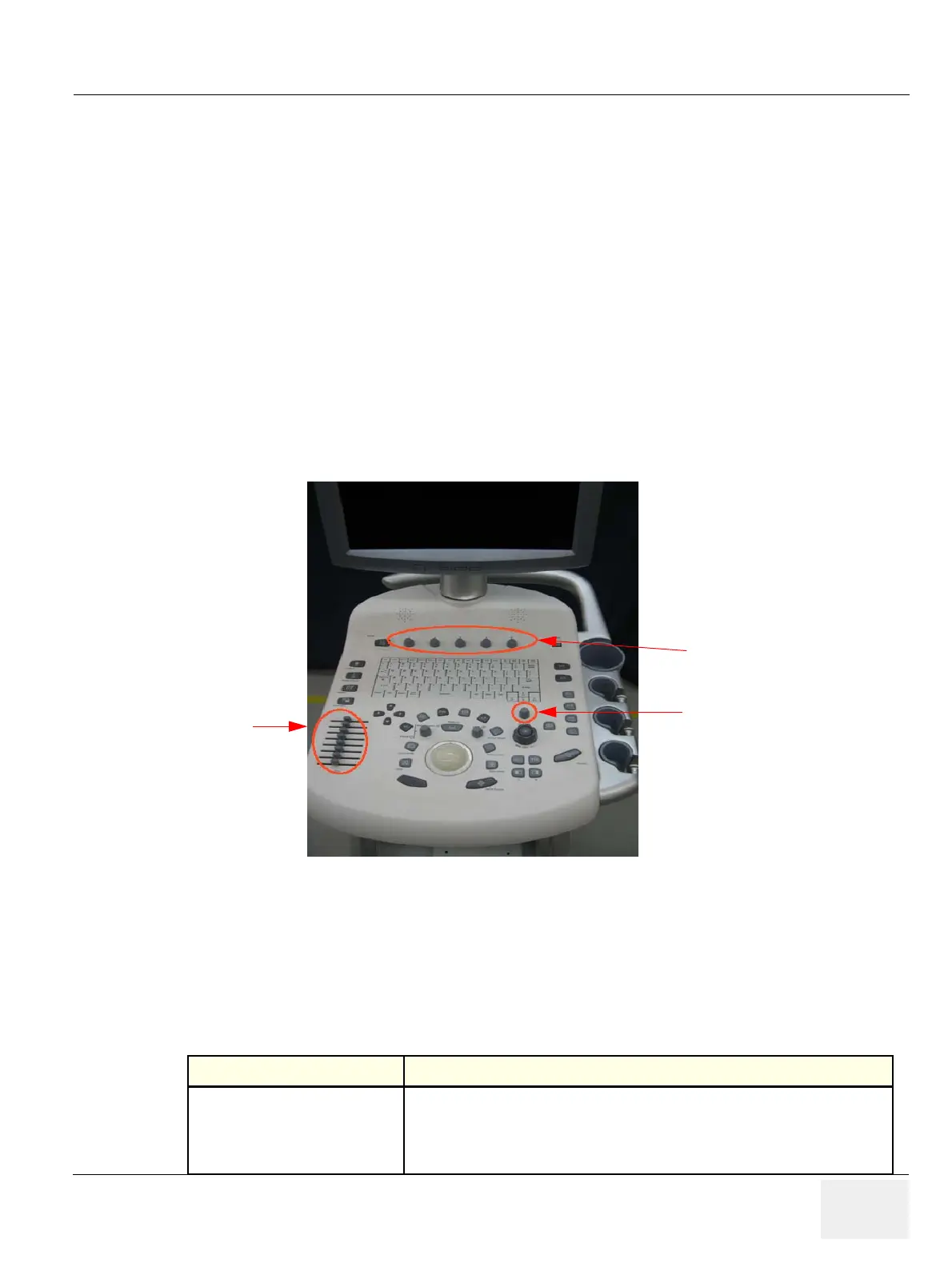

Figure 8-33 Keyboard knob set
8-3-2-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-3-2-6 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-3-3. Equipment passes all required
tests and is ready for use.
Encoder knob
Depth Knob
TGC Knob
