8-34 Section 8-4 - Mechanicals
8-4-2 LH Side Cover (FRU No: 5315114)
This is a description on how to remove and replace the Left Cover.
8-4-2-1 Tools
• Common Torx screwdrivers
8-4-2-2 Needed Manpower
• 1 person, 15 minutes
8-4-2-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-2-4 Removal Procedure
1.) Remove the screw cap of four places (1,2,3,4).
2.) Unscrew 4 screws (1,2,3,4).
3.) Remove the Left cover in the direction as shown in the figure below.

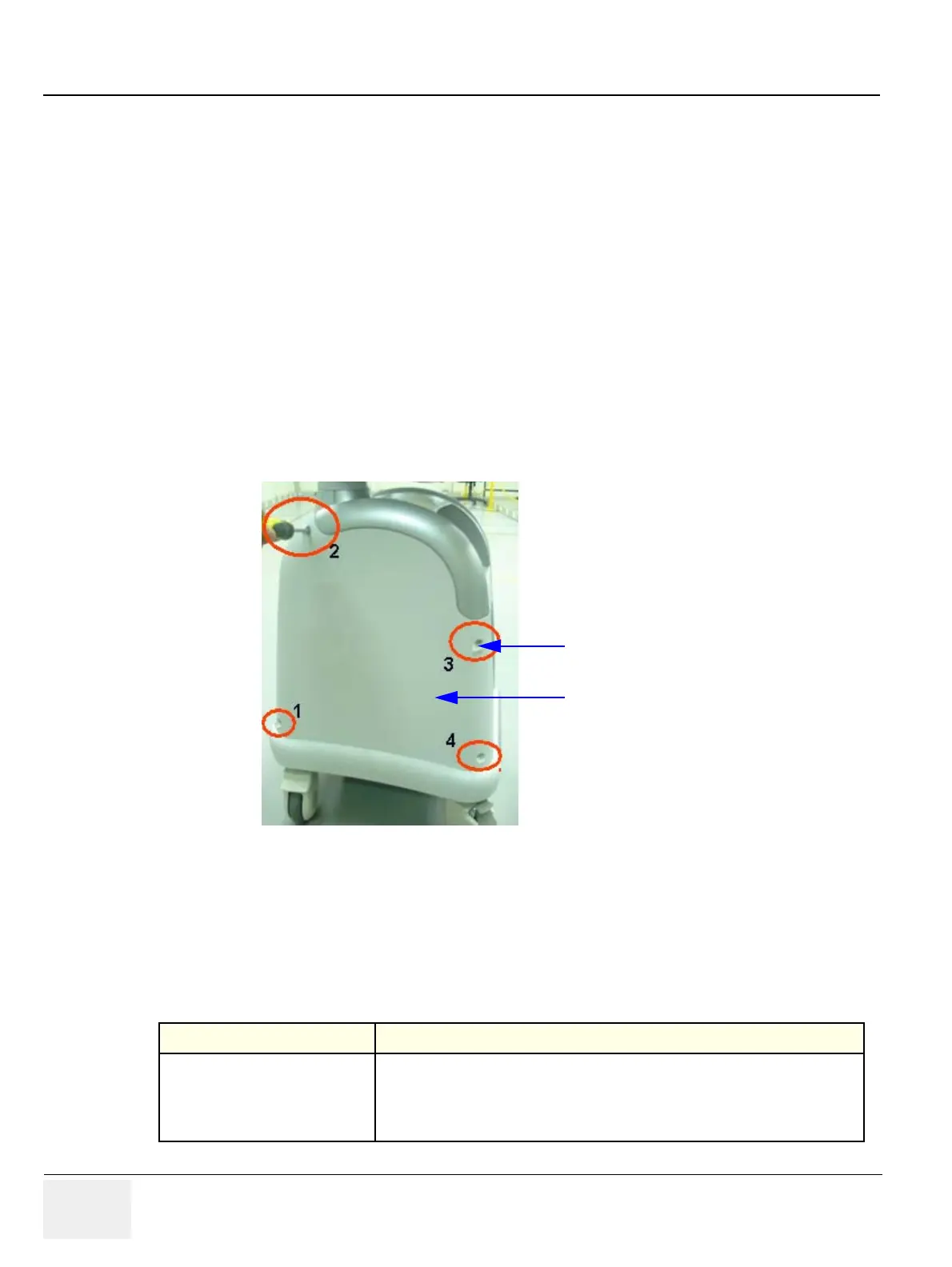

Figure 8-36 Left Cover
8-4-2-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-4-2-6 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-4--2. Equipment passes all required
tests and is ready for use.
