GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-74 Section 8-6 - RX Board (FRU P/N: 5315027)
5) Remove the two flexi cable from TX board as shown below in Figure 8-81 on page 8-74

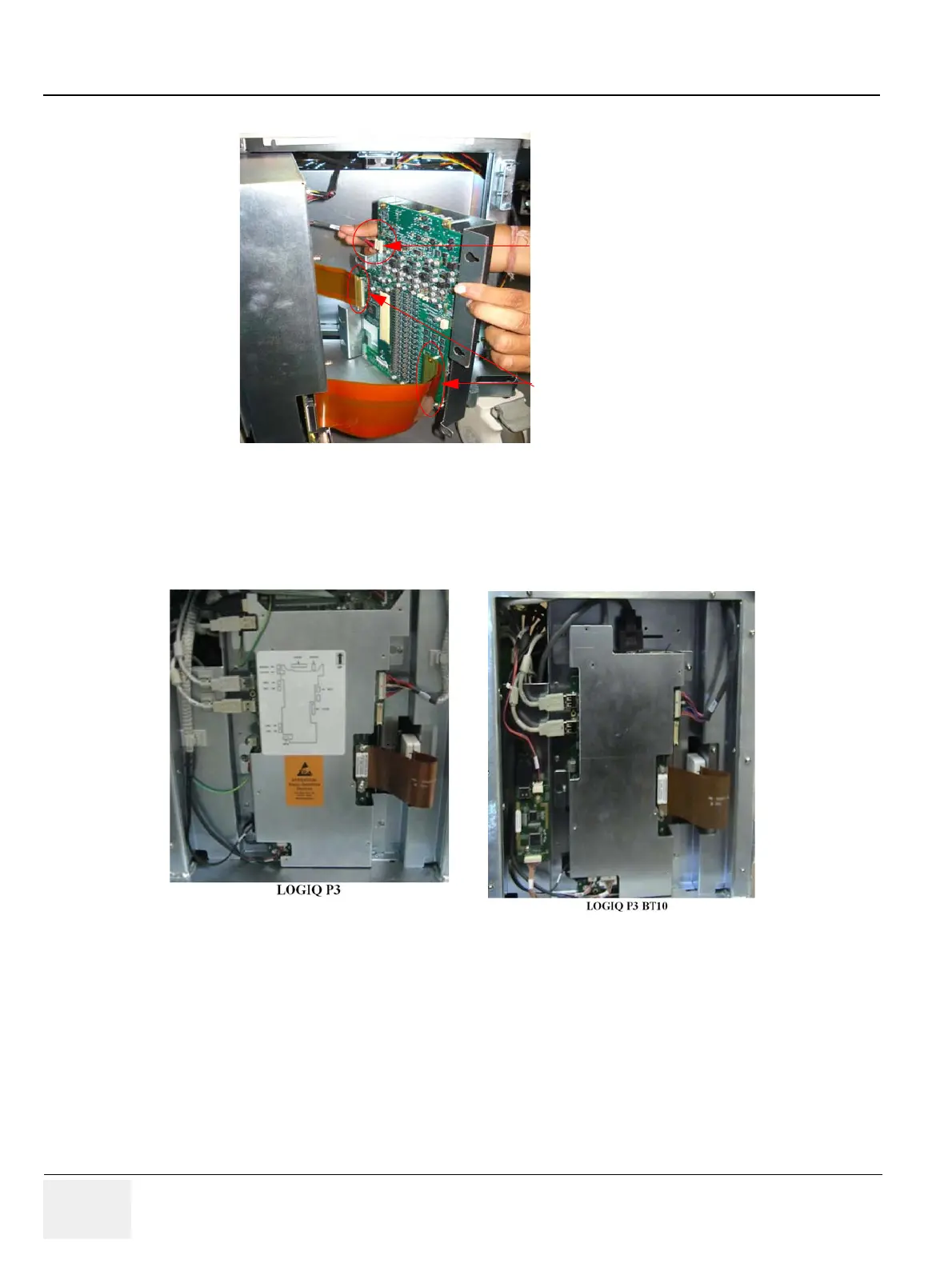

Figure 8-81 Removing TX conn board cable & Flexi cable
6) To Remove the Fex cable remove one side fron connector board & other side on TX PWA.
7) Use screwdriver to remove the screws of MST to TX flexi cable and remove the core. Refer Figure
8-82 on page 8-74
Figure 8-82 Removing Flexi cable of MST board
8-6-1-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
Tx conn board cable
Flexi cable
To Next Page
