Chapter 8 Replacement Procedures 8-53
8-4-11 HARD DISK DRIVE ASSEMBLY ( PART NO:5315113)
8-4-11-1 Tools
• Common Phillips screwdrivers
8-4-11-2 Needed Manpower
• 1person, 15 minutes
8-4-11-3 Preparations
Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system
8-4-11-4 Removal Procedure
1) Remove Right side cover and Right side EMI cover. Refer Section 8-4-8 on page 8-44
2) Loosen the One screw (A) and pull out the hard disk drive assembly as shown in
Figure 8-61 on page 8-53

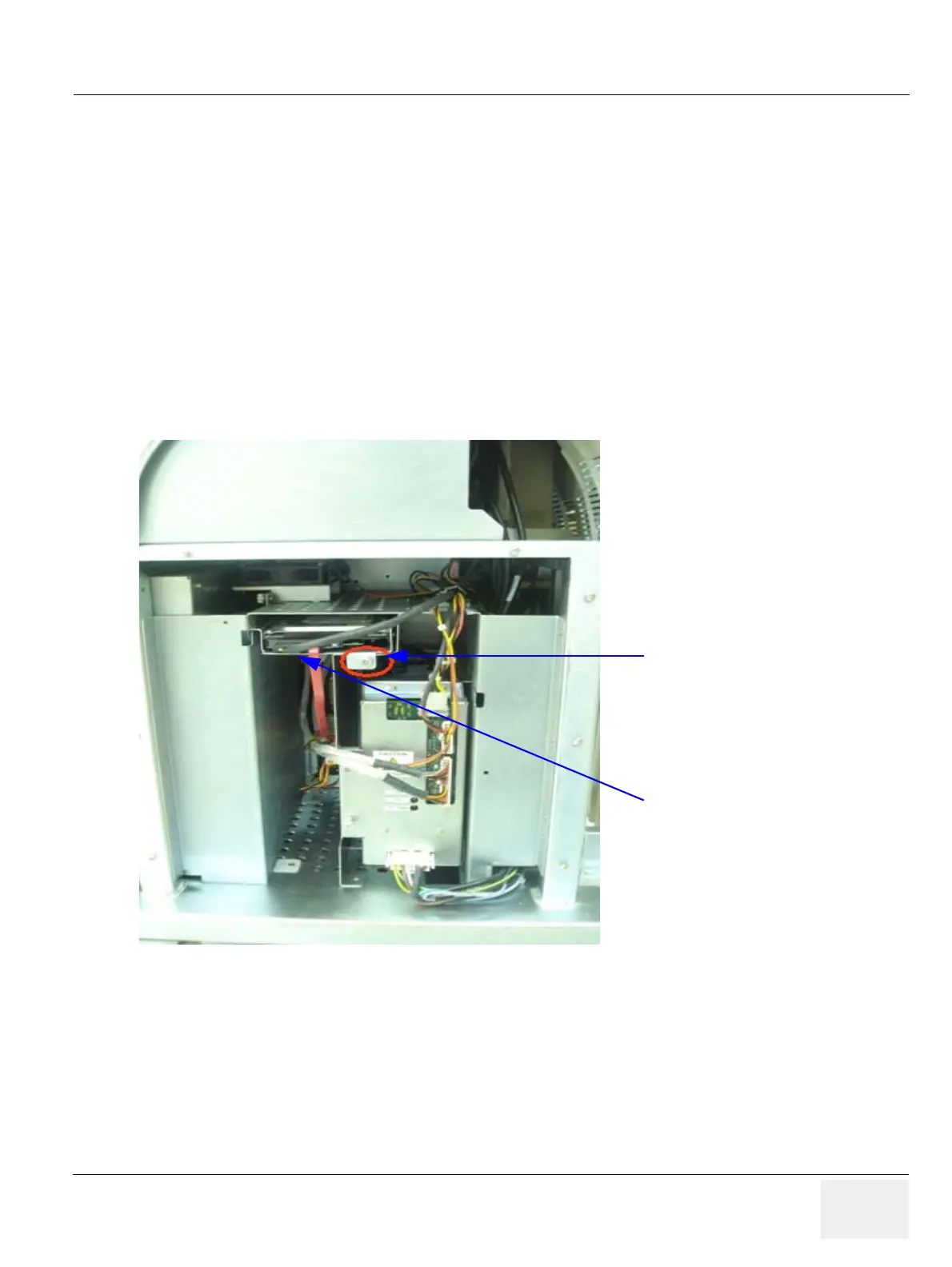

Figure 8-61 Removing Hard Disk Drive Power cable
