GE LOGIQ P3 EXPERT User Manual

GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 9 Renewal Parts 9-13
Section 9-8
Flex PCB Cables
Item Part Name
Part
Number Description
Compatibility
P3 -
R1.x.x
P3 BT10
R2.x.x Qty
501 CWD 5124847 CWD Yes Yes 1
502
Connector Board 2PP
Asm
5314412-3 Connector Board 2PP Asm Yes Yes 1
503
Connector Board 3PP
Asm
5314411-3 Conn_Board_Assy. 3PP Yes Yes 1
504 Sata Hard disk Assy 5315113 SATA Hard Disk Assy (160GB) Yes Yes 1
505 MST 5315025-2 MST Yes No 1
506 MST 5388844-1 MST No Yes 1
507 RX PWA 5315027 RX PWa ASM with Bracket Yes Yes 1
508 TX PWA 2404903-3 TX PWA Yes Yes 1
509 LV & PDB power supply 5315028 LV & Power Distribution Board assy Yes No 1
510
Power Supply Assembly
BT10
5370455 Power Supply Assembly BT10 No Yes 1
PDB_Assy_BT10 5370323 PDB Assembly BT10 No Yes 1
Power supplpy with
screw
5397797 Power supply with screw No Yes 1
511 Video Interface Board 5397507 Video Interface Board No Yes 1
Wiring Diagram Refer Chapter 5 Sec 5-1-9.

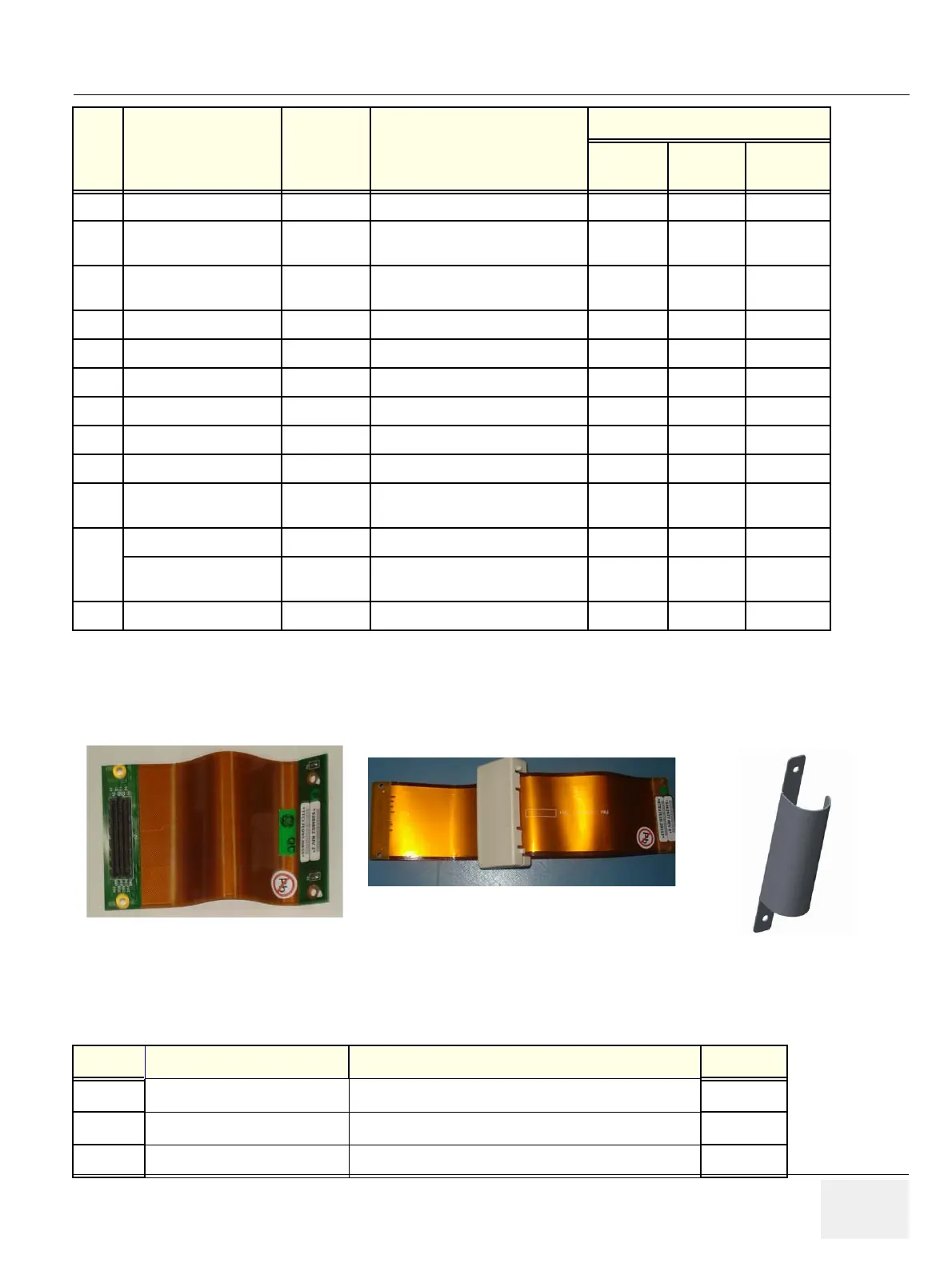

Figure 9-8 Cable Assy
Item Part NUm Description Quantity
601
5315108 Flex Cable (Con to Tx)
1
602
5315109 Flex Cable (MST to TX)
1
603
5458589 Flex Cable sheilding bracket
1
601
602
603
