GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-64 Section 8-5 - USB Cable Set (FRU P/N: 5315039)
8-5-5 Connector Board Assy 3PP (FRU No. 5314411-3) / Connector Board Assy 2PP
(FRUNo. 5314412-3)
This is a description on how to remove and replace the Conn. Board Assy.
8-5-5-1 Tools
• Common Phillips screwdrivers
8-5-5-2 Needed Manpower
• 1 person, 15 minutes
8-5-5-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-5-5-4 Removal Procedure
NOTE: CAUTION
An Electronic discharge may damage a component.turn OFF power and wear the wrist
strap before you remove circuit boards. do not un plug the power card to keep ground continuity.
do not bend or flex the boards when mounting /dismounting each boards surface mount IC boards are
very susceptible to damage from flex/torque.
1) Remove Right cover, Refer section 8-4-1 on page 32 for details on how to remove right cover
2) Remove Left cover, Refer section 8-4-2 on page 34 for details on how to remove right cover
3) Remove Front cover, Refer section Figure 8-40 on page 37 for details on how to remove right cover
4) Loosen Four Screws to remove the connector board and remove the conn board from the
system.Refer .Figure 8-71 on page 8-64 .To open the Hinge Door Loosen knob screw(a) & (B)

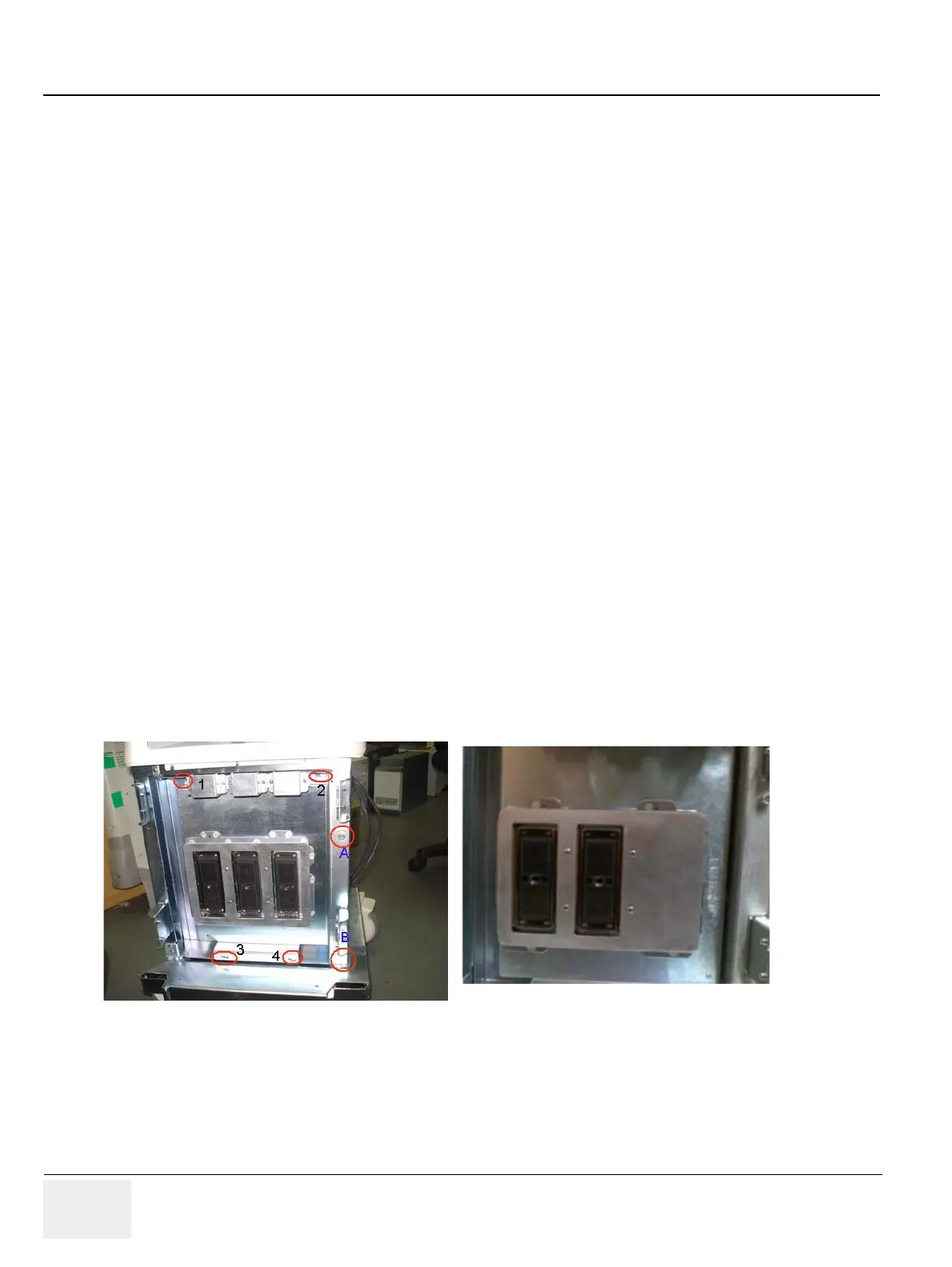

Figure 8-71 Connector Board assembly
3PP Connector Board
2PP Connector Board
