8-2-5 LCD Arm Cover (FRU P/N: 5310093)
This is a description on how to remove and replace the LCD Arm cover set.
8-2-5-1 Tools
• Common Phillips screwdrivers
8-2-5-2 Needed Manpower
• 1 person, 15 minutes
8-2-5-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-2-5-4 Removal procedure
1) Remove LCD Power Cable cover & LCD Signal Cable.
2) Remove LCD Arm cover Assembly .as shown below Figure 8-8 on page 8-8

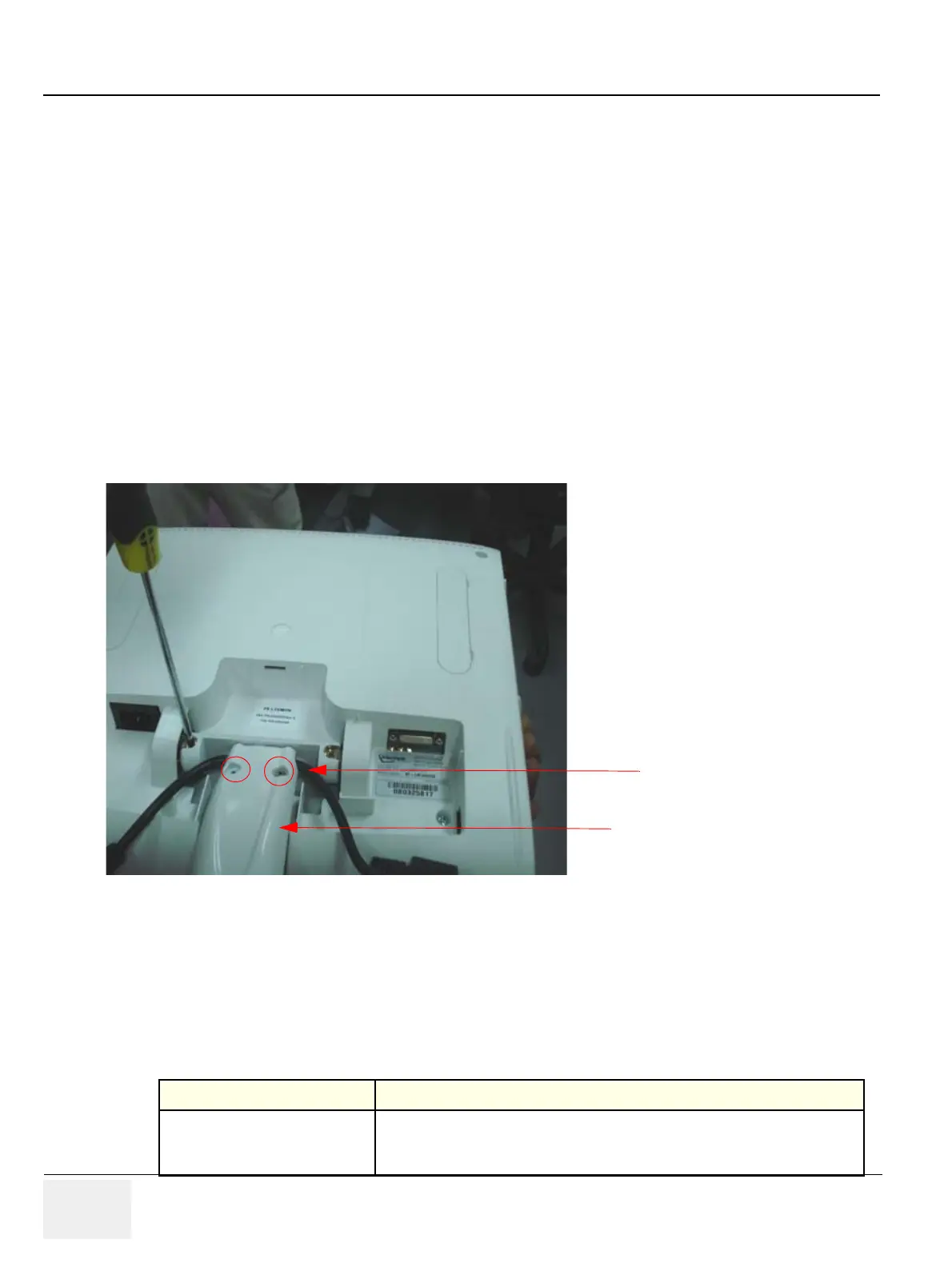

Figure 8-8 LCD Arm cover & monitor neck cover
8-2-5-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
8-2-5-6 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-2-4. Equipment passes all required
tests and is ready for use.
Arm Cover
Remove two screws of
Arm Cover
