5-10 MAC 5500 resting ECG analysis system Revision E
2020299-020
Maintenance: Disassembly Guidelines

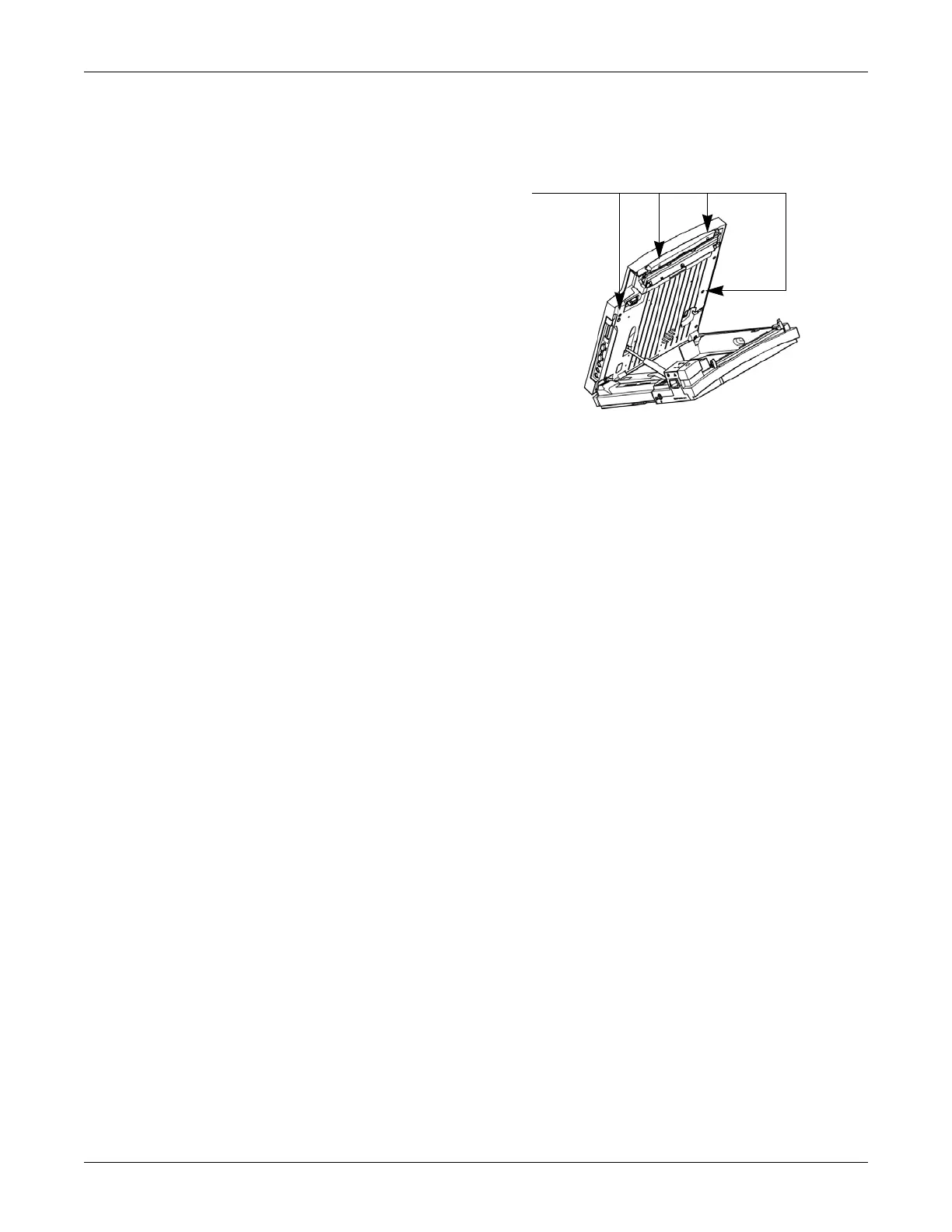

3. Turn the unit right side up and press the internal access button and raise the top
of the unit.
4. Remove four (4) TORX screws.
5. Lower the top of the unit and lock in place.
6. Raise the display to the vertical position.
7. Gently lift the rear of the top cover free from the unit.
NOTE
The top cover holds the bezel that surro
unds the rear panel con
nectors, so
the bezel may fall free at this time.
8. At the front of the top cover, gently pull the thin strip of plastic free from under
the key
board. The entire top assembly is now loose.
NOTE
It may be helpful to rotate the top cover 45
to provide a larger opening to
clear the display.
9. Carefully lift the top assembly up and clear of the raised display.
Reassembly
1. Raise the display to the vertical position.
2. Make sure the bezel surrounding the rear panel connectors
is in place.
3. Lower the top cover down around the display and set in position.
4. Snap the rear of the top cover in place and then, gently pulling on the thin
pla
stic strip at the front of the top cover, position it in place under the keyboard
assembly.
5. Replace the screws removed in disassembly.
