Maintenance: Disassembly Guidelines

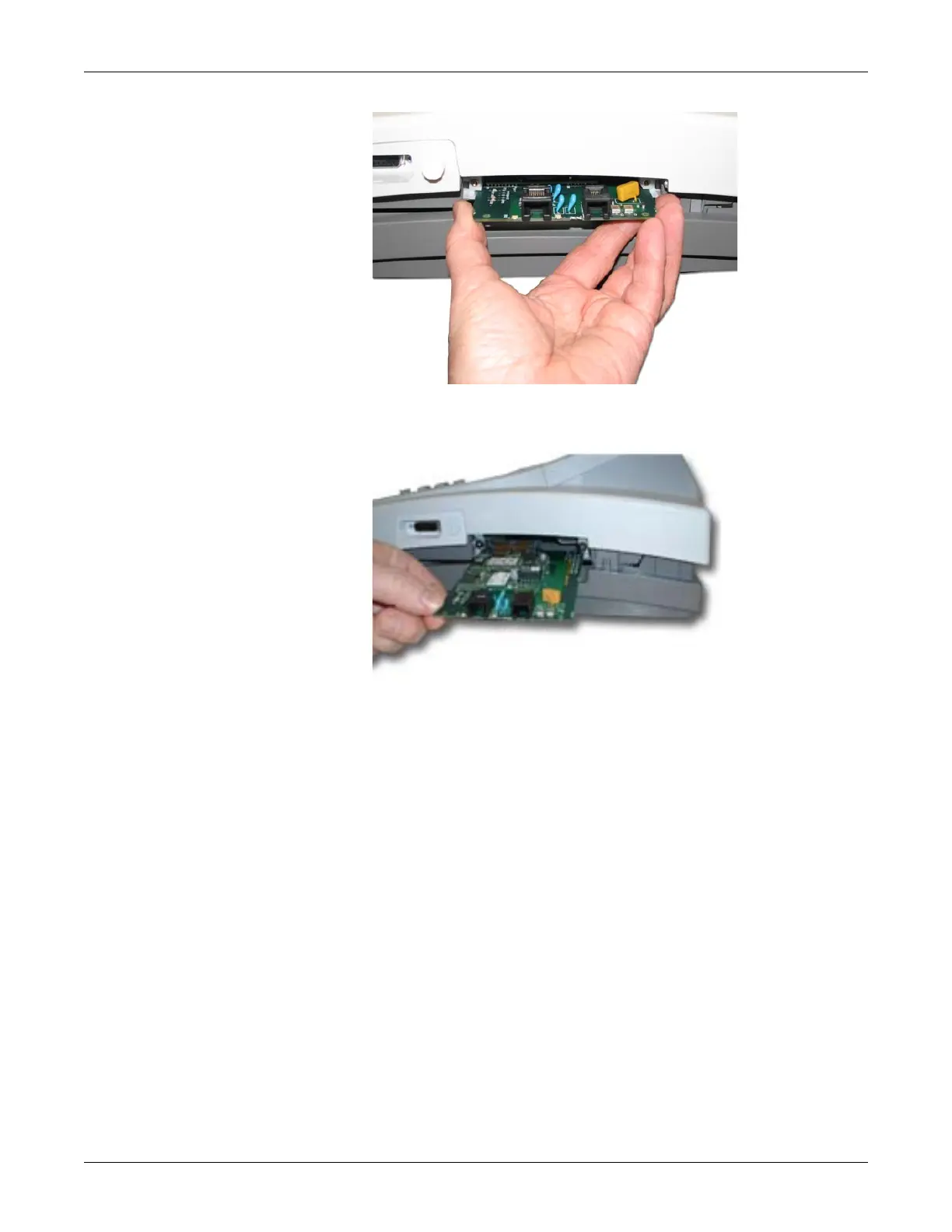

4. Insert the new communications board, sliding it onto the rails until it is seated in
place.
5. Replace the panel surrounding the LAN and modem ports.
6. Replace the battery and AC power cable.
Setting up LAN Communications
After replacing the communications board, use the following procedure to set up the
system's LAN communications.
NOTE:
Acquire the IP address, gateway, and subnet mask from the network
adm
i
nistrator before beginning this process.
1. Power on the MAC system.
2. From the Main Menu, se
lect System Setup.
3. If prompted, enter the system pass
word.
The default password is system.
4. From the System Setu
p menu, select Basic System > Network Setup.
The Network Setup
window opens.
To Next Page
