3-10 MAC 5500 resting ECG analysis system Revision E
2020299-020
Installation: Preparation for Use
Magnetic Card Reader Installation

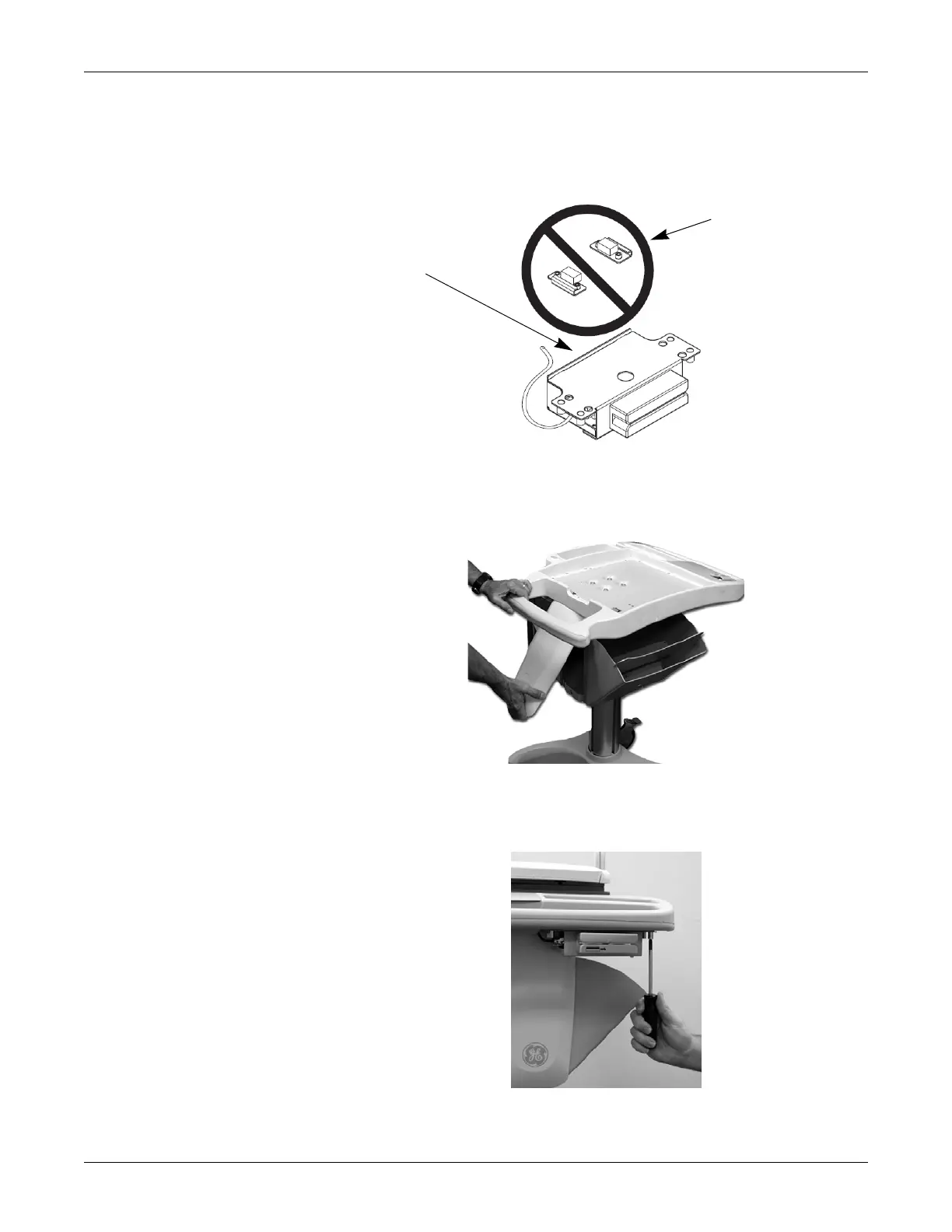

The Magnetic Card Reader and its mounting bracket are assembled and ready to
install on the trolley. Parts are included for two different trolley styles. Disregard
and do not use the parts indicated in the following illustration.
To install the Magnetic Card Reader and its mounting bracket on the trolley,
complete the following steps:
1. Remove both end panels by pulling out and up at the bottom.
2. Using a Phillips screw driver, fasten the card reader asse
mbly under the front
handle. Align with holes provided under front handle.
Card Reader
Assembly
Do Not Use
These Parts
31A
To Next Page
