3-4 MAC 5500 resting ECG analysis system Revision E
2020299-020
Installation: Preparation for Use
Trolley Height Adjustment
The optional MAC 5500 Trolley can be assembled for one of two heights, 92.07 cm
(36.25 inches) or 84.45 cm (33.25 inches). The trolley is normally shipped at the
92.07 cm (36.25 inches) height but can be changed to fit your needs. To change to
the lower height, use the following steps:

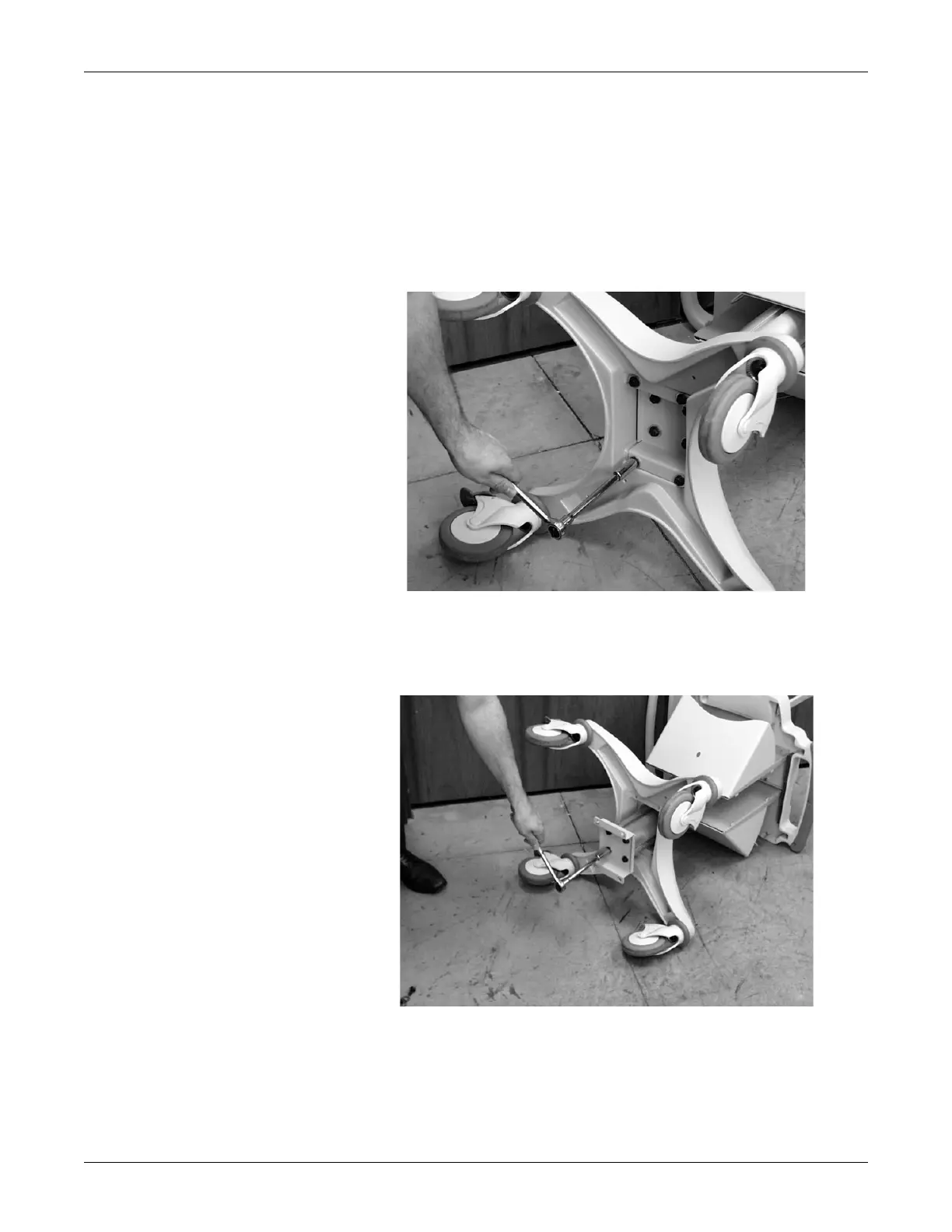

1. Tip the trolley on its side and using a 1/2-inch socket, remove the 4 outer 1/
2-inch
bolts and slide the base assemble up on the column.
2. Remove the remaining bolts and mounting plate.
3. Flip the mounting plate and reverse the procedure.
