GE MAC 5500 Service Manual

3-12 MAC 5500 resting ECG analysis system Revision E
2020299-020
Installation: Preparation for Use

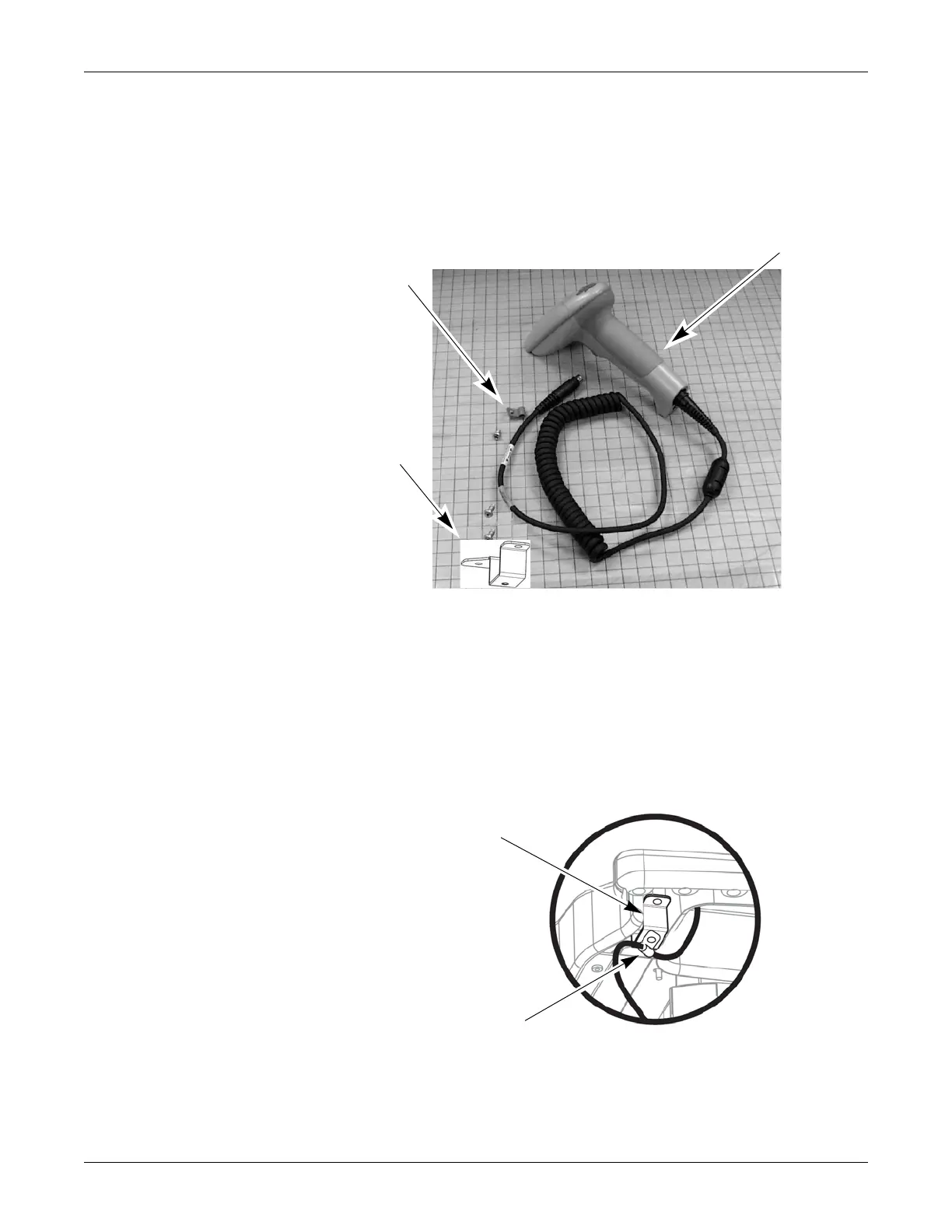

Bar Code Reader Installation
The Bar Code Reader and its mounting bracket are ready to install on the trolley. To
install the Bar Code Reader and its cable mounting bracket on the trolley, complete
the following steps:
1. Fasten the cable clamp bracket to the underside of the rear h
andle using a
Phillips screw driver and the self tapping screws provided.
NOTE
DO NOT overtighten. Overtightening the sc
rew may cause the screw to
strip and clamp to fail.
Cable
Clamp
Cable
Clamp
Bracket
Barcode
Reader
71A, 72A
Cable
Clamp
Cable
Clamp
Bracket
73A
