4-26
MAC
5500 resting ECG anal
ysis system
Revision E
2020299-020
T
roubleshooting:
Input and Output Connectors

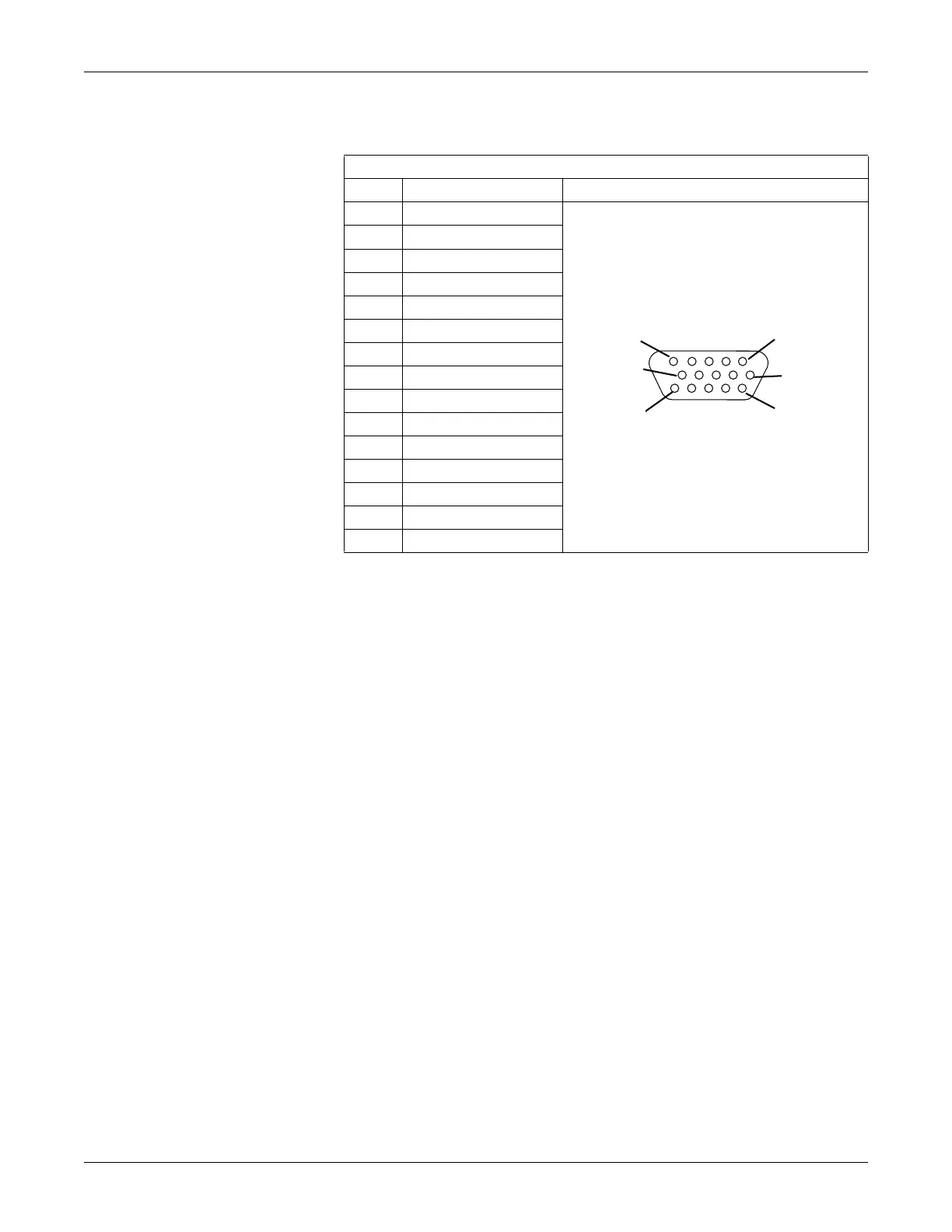

EXT. VID. Pins (J7)
Table 6. External VGA Video (J7)
Pin
Name
1
Red Video
2
Green Video
3
Blue Video
4
Ground
5
Ground
6
Ground
7
Ground
8
Ground
9
NC
10
Ground
11
Ground
12
NC
13
Horizontal Sync
14
Vertical Sync
15
NC
1
6
15
5
11
10
68A
97
99
