2-4 MAC™ 800 2031504-159D
Equipment Overview
Keypad

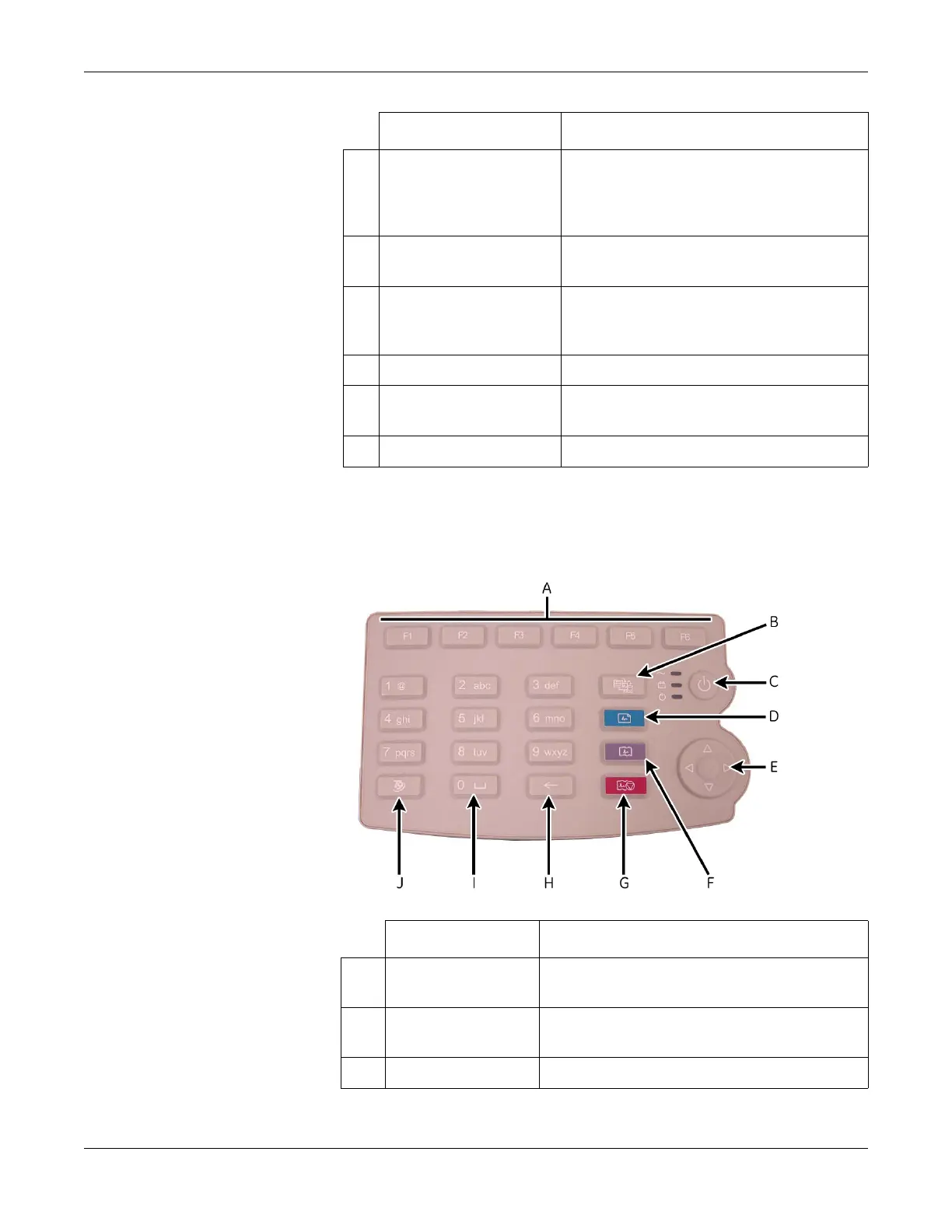

The English keypad is shown in the following illustration.
B LAN port Standard RJ-45 jack for connecting the device to a
LAN. LEDs on the port indicate status.
Solid green indicates a good connection.
Flashing amber indicates network traffic.
C USB port Universal Serial Bus port used to connect external
devices, such as the optional barcode reader.
D COMM port Serial port for data communication. Use a serial
cable to connect the unit to a CASE/Cardiosoft or
MUSE system.
E Main AC power connector Connects the unit to an AC power outlet.
F Equipotential grounding lug Grounded connector for attaching non-grounded
peripheral devices to ensure equipotentiality.
G Carry handle Retractable handle for carrying the unit.
Name Description
Name Description
A Function Keys
(F1 through F6)
Selects menu options on the screen.
B Leads key Changes the leads when the screen is being used to
display waveforms.
C Power Button Turns the unit on and off.
To Next Page
