3-24 MAC™ 800 2031504-159D
Troubleshooting
4. Select which type of ECG report you want to change from 10s ECG
Report Format list:
5. Select the number of copies you want from Report Copies list.
6. If you want the MAC 800 or 12SL Interpretation included on the
ECG, check the Print Interpretation check box.
7. If you do not want the MAC 800 interpretation to print on the ECG,
clear the Print Interpretation check box.
8. Press F6 to save the setup.
Editing
Q: Can you edit the interpretation at the MAC 800, and then transmit
the edited record to the MUSE system as an unconfirmed record?
A: MAC 800 does not support edit interpretation.
Navigating the User Interface
Q: How do I navigate from the startup screen to the Main Menu?
A: The MAC 800 system can be configured in a number of different
ways. Some of these configuration choices determine the actions that
need to be performed in order to proceed from the power up display to the
Main Menu.
There are three configurations that determine the initial window that
appears at power up and what actions the user will need to perform to
navigate to the Main Menu.

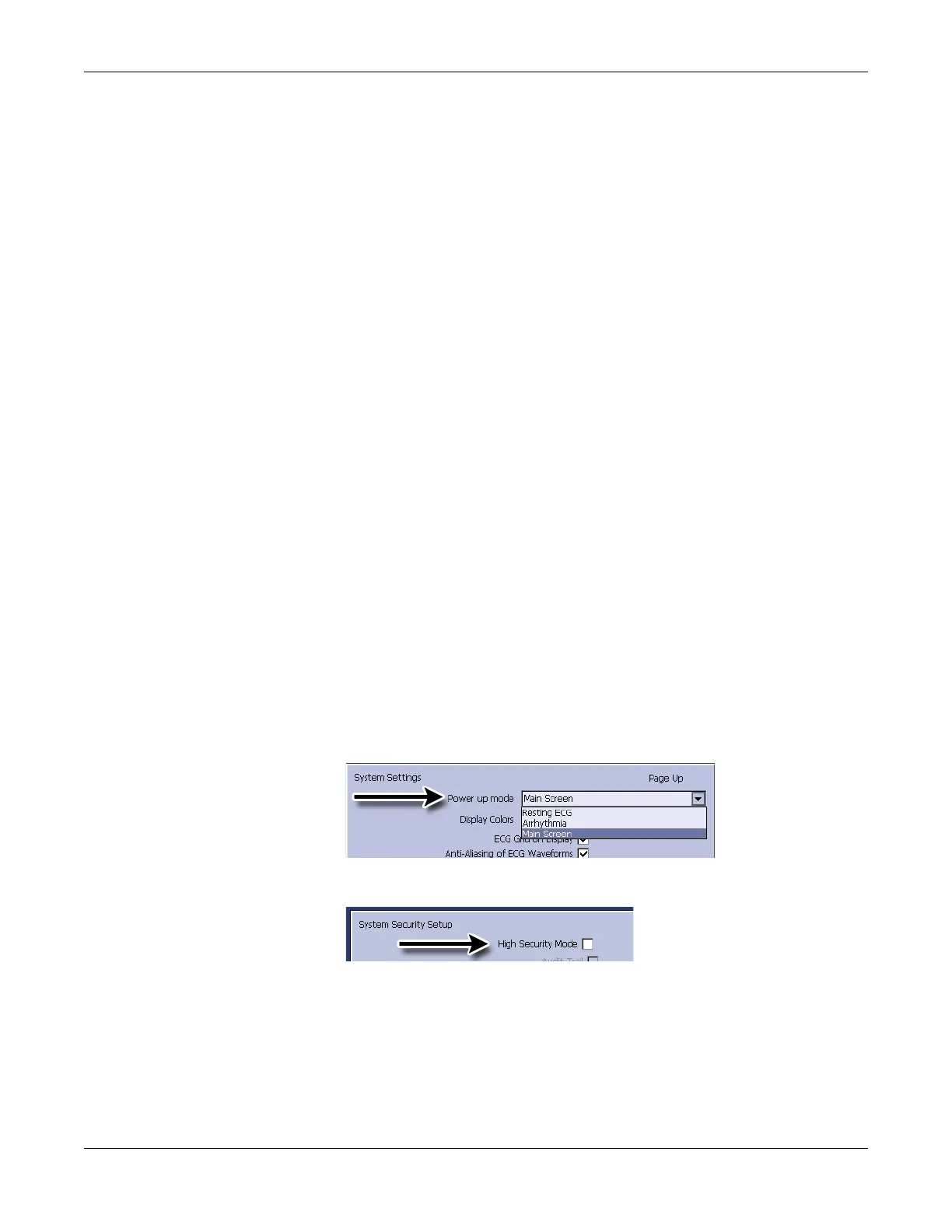

Power Up mode currently selected in Basic Setup:
High Security mode enabled in Basic Setup:
USB Barcode Reader support option activated - yes or no.
To Next Page
